Actuators and indicators, 22 mm, metal, shiny Parts

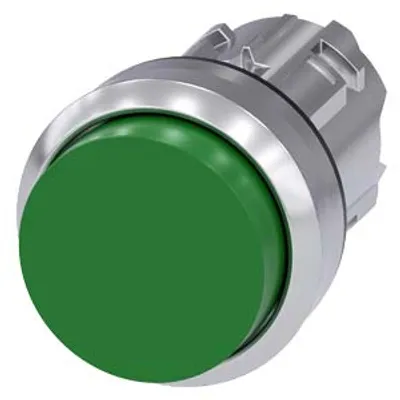

Siemens 3SU1050-0BB40-0AA0-Z Y15 – Pushbutton, 22 mm, round, metal, shiny, green, pushbutton, raised momentary contact type, with laser labeling

Siemens

3SU1050-0BB40-0AA0-Z Y15

Pushbutton, 22 mm, round, metal, shiny, green, pushbutton

Siemens 3SU1050-0BB40-0AA0-Z Y13 – Pushbutton, 22 mm, round, metal, shiny, green, pushbutton, raised momentary contact type, with laser labeling

Siemens

3SU1050-0BB40-0AA0-Z Y13

Pushbutton, 22 mm, round, metal, shiny, green, pushbutton

Siemens 3SU1050-0BB40-0AA0-Z Y12 – Pushbutton, 22 mm, round, metal, shiny, green, pushbutton, raised momentary contact type, with laser labeling

Siemens

3SU1050-0BB40-0AA0-Z Y12

Pushbutton, 22 mm, round, metal, shiny, green, pushbutton

Siemens 3SU1051-6AA00-0AA0-Z Y11 – Indicator lights, 22 mm, round, metal, shiny, amber, lens, smooth, with laser labeling, upper case

Siemens

3SU1051-6AA00-0AA0-Z Y11

Indicator lights, 22 mm, round, metal, shiny, amber, lens

Siemens 3SU1051-6AA00-0AA0-Z Y10 – Indicator light, 22 mm, round, metal, shiny, amber, lens, smooth, with laser labeling

Siemens

3SU1051-6AA00-0AA0-Z Y10

Indicator light, 22 mm, round, metal, shiny, amber, lens

Siemens 3SU1051-6AA00-0AA0-Z X90 – Indicator lights, 22 mm, round, metal, shiny, amber, lens, smooth, Z=100-unit packaging

Siemens

3SU1051-6AA00-0AA0-Z X90

Indicator lights, 22 mm, round, metal, shiny, amber, lens

Siemens 3SU1050-5PF01-0AA0-Z Y11 – Siemens keyswitch, B, 22 mm, round, metal, shiny, lock number S1, with 2 keys, 2 switch positions O-I

Siemens

3SU1050-5PF01-0AA0-Z Y11

Keyswitch, B, 22 mm, round, metal, shiny

Siemens 3SU1050-5LF11-0AA0-Z X90 – Siemens keyswitch, C, 22 mm, round, metal, shiny, lock number STGH10, with 2 keys, 2 switch positions O-I

Siemens

3SU1050-5LF11-0AA0-Z X90

Keyswitch, C, 22 mm, round, metal, shiny

Siemens 3SU1050-5LF11-0AA0 – Siemens keyswitch, C, 22 mm, round, metal, shiny, lock number STGH10, with 2 keys, 2 switch positions O-I

Siemens

3SU1050-5LF11-0AA0

Keyswitch, C, 22 mm, round, metal, shiny

Siemens 3SU1050-5LC01-0AA0-Z Y19 – Siemens keyswitch, C, 22 mm, round, metal, shiny, lock number STGH10, with 2 keys, 2 switch positions O

Siemens

3SU1050-5LC01-0AA0-Z Y19

Keyswitch, C, 22 mm, round, metal, shiny

Siemens 3SU1050-5LC01-0AA0-Z Y15 – Siemens keyswitch, C, 22 mm, round, metal, shiny, lock number STGH10, with 2 keys, 2 switch positions O

Siemens

3SU1050-5LC01-0AA0-Z Y15

Keyswitch, C, 22 mm, round, metal, shiny

Siemens 3SU1050-5LC01-0AA0-Z Y12 – Siemens keyswitch, C, 22 mm, round, metal, shiny, lock number STGH10, with 2 keys, 2 switch positions O

Siemens

3SU1050-5LC01-0AA0-Z Y12

Keyswitch, C, 22 mm, round, metal, shiny

Siemens 3SU1050-5LC01-0AA0-Z Y11 – Siemens keyswitch, C, 22 mm, round, metal, shiny, lock number STGH10, with 2 keys, 2 switch positions O

Siemens

3SU1050-5LC01-0AA0-Z Y11

Keyswitch, C, 22 mm, round, metal, shiny

Siemens 3SU1050-5LC01-0AA0-Z Y10 – Siemens keyswitch, C, 22 mm, round, metal, shiny, lock number STGH10, with 2 keys, 2 switch positions O

Siemens

3SU1050-5LC01-0AA0-Z Y10

Keyswitch, C, 22 mm, round, metal, shiny

Siemens 3SU1050-5TF01-0AA0-Z Y15 – Siemens keyswitch, B, 22 mm, round, metal, shiny, lock number E9 (VW), without key, 2 switch positions O-I

Siemens

3SU1050-5TF01-0AA0-Z Y15

Keyswitch, B, 22 mm, round, metal, shiny

Siemens 3SU1156-6AA40-3AA0-Z Y19 – Indicator lights, 22 mm, round, Metal, shiny, green, lens, smooth, with holder

Siemens

3SU1156-6AA40-3AA0-Z Y19

Indicator lights, 22 mm, round, Metal, shiny, green, lens

Siemens 3SU1156-6AA40-3AA0-Z Y15 – Indicator lights, 22 mm, round, Metal, shiny, green, lens, smooth, with holder

Siemens

3SU1156-6AA40-3AA0-Z Y15

Indicator lights, 22 mm, round, Metal, shiny, green, lens

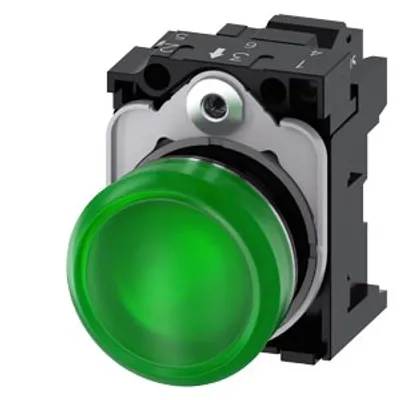

Siemens 3SU1156-6AA40-3AA0-Z Y13 – Indicator lights, 22 mm, round, Metal, shiny, green, lens, smooth, with holder

Siemens

3SU1156-6AA40-3AA0-Z Y13

Indicator lights, 22 mm, round, Metal, shiny, green, lens

Siemens 3SU1150-0AB30-1FA0-Z Y13 – Pushbutton, 22 mm, round, metal, shiny, yellow, pushbutton, flat, momentary contact type, 1 NO+1 NC

Siemens

3SU1150-0AB30-1FA0-Z Y13

Pushbutton, 22 mm, round, metal, shiny, yellow, pushbutton

Siemens 3SU1150-0AB30-1FA0-Z Y12 – Pushbutton, 22 mm, round, metal, shiny, yellow, pushbutton, flat, momentary contact type, 1 NO+1 NC

Siemens

3SU1150-0AB30-1FA0-Z Y12

Pushbutton, 22 mm, round, metal, shiny, yellow, pushbutton

Siemens 3SU1150-0AB30-1FA0-Z Y11 – Pushbutton, 22 mm, round, metal, shiny, yellow, pushbutton, flat, momentary contact type, 1 NO+1 NC

Siemens

3SU1150-0AB30-1FA0-Z Y11

Pushbutton, 22 mm, round, metal, shiny, yellow, pushbutton

Siemens 3SU1150-0AB30-1FA0-Z Y10 – Pushbutton, 22 mm, round, metal, shiny, yellow, pushbutton, flat, momentary contact type, 1 NO+1 NC

Siemens

3SU1150-0AB30-1FA0-Z Y10

Pushbutton, 22 mm, round, metal, shiny, yellow, pushbutton

Siemens 3SU1150-0AB30-1FA0-Z X90 – Pushbutton, 22 mm, round, metal, shiny, yellow, pushbutton, flat, momentary contact type, with holder

Siemens

3SU1150-0AB30-1FA0-Z X90

Pushbutton, 22 mm, round, metal, shiny, yellow, pushbutton

Siemens 3SU1150-0AB30-1FA0 – Pushbutton, 22 mm, round, metal, shiny, yellow, pushbutton, flat, momentary contact type, with holder

Siemens

3SU1150-0AB30-1FA0

Pushbutton, 22 mm, round, metal, shiny, yellow, pushbutton

Compare Actuators and indicators, 22 mm, metal, shiny

Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.

MPN	material of the actuating element	shape of the actuating element	Net Weight	mounting height	installation depth
3SU1050-0BB40-0AA0-Z Y15	plastic	round	40 g	16.2 mm	24.3 mm
3SU1050-0BB40-0AA0-Z Y13	plastic	round	40 g	16.2 mm	24.3 mm
3SU1050-0BB40-0AA0-Z Y12	plastic	round	40 g	16.2 mm	24.3 mm
3SU1051-6AA00-0AA0-Z Y11	metal	round	22.5 g	11.8 mm	24.4 mm
3SU1051-6AA00-0AA0-Z Y10	metal	round	22.5 g	11.8 mm	24.4 mm
3SU1051-6AA00-0AA0-Z X90	metal	round	22.5 g	11.8 mm	24.4 mm
3SU1050-5PF01-0AA0-Z Y11	metal	Key	150.5 g	56.3 mm	25.4 mm
3SU1050-5LF11-0AA0-Z X90	metal	Key	150.5 g	61 mm	25.4 mm
3SU1050-5LF11-0AA0	metal	Key	150.5 g	61 mm	25.4 mm
3SU1050-5LC01-0AA0-Z Y19	metal	Key	152.5 g	61 mm	25.4 mm
3SU1050-5LC01-0AA0-Z Y15	metal	Key	152.5 g	61 mm	25.4 mm
3SU1050-5LC01-0AA0-Z Y12	metal	Key	152.5 g	61 mm	25.4 mm
3SU1050-5LC01-0AA0-Z Y11	metal	Key	152.5 g	61 mm	25.4 mm
3SU1050-5LC01-0AA0-Z Y10	metal	Key	152.5 g	61 mm	25.4 mm
3SU1050-5TF01-0AA0-Z Y15	metal	Key	138.5 g	56.3 mm	25.4 mm
3SU1156-6AA40-3AA0-Z Y19	plastic	round	55.5 g	11.8 mm	49.7 mm
3SU1156-6AA40-3AA0-Z Y15	plastic	round	55.5 g	11.8 mm	49.7 mm
3SU1156-6AA40-3AA0-Z Y13	plastic	round	55.5 g	11.8 mm	49.7 mm
3SU1150-0AB30-1FA0-Z Y13	plastic	round	0.096 kg	11 mm	71.7 mm
3SU1150-0AB30-1FA0-Z Y12	plastic	round	0.096 kg	11 mm	71.7 mm
3SU1150-0AB30-1FA0-Z Y11	plastic	round	0.096 kg	11 mm	71.7 mm
3SU1150-0AB30-1FA0-Z Y10	plastic	round	0.096 kg	11 mm	71.7 mm
3SU1150-0AB30-1FA0-Z X90	plastic	round	0.096 kg	11 mm	71.7 mm
3SU1150-0AB30-1FA0	plastic	round	0.096 kg	11 mm	71.7 mm

Common to all listed parts

protection class IP	IP66, IP67, IP69(IP69K)
degree of protection NEMA rating	1, 2, 3, 3R, 4, 4X, 12, 13
Substance Prohibitance (day/month/year)	10/01/2014
shape of the installation opening	round
mounting diameter	22.3 mm
positive tolerance of installation diameter	0.4 mm
installation width	29.5 mm
Environmental Product Declaration(EPD)	Yes
