Actuators and indicators, 22 mm, metal, shiny Parts
Compare Actuators and indicators, 22 mm, metal, shiny
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | color of the actuating element | outer diameter of the actuating element | Net Weight | installation width | installation depth |
|---|---|---|---|---|---|
| 3SU1052-2BC10-0AA0 | black | 32.3 mm | 45.5 g | 32.3 mm | 25.4 mm |

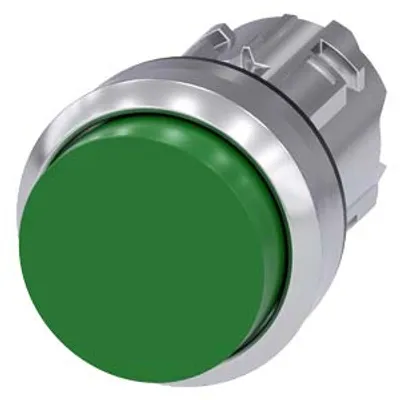

| 3SU1050-0BB40-0AA0-Z Y11 | green | 29.5 mm | 40 g | 29.5 mm | 24.3 mm |
| 3SU1050-0BB40-0AA0-Z Y10 | green | 29.5 mm | 40 g | 29.5 mm | 24.3 mm |
| 3SU1050-0BB40-0AA0-Z X90 | green | 29.5 mm | 40 g | 29.5 mm | 24.3 mm |
| 3SU1050-0BB40-0AA0 | green | 29.5 mm | 40 g | 29.5 mm | 24.3 mm |
| 3SU1050-0BB30-0AA0-Z Y19 | yellow | 29.5 mm | 0.04 kg | 29.5 mm | 24.3 mm |
| 3SU1050-0BB30-0AA0-Z Y15 | yellow | 29.5 mm | 0.04 kg | 29.5 mm | 24.3 mm |
| 3SU1050-0BB30-0AA0-Z Y13 | yellow | 29.5 mm | 0.04 kg | 29.5 mm | 24.3 mm |

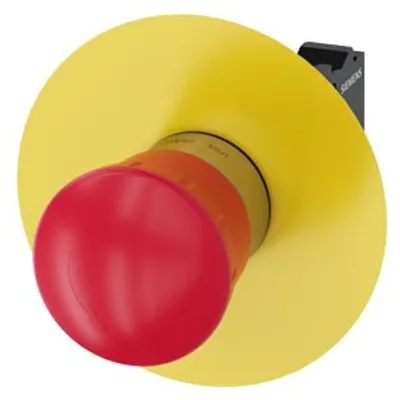

| 3SU1150-1HB20-3PF0 | red | 40 mm | 133.5 g | 75 mm | 48.6 mm |
| 3SU1150-1HB20-3FH0-Z X90 | red | 40 mm | 131.5 g | 75 mm | 70.6 mm |
| 3SU1150-1HB20-3FH0 | red | 40 mm | 131.5 g | 75 mm | 70.6 mm |
| 3SU1150-1HB20-3CH0-Z X90 | red | 40 mm | 125.5 g | 75 mm | 48.6 mm |
| 3SU1150-1HB20-3CH0 | red | 40 mm | 125.5 g | 75 mm | 48.6 mm |
| 3SU1150-1HB20-3CF0 | red | 40 mm | 126.5 g | 75 mm | 48.6 mm |
| 3SU1150-1HA20-3CH0 | red | 40 mm | 154.5 g | 75 mm | 48.6 mm |
| 3SU1150-1HA20-1FJ0-Z X90 | red | 40 mm | 161.5 g | 75 mm | 70.6 mm |
| 3SU1150-1HA20-1FJ0 | red | 40 mm | 161.5 g | 75 mm | 70.6 mm |
| 3SU1150-1HA20-1CG0-Z X90 | red | 40 mm | 128.5 g | 75 mm | 48.6 mm |
| 3SU1150-1HA20-1CG0 | red | 40 mm | 128.5 g | 75 mm | 48.6 mm |
| 3SU1150-1GB20-3PW0 | red | 33.8 mm | 133.5 g | 60 mm | 48.6 mm |
| 3SU1050-0BB50-0AA0-Z Y10 | blue | 29.5 mm | 0.037 kg | 29.5 mm | 24.3 mm |
| 3SU1050-0BB50-0AA0-Z X90 | blue | 29.5 mm | 0.037 kg | 29.5 mm | 24.3 mm |
| 3SU1050-0BB50-0AA0 | blue | 29.5 mm | 0.037 kg | 29.5 mm | 24.3 mm |
| 3SU1050-0BB40-0AA0-Z Y19 | green | 29.5 mm | 40 g | 29.5 mm | 24.3 mm |
Common to all listed parts
| number of command points | 1 |
| material of the actuating element | plastic |
| protection class IP | IP66, IP67, IP69(IP69K) |
| degree of protection NEMA rating | 1, 2, 3, 3R, 4, 4X, 12, 13 |
| reference code according to IEC 81346-2 | S |
| failure rate [FIT] with low demand rate per NC contact according to SN 31920 | 100 FIT |
| T1 value for proof test interval or service life according to IEC 61508 | 20 a |
| shape of the installation opening | round |
