Actuators and indicators, 22 mm, metal, shiny Parts

Siemens 3SU1150-0AB10-3CA0-Z Y19 – Pushbutton, 22 mm, round, metal, shiny, black, pushbutton, flat, momentary contact type, 1 NC

Siemens

3SU1150-0AB10-3CA0-Z Y19

Pushbutton, 22 mm, round, metal, shiny, black, pushbutton

Siemens 3SU1150-0AB10-3CA0-Z Y15 – Pushbutton, 22 mm, round, metal, shiny, black, pushbutton, flat, momentary contact type, 1 NC

Siemens

3SU1150-0AB10-3CA0-Z Y15

Pushbutton, 22 mm, round, metal, shiny, black, pushbutton

Siemens 3SU1153-0AB00-1BA0 – Illuminated pushbutton, 22 mm, round, metal, shiny, amber, pushbutton, flat, momentary contact type

Siemens

3SU1153-0AB00-1BA0

Illuminated pushbutton, 22 mm, round, metal, shiny, amber

Siemens 3SU1152-6AA70-3AA0-Z Y19 – Indicator lights, 22 mm, round, metal, shiny, clear, lens, smooth, with holder

Siemens

3SU1152-6AA70-3AA0-Z Y19

Indicator lights, 22 mm, round, metal, shiny, clear, lens

Siemens 3SU1152-6AA70-3AA0-Z Y15 – Indicator lights, 22 mm, round, metal, shiny, clear, lens, smooth, with holder

Siemens

3SU1152-6AA70-3AA0-Z Y15

Indicator lights, 22 mm, round, metal, shiny, clear, lens

Siemens 3SU1152-6AA70-3AA0-Z Y13 – Indicator lights, 22 mm, round, metal, shiny, clear, lens, smooth, with holder

Siemens

3SU1152-6AA70-3AA0-Z Y13

Indicator lights, 22 mm, round, metal, shiny, clear, lens

Siemens 3SU1152-6AA70-3AA0-Z Y12 – Indicator lights, 22 mm, round, metal, shiny, clear, lens, smooth, with holder

Siemens

3SU1152-6AA70-3AA0-Z Y12

Indicator lights, 22 mm, round, metal, shiny, clear, lens

Siemens 3SU1152-6AA70-3AA0-Z Y11 – Indicator lights, 22 mm, round, metal, shiny, clear, lens, smooth, with holder

Siemens

3SU1152-6AA70-3AA0-Z Y11

Indicator lights, 22 mm, round, metal, shiny, clear, lens

Siemens 3SU1152-6AA70-3AA0-Z Y10 – Indicator light, 22 mm, round, metal, shiny, clear, lens, smooth, with holder

Siemens

3SU1152-6AA70-3AA0-Z Y10

Indicator light, 22 mm, round, metal, shiny, clear, lens

Siemens 3SU1050-1BD30-0AA0-Z Y19 – Mushroom pushbutton, 22 mm, round, metal, shiny, yellow, 40 mm, momentary contact type, with laser labeling

Siemens

3SU1050-1BD30-0AA0-Z Y19

Mushroom pushbutton, 22 mm, round, metal, shiny, yellow

Siemens 3SU1050-1BD30-0AA0-Z Y15 – Mushroom pushbutton, 22 mm, round, metal, shiny, yellow, 40 mm, momentary contact type, with laser labeling

Siemens

3SU1050-1BD30-0AA0-Z Y15

Mushroom pushbutton, 22 mm, round, metal, shiny, yellow

Siemens 3SU1050-1BD30-0AA0-Z Y13 – Mushroom pushbutton, 22 mm, round, metal, shiny, yellow, 40 mm, momentary contact type, with laser labeling

Siemens

3SU1050-1BD30-0AA0-Z Y13

Mushroom pushbutton, 22 mm, round, metal, shiny, yellow

Siemens 3SU1050-1BD30-0AA0-Z Y12 – Mushroom pushbutton, 22 mm, round, metal, shiny, yellow, 40 mm, momentary contact type, with laser labeling

Siemens

3SU1050-1BD30-0AA0-Z Y12

Mushroom pushbutton, 22 mm, round, metal, shiny, yellow

Siemens 3SU1050-1BD30-0AA0-Z Y11 – Mushroom pushbutton, 22 mm, round, metal, shiny, yellow, 40 mm, momentary contact type, with laser labeling

Siemens

3SU1050-1BD30-0AA0-Z Y11

Mushroom pushbutton, 22 mm, round, metal, shiny, yellow

Siemens 3SU1050-1BD30-0AA0-Z Y10 – Mushroom pushbutton, 22 mm, round, metal, shiny, yellow, 40 mm, momentary contact type, with laser labeling

Siemens

3SU1050-1BD30-0AA0-Z Y10

Mushroom pushbutton, 22 mm, round, metal, shiny, yellow

Siemens 3SU1050-1BD30-0AA0-Z X90 – Mushroom pushbutton, 22 mm, round, metal, shiny, yellow, 40 mm, momentary contact type, Z=50-unit packaging

Siemens

3SU1050-1BD30-0AA0-Z X90

Mushroom pushbutton, 22 mm, round, metal, shiny, yellow

Siemens 3SU1051-0AB60-0AA0-Z Y12 – Illuminated pushbutton, 22 mm, round, metal, shiny, white, pushbutton, flat, momentary contact type

Siemens

3SU1051-0AB60-0AA0-Z Y12

Illuminated pushbutton, 22 mm, round, metal, shiny, white

Siemens 3SU1051-0AB50-0AA0 – Illuminated pushbutton, 22 mm, round, metal, shiny, blue, pushbutton, flat, momentary contact type

Siemens

3SU1051-0AB50-0AA0

Illuminated pushbutton, 22 mm, round, metal, shiny, blue

Siemens 3SU1051-0AB40-0AA0-Z Y19 – Illuminated pushbutton, 22 mm, round, metal, shiny, green, pushbutton, flat, momentary contact type

Siemens

3SU1051-0AB40-0AA0-Z Y19

Illuminated pushbutton, 22 mm, round, metal, shiny, green

Siemens 3SU1051-0AB40-0AA0-Z Y15 – Illuminated pushbutton, 22 mm, round, metal, shiny, green, pushbutton, flat, momentary contact type

Siemens

3SU1051-0AB40-0AA0-Z Y15

Illuminated pushbutton, 22 mm, round, metal, shiny, green

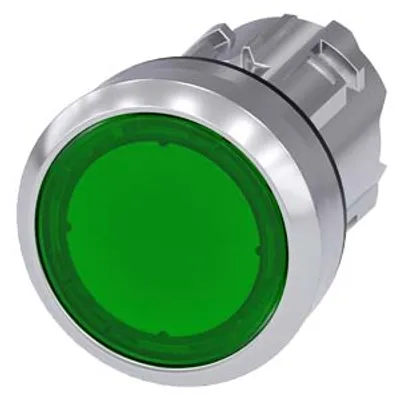

Siemens 3SU1051-0AB40-0AA0-Z Y13 – Illuminated pushbutton, 22 mm, round, metal, shiny, green, pushbutton, flat, momentary contact type

Siemens

3SU1051-0AB40-0AA0-Z Y13

Illuminated pushbutton, 22 mm, round, metal, shiny, green

Siemens 3SU1050-3BB61-0AA0-Z Y12 – Twin pushbutton, 22 mm, round, metal, shiny, white, black, pushbuttons, flat and raised, with laser labeling

Siemens

3SU1050-3BB61-0AA0-Z Y12

Twin pushbutton, 22 mm, round, metal, shiny, white, black

Siemens 3SU1050-3AB42-0AK0 – Twin pushbutton, 22 mm, round, metal, shiny, green: I, red: O, pushbuttons, flat

Siemens

3SU1050-3AB42-0AK0

Twin pushbutton, 22 mm, round, metal, shiny, green: I

Siemens 3SU1050-3AB42-0AA0-Z Y19 – Twin pushbutton, 22 mm, round, metal, shiny, green, red, pushbuttons, flat, with laser labeling

Siemens

3SU1050-3AB42-0AA0-Z Y19

Twin pushbutton, 22 mm, round, metal, shiny, green, red

Compare Actuators and indicators, 22 mm, metal, shiny

Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.

MPN	color of the actuating element	Net Weight	width	mounting height	installation depth
3SU1150-0AB10-3CA0-Z Y19	black	66.5 g	30 mm	11 mm	49.7 mm
3SU1150-0AB10-3CA0-Z Y15	black	66.5 g	30 mm	11 mm	49.7 mm
3SU1153-0AB00-1BA0	amber	96.5 g	30 mm	11 mm	49.7 mm
3SU1152-6AA70-3AA0-Z Y19	—	56.5 g	30 mm	11.8 mm	49.7 mm
3SU1152-6AA70-3AA0-Z Y15	—	56.5 g	30 mm	11.8 mm	49.7 mm
3SU1152-6AA70-3AA0-Z Y13	—	56.5 g	30 mm	11.8 mm	49.7 mm
3SU1152-6AA70-3AA0-Z Y12	—	56.5 g	30 mm	11.8 mm	49.7 mm
3SU1152-6AA70-3AA0-Z Y11	—	56.5 g	30 mm	11.8 mm	49.7 mm
3SU1152-6AA70-3AA0-Z Y10	—	56.5 g	30 mm	11.8 mm	49.7 mm
3SU1050-1BD30-0AA0-Z Y19	yellow	0.046 kg	40 mm	27.5 mm	24.4 mm
3SU1050-1BD30-0AA0-Z Y15	yellow	0.046 kg	40 mm	27.5 mm	24.4 mm
3SU1050-1BD30-0AA0-Z Y13	yellow	0.046 kg	40 mm	27.5 mm	24.4 mm
3SU1050-1BD30-0AA0-Z Y12	yellow	0.046 kg	40 mm	27.5 mm	24.4 mm
3SU1050-1BD30-0AA0-Z Y11	yellow	0.046 kg	40 mm	27.5 mm	24.4 mm
3SU1050-1BD30-0AA0-Z Y10	yellow	0.046 kg	40 mm	27.5 mm	24.4 mm
3SU1050-1BD30-0AA0-Z X90	yellow	0.046 kg	40 mm	27.5 mm	24.4 mm
3SU1051-0AB60-0AA0-Z Y12	white	37 g	29.5 mm	11 mm	24.3 mm
3SU1051-0AB50-0AA0	blue	36 g	29.5 mm	11 mm	24.3 mm
3SU1051-0AB40-0AA0-Z Y19	green	36 g	29.5 mm	11 mm	24.3 mm
3SU1051-0AB40-0AA0-Z Y15	green	36 g	29.5 mm	11 mm	24.3 mm
3SU1051-0AB40-0AA0-Z Y13	green	36 g	29.5 mm	11 mm	24.3 mm
3SU1050-3BB61-0AA0-Z Y12	white / black	64.5 g	29.9 mm	18.7 mm	25.5 mm
3SU1050-3AB42-0AK0	green / red	64.5 g	29.9 mm	14.4 mm	25.7 mm
3SU1050-3AB42-0AA0-Z Y19	green / red	0.064 kg	29.9 mm	14.4 mm	25.7 mm

Common to all listed parts

material of the actuating element	plastic
protection class IP	IP66, IP67, IP69(IP69K)
degree of protection NEMA rating	1, 2, 3, 3R, 4, 4X, 12, 13
Substance Prohibitance (day/month/year)	10/01/2014
shape of the installation opening	round
mounting diameter	22.3 mm
positive tolerance of installation diameter	0.4 mm
global warming potential [CO2 eq] total	0.593 kg
