Actuators and indicators, 22 mm, metal, shiny Parts
Compare Actuators and indicators, 22 mm, metal, shiny
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | outer diameter of the actuating element | Net Weight | width | mounting height | installation width |
|---|---|---|---|---|---|
| 3SU1150-0AB50-1BA0-Z Y10 | 29.45 mm | 66.5 g | 30 mm | 11 mm | 29.5 mm |
| 3SU1150-0AB50-1BA0-Z X90 | 29.45 mm | 66.5 g | 30 mm | 11 mm | 29.5 mm |
| 3SU1150-0AB50-1BA0 | 29.45 mm | 66.5 g | 30 mm | 11 mm | 29.5 mm |
| 3SU1050-1EA10-0AA0-Z X90 | 40 mm | 59.5 g | 40 mm | 32 mm | 40 mm |
| 3SU1050-1CD40-0AA0-Z Y12 | 60 mm | 47.8 g | 60 mm | 27.5 mm | 60 mm |
| 3SU1050-1CD40-0AA0-Z Y11 | 60 mm | 47.8 g | 60 mm | 27.5 mm | 60 mm |
| 3SU1050-1CD40-0AA0-Z Y10 | 60 mm | 47.8 g | 60 mm | 27.5 mm | 60 mm |
| 3SU1152-6AA40-1AA0-Z Y19 | 29.45 mm | 55.5 g | 30 mm | 11.8 mm | 29.5 mm |
| 3SU1152-6AA40-1AA0-Z Y15 | 29.45 mm | 55.5 g | 30 mm | 11.8 mm | 29.5 mm |
| 3SU1152-6AA40-1AA0-Z Y13 | 29.45 mm | 55.5 g | 30 mm | 11.8 mm | 29.5 mm |
| 3SU1152-6AA40-1AA0-Z Y12 | 29.45 mm | 55.5 g | 30 mm | 11.8 mm | 29.5 mm |
| 3SU1152-6AA40-1AA0-Z Y11 | 29.45 mm | 55.5 g | 30 mm | 11.8 mm | 29.5 mm |
| 3SU1152-6AA40-1AA0-Z Y10 | 29.45 mm | 55.5 g | 30 mm | 11.8 mm | 29.5 mm |
| 3SU1152-6AA40-1AA0-Z X90 | 29.45 mm | 55.5 g | 30 mm | 11.8 mm | 29.5 mm |
| 3SU1156-6AA30-3AA0-Z Y15 | 29.45 mm | 55.5 g | 30 mm | 11.8 mm | 29.5 mm |
| 3SU1156-6AA30-3AA0-Z Y13 | 29.45 mm | 55.5 g | 30 mm | 11.8 mm | 29.5 mm |
| 3SU1156-6AA30-3AA0-Z Y12 | 29.45 mm | 55.5 g | 30 mm | 11.8 mm | 29.5 mm |
| 3SU1156-6AA30-3AA0-Z Y11 | 29.45 mm | 55.5 g | 30 mm | 11.8 mm | 29.5 mm |
| 3SU1156-6AA30-3AA0-Z Y10 | 29.45 mm | 55.5 g | 30 mm | 11.8 mm | 29.5 mm |
| 3SU1156-6AA30-3AA0-Z X90 | 29.45 mm | 55.5 g | 30 mm | 11.8 mm | 29.5 mm |
| 3SU1156-6AA30-3AA0 | 29.45 mm | 55.5 g | 30 mm | 11.8 mm | 29.5 mm |
| 3SU1150-0AB40-1BA0-Z Y10 | 29.45 mm | 66.5 g | 30 mm | 11 mm | 29.5 mm |
| 3SU1150-0AB40-1BA0-Z X90 | 29.45 mm | 66.5 g | 30 mm | 11 mm | 29.5 mm |

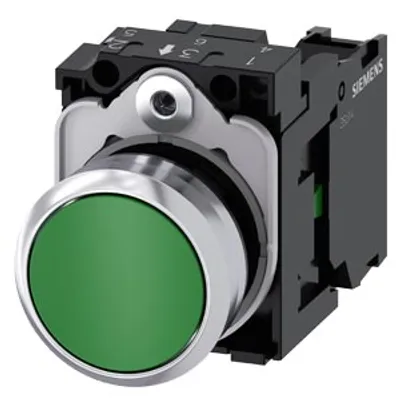

| 3SU1150-0AB40-1BA0 | 29.45 mm | 66.5 g | 30 mm | 11 mm | 29.5 mm |
Common to all listed parts
| number of command points | 1 |
| material of the actuating element | plastic |
| shape of the actuating element | round |
| protection class IP | IP66, IP67, IP69(IP69K) |
| degree of protection NEMA rating | 1, 2, 3, 3R, 4, 4X, 12, 13 |
| Substance Prohibitance (day/month/year) | 10/01/2014 |
| shape of the installation opening | round |
| mounting diameter | 22.3 mm |
