Temperature measurement Parts
Compare Temperature measurement
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Power consumption – Bus | Power consumption – Internal I/O | Digital converter resolution | Output format | Permissible input signal |
|---|---|---|---|---|---|
| X20cAT2311 | 0.35 W | 0.85 W | 24-bit | DINT or UDINT for resistance measurement | Short-term max. 28.8 V |
| X20cAT6402 | 0.01 W | 0.91 W | 16-bit | INT | Max. ±5 V |

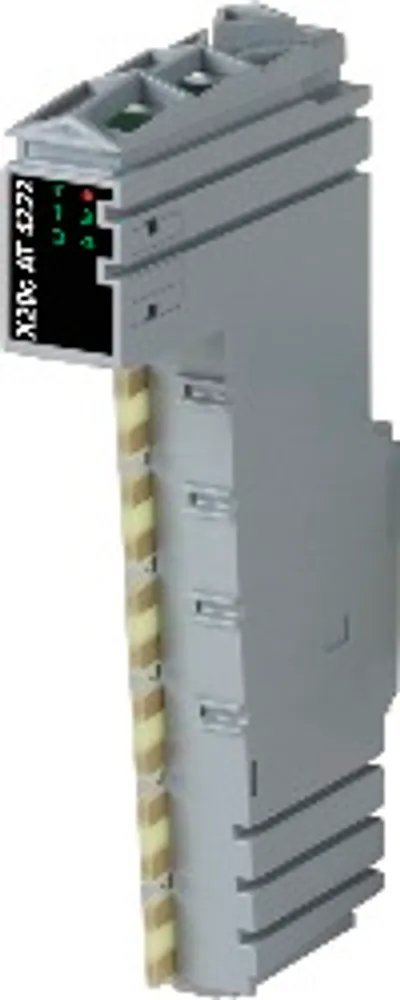

| X20cAT4222 | 0.01 W | 1.1 W | 16-bit | INT or UINT for resistance measurement | Short-term max. ±30 V |
Common to all listed parts
| Diagnostics – Module run/error | Yes, using LED status indicator and software |
| Diagnostics – Inputs | Yes, using LED status indicator and software |
| Certifications – CE | Yes |
| Certifications – UKCA | Yes |
| Certifications – CRA (Cyber Resilience Act) | In preparation |
| Certifications – UL | cULus E115267; Industrial control equipment |
| Certifications – LR | ENV1 |
| Certifications – KR | Yes |
