140G Circuit Breakers Parts
Compare 140G Circuit Breakers
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Number of Poles | Rated Current(A) | Frame Size | Protection | Auxiliary and Alarm Contacts |
|---|---|---|---|---|---|
| 140G-H6F3-D12-KJ | 3 Poles | 125 A | H frame | T/M - Thermal Magnetic | 1 NO/NC AUX, 24V |

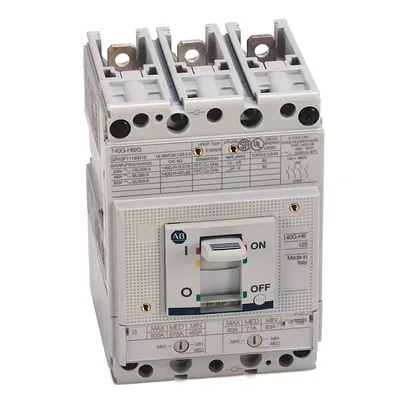

| 140G-H6F3-D12-KA-MB | 3 Poles | 125 A | H frame | T/M - Thermal Magnetic | 1 NO/NC AUX, 250V |
| 140G-M5F3-D80-Z1-SJ | 3 Poles | 800 A | M frame | T/M - Thermal Magnetic | — |
| 140G-M5F3-D80-Z1-AA | 3 Poles | 800 A | M frame | T/M - Thermal Magnetic | 1 NO/NC AUX + Alarm, 250V |
| 140G-M5F3-D80-SD-AA | 3 Poles | 800 A | M frame | T/M - Thermal Magnetic | 1 NO/NC AUX + Alarm, 250V |
| 140G-M5F3-D80-SC-AA | 3 Poles | 800 A | M frame | T/M - Thermal Magnetic | 1 NO/NC AUX + Alarm, 250V |
| 140G-M5F3-D80-CA | 3 Poles | 800 A | M frame | T/M - Thermal Magnetic | 3 NO/NC AUX + Alarm, 250V |
| 140G-M5F3-D80-AB | 3 Poles | 800 A | M frame | T/M - Thermal Magnetic | 1 NO/NC AUX + Alarm, 400V |
| 140G-M5F3-D63-UA | 3 Poles | 630 A (IEC only) | M frame | T/M - Thermal Magnetic | — |
| 140G-M5F3-D60-Z1-SD-CJ | 3 Poles | 600 A | M frame | T/M - Thermal Magnetic | 3 NO/NC AUX + Alarm, 24V |
| 140G-M5F3-D60-Z1 | 3 Poles | 600 A | M frame | T/M - Thermal Magnetic | — |
| 140G-M5F3-D60-UD-AA | 3 Poles | 600 A | M frame | T/M - Thermal Magnetic | 1 NO/NC AUX + Alarm, 250V |
| 140G-M5F3-D60-CA | 3 Poles | 600 A | M frame | T/M - Thermal Magnetic | 3 NO/NC AUX + Alarm, 250V |

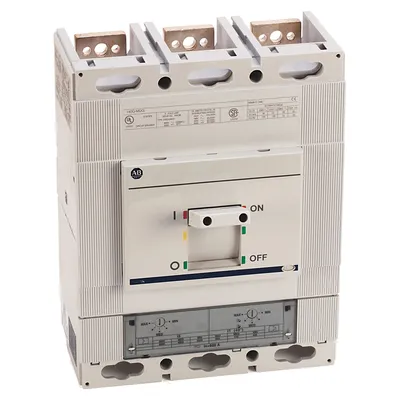

| 140G-M5F3-D60 | 3 Poles | 600 A | M frame | T/M - Thermal Magnetic | — |
| 140G-M0K4-D60 | 4 Poles | 600 A | M frame | LSIG-M (electronic) | — |
| 140G-K15H3-D30-AA | 3 Poles | 300 A | K frame | LSI (Electronic DIP Switch) | 1 NO/NC AUX + Alarm, 250V |
| 140G-K15F4-D30 | 4 Poles | 300 A | K frame | T/M - Thermal Magnetic | — |
| 140G-K15F3-D40-FB | 3 Poles | 400 A | K frame | T/M - Thermal Magnetic | 2 NO/NC AUX, 400V |
| 140G-K0I4-D40-SJ-AA | 4 Poles | 400 A | K frame | LSIG (Electronic DIP Switch) | 1 NO/NC AUX + Alarm, 250V |

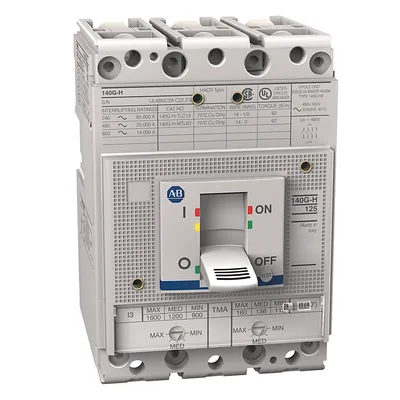

| 140G-H2F3-D10-KA | 3 Poles | 100 A | H frame | T/M - Thermal Magnetic | 1 NO/NC AUX, 250V |
| 140G-H2C3-C63 | 3 Poles | 63 A | H frame | T/M - Thermal Magnetic | — |
| 140G-H2C3-C50-SJ-AJ | 3 Poles | 50 A | H frame | T/M - Thermal Magnetic | 1 NO/NC AUX + Alarm, 24V |

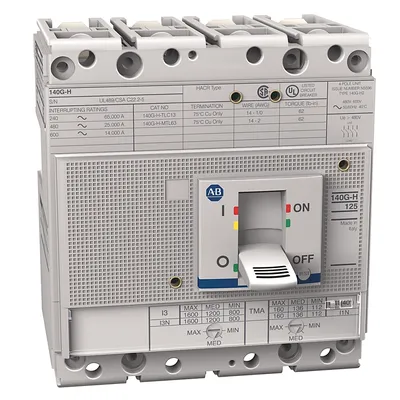

| 140G-H2F4-D10 | 4 Poles | 100 A | H frame | T/M - Thermal Magnetic | — |

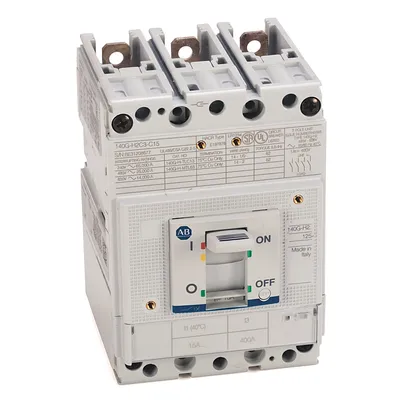

| 140G-H2C3-C40-KA | 3 Poles | 40 A | H frame | T/M - Thermal Magnetic | 1 NO/NC AUX, 250V |
Common to all listed parts
| Device Type | 140G - Molded Case Circuit Breaker |
| Assembly | Factory Assembled |
