140G Circuit Breakers Parts
Compare 140G Circuit Breakers
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Number of Poles | Rated Current(A) | Frame Size | Protection |
|---|---|---|---|---|
| 140G-I2C3-D16-SD | 3 Poles | 160 A | I frame | T/M - Thermal Magnetic |
| 140G-I2C3-D15-SJ-KJ | 3 Poles | 150 A | I frame | T/M - Thermal Magnetic |
| 140G-I2C3-D12-SB-KA | 3 Poles | 125 A | I frame | T/M - Thermal Magnetic |
| 140G-I2C3-D12-KJ | 3 Poles | 125 A | I frame | T/M - Thermal Magnetic |
| 140G-I2C3-D11-SJ | 3 Poles | 110 A | I frame | T/M - Thermal Magnetic |
| 140G-I2C3-D10-SJ | 3 Poles | 100 A | I frame | T/M - Thermal Magnetic |
| 140G-I2C3-C90-SJ | 3 Poles | 90 A | I frame | T/M - Thermal Magnetic |
| 140G-I2C3-C90-SD | 3 Poles | 90 A | I frame | T/M - Thermal Magnetic |
| 140G-I2C3-C80-SC-KA | 3 Poles | 80 A | I frame | T/M - Thermal Magnetic |
| 140G-HC6I3-D12-KJ | 3 Poles | 125 A | HC frame (current limiting) | LSIG (Electronic DIP Switch) |
| 140G-H6I3-D12-SD | 3 Poles | 125 A | H frame | LSIG (Electronic DIP Switch) |
| 140G-H6I3-D10-SJ | 3 Poles | 100 A | H frame | LSIG (Electronic DIP Switch) |
| 140G-H6I3-D10-SD | 3 Poles | 100 A | H frame | LSIG (Electronic DIP Switch) |

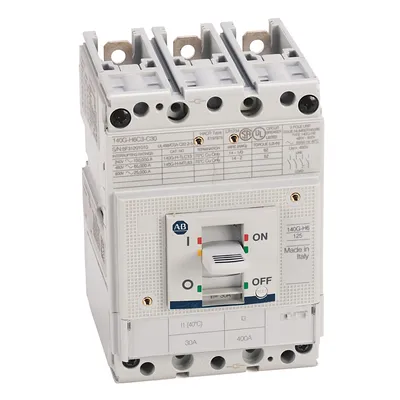

| 140G-H6I3-D10-AJ-MT | 3 Poles | 100 A | H frame | LSIG (Electronic DIP Switch) |
| 140G-H6I3-C60-FB | 3 Poles | 60 A | H frame | LSIG (Electronic DIP Switch) |
| 140G-H6I3-C25-BA | 3 Poles | 25 A | H frame | LSIG (Electronic DIP Switch) |
| 140G-H6H3-D10-MT | 3 Poles | 100 A | H frame | LSI (Electronic DIP Switch) |
| 140G-H6H3-D10-AJ-MT | 3 Poles | 100 A | H frame | LSI (Electronic DIP Switch) |
| 140G-H6F4-D12-KA | 4 Poles | 125 A | H frame | T/M - Thermal Magnetic |
| 140G-H6F3-D12-SJ-KJ-MT | 3 Poles | 125 A | H frame | T/M - Thermal Magnetic |
| 140G-H6F3-D12-SD | 3 Poles | 125 A | H frame | T/M - Thermal Magnetic |

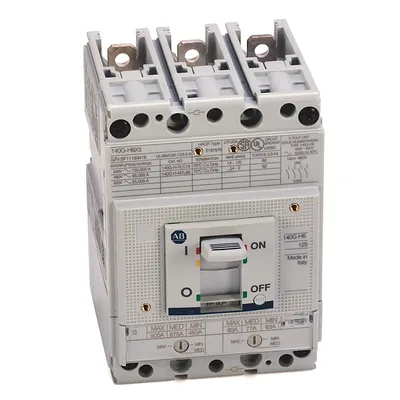

| 140G-H6F3-D12-MT | 3 Poles | 125 A | H frame | T/M - Thermal Magnetic |
| 140G-H6F3-D12-MB | 3 Poles | 125 A | H frame | T/M - Thermal Magnetic |
| 140G-H6F3-D12-KJ-MB | 3 Poles | 125 A | H frame | T/M - Thermal Magnetic |
Common to all listed parts
| Device Type | 140G - Molded Case Circuit Breaker |
| Assembly | Factory Assembled |
