140G Circuit Breakers Parts
Compare 140G Circuit Breakers
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Number of Poles | Rated Current(A) | Frame Size | Protection | Current Range |
|---|---|---|---|---|---|
| 140G-J6F3-D15-CJ-MB | 3 Poles | 150 A | J frame | T/M - Thermal Magnetic | — |

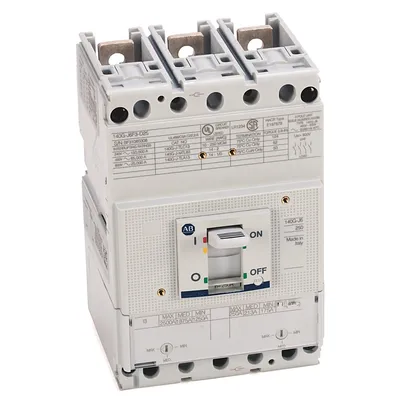

| 140G-J6F3-D12 | 3 Poles | 125 A | J frame | T/M - Thermal Magnetic | — |
| 140G-J6F3-D10-MB | 3 Poles | 100 A | J frame | T/M - Thermal Magnetic | — |
| 140G-J6F3-C90-KA | 3 Poles | 90 A | J frame | T/M - Thermal Magnetic | — |
| 140G-K6H3-D40 | 3 Poles | 400 A | K frame | LSI (Electronic DIP Switch) | 80% Rated |
| 140G-K6H3-D30-UC-CJ | 3 Poles | 300 A | K frame | LSI (Electronic DIP Switch) | 80% Rated |

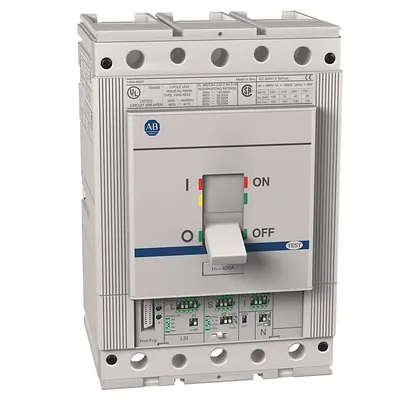

| 140G-K6H3-D30-SD | 3 Poles | 300 A | K frame | LSI (Electronic DIP Switch) | 80% Rated |
| 140G-K6H3-D30 | 3 Poles | 300 A | K frame | LSI (Electronic DIP Switch) | 80% Rated |
| 140G-K6F3-D40-Z1-CA | 3 Poles | 400 A | K frame | T/M - Thermal Magnetic | 100% Rated |
| 140G-M0H3-D80-SD | 3 Poles | 800 A | M frame | LSI (Electronic DIP Switch) | 80% Rated |

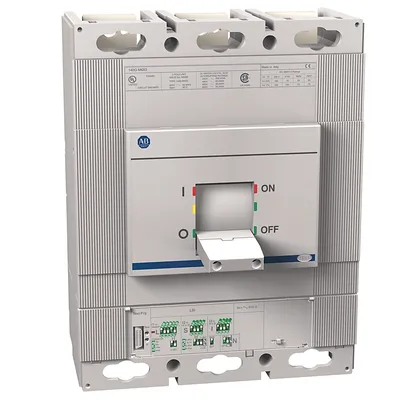

| 140G-M0H3-D60-FB | 3 Poles | 600 A | M frame | LSI (Electronic DIP Switch) | 80% Rated |
| 140G-M0F4-D80 | 4 Poles | 800 A | M frame | T/M - Thermal Magnetic | — |
| 140G-M0F3-D80-CJ | 3 Poles | 800 A | M frame | T/M - Thermal Magnetic | 80% Rated |

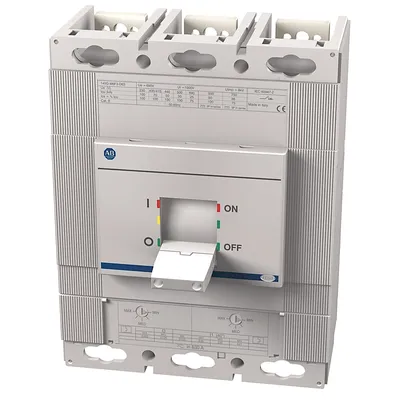

| 140G-M0F3-D80 | 3 Poles | 800 A | M frame | T/M - Thermal Magnetic | 80% Rated |
| 140G-M0F3-D60-CJ | 3 Poles | 600 A | M frame | T/M - Thermal Magnetic | 80% Rated |
| 140G-M0F3-D60-CA | 3 Poles | 600 A | M frame | T/M - Thermal Magnetic | 80% Rated |
| 140G-KC6F3-D30 | 3 Poles | 300 A | KC frame (current limiting) | T/M - Thermal Magnetic | — |

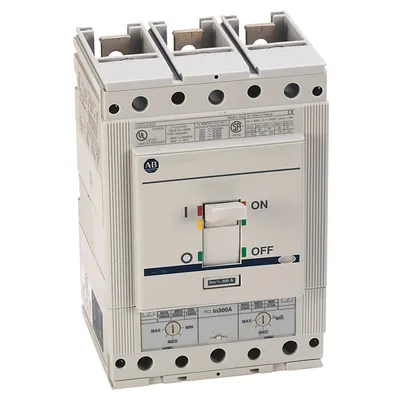

| 140G-K3F4-D30 | 4 Poles | 300 A | K frame | T/M - Thermal Magnetic | — |

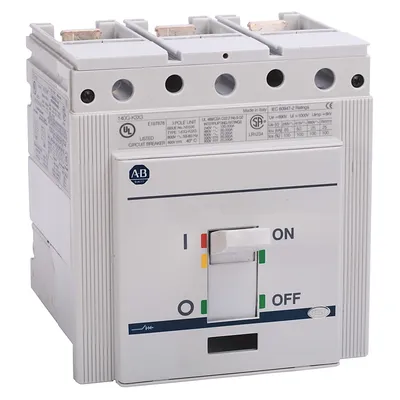

| 140G-K3I3-D40 | 3 Poles | 400 A | K frame | LSIG (Electronic DIP Switch) | 80% Rated |
| 140G-K3H4-D40 | 4 Poles | 400 A | K frame | LSI (Electronic DIP Switch) | — |
| 140G-K3H3-D40 | 3 Poles | 400 A | K frame | LSI (Electronic DIP Switch) | 80% Rated |
| 140G-R12K4-E20-W1-MJ-RJ-DA | 4 Poles | 2000 A | R frame | LSIG-M (electronic) | 80% Rated |

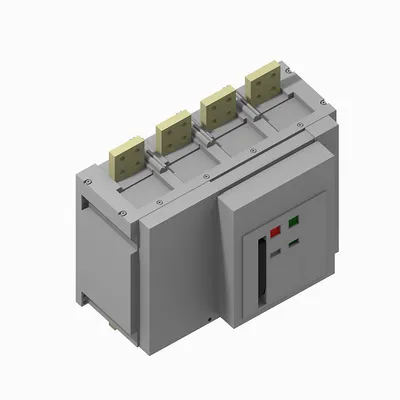

| 140G-R12K4-E20-UJ-DA | 4 Poles | 2000 A | R frame | LSIG-M (electronic) | 80% Rated |
| 140G-R12K4-E20-MJ-RJ-DA | 4 Poles | 2000 A | R frame | LSIG-M (electronic) | 80% Rated |
Common to all listed parts
| Device Type | 140G - Molded Case Circuit Breaker |
| Assembly | Factory Assembled |
