140G Circuit Breakers Parts
Compare 140G Circuit Breakers
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Number of Poles | Rated Current(A) | Frame Size | Protection |
|---|---|---|---|---|
| 140G-G3C3-C30-KJ | 3 Poles | 30 A | G frame | T/M - Thermal Magnetic |

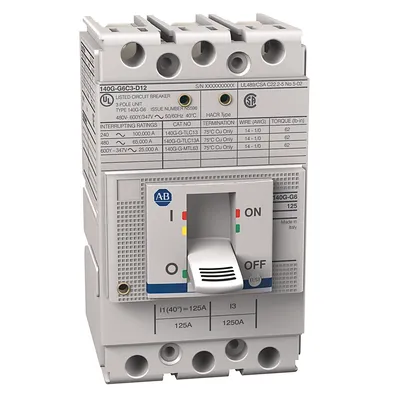

| 140G-G3C3-C25-KA | 3 Poles | 25 A | G frame | T/M - Thermal Magnetic |
| 140G-G2C3-C90-KA | 3 Poles | 90 A | G frame | T/M - Thermal Magnetic |
| 140G-G2C3-C50-UJ | 3 Poles | 50 A | G frame | T/M - Thermal Magnetic |

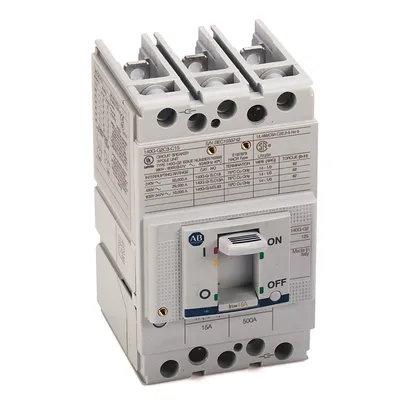

| 140G-G2C3-C50-SJ-AJ | 3 Poles | 50 A | G frame | T/M - Thermal Magnetic |
| 140G-G2C3-C50-SA | 3 Poles | 50 A | G frame | T/M - Thermal Magnetic |
| 140G-G2C3-C40-SA | 3 Poles | 40 A | G frame | T/M - Thermal Magnetic |
| 140G-G2C3-C32-SA | 3 Poles | 32 A | G frame | T/M - Thermal Magnetic |
| 140G-G2C3-C25-SA | 3 Poles | 25 A | G frame | T/M - Thermal Magnetic |
| 140G-G2C3-C63-SA | 3 Poles | 63 A | G frame | T/M - Thermal Magnetic |
| 140G-G2C3-C60-SJ-AJ | 3 Poles | 60 A | G frame | T/M - Thermal Magnetic |
| 140G-G2C3-C60-KJ | 3 Poles | 60 A | G frame | T/M - Thermal Magnetic |
| 140G-J6F4-D20 | 4 Poles | 200 A | J frame | T/M - Thermal Magnetic |
| 140G-J6F4-D16 | 4 Poles | 160 A | J frame | T/M - Thermal Magnetic |

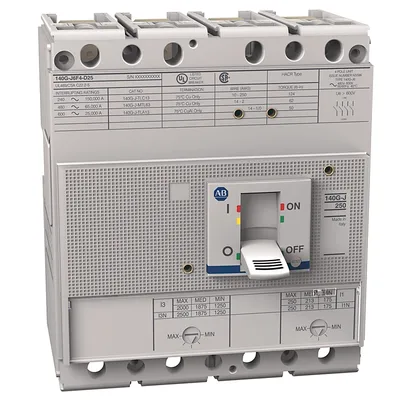

| 140G-J6F4-C90 | 4 Poles | 90 A | J frame | T/M - Thermal Magnetic |
| 140G-J6F3-D25-SA-AA | 3 Poles | 250 A | J frame | T/M - Thermal Magnetic |
| 140G-J6F3-D25-MT | 3 Poles | 250 A | J frame | T/M - Thermal Magnetic |

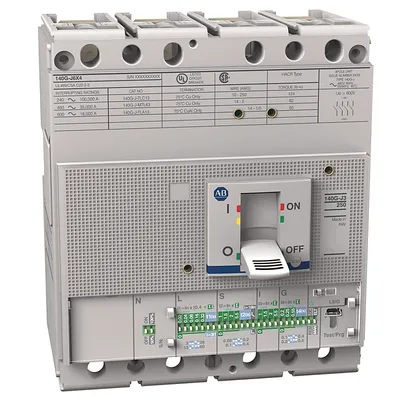

| 140G-J6I3-D15 | 3 Poles | 150 A | J frame | LSIG (Electronic DIP Switch) |
| 140G-J6H3-D25-SD | 3 Poles | 250 A | J frame | LSI (Electronic DIP Switch) |
| 140G-J6H3-D25-KJ-MB | 3 Poles | 250 A | J frame | LSI (Electronic DIP Switch) |

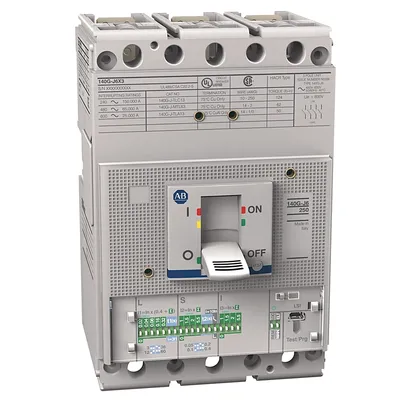

| 140G-J6H3-D25 | 3 Poles | 250 A | J frame | LSI (Electronic DIP Switch) |
| 140G-J6H3-D15 | 3 Poles | 150 A | J frame | LSI (Electronic DIP Switch) |
| 140G-J6F4-D25-SD | 4 Poles | 250 A | J frame | T/M - Thermal Magnetic |
| 140G-J6F3-D15-CJ-MT | 3 Poles | 150 A | J frame | T/M - Thermal Magnetic |
Common to all listed parts
| Device Type | 140G - Molded Case Circuit Breaker |
| Assembly | Factory Assembled |
