Main busbar rear Parts

Showing 1–24 of 41 parts

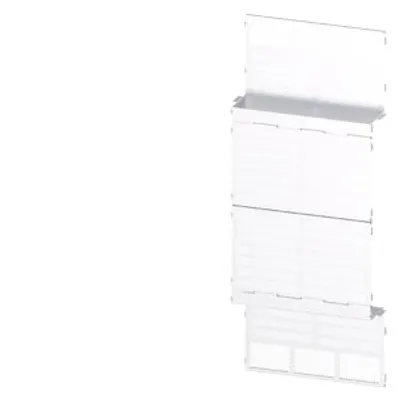

Siemens 8PQ5000-5BA51 – Separation position: rear duplex quantity of ACBs: 2 W: 800 mm D: 1000 mm
Siemens
8PQ5000-5BA51

Separation position: rear duplex quantity of ACBs: 2 W: 800…

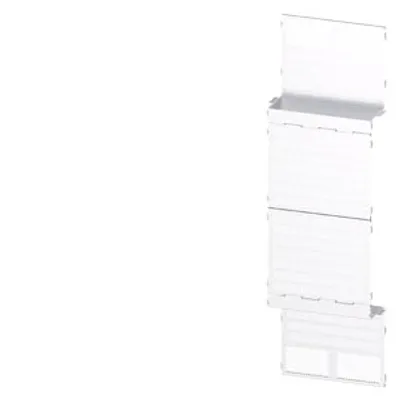

Siemens 8PQ5000-5BA50 – Separation rear, 2 x ACB main busbar: double W: 600 mm D: 1000 mm
Siemens
8PQ5000-5BA50

Separation rear, 2 x ACB main busbar: double W: 600 mm D…

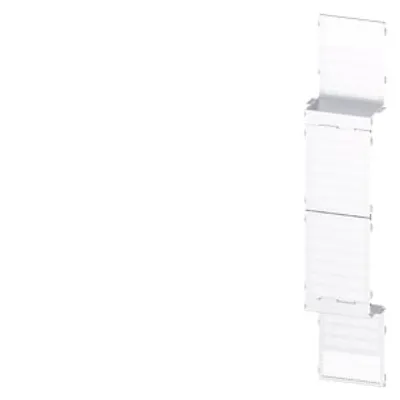

Siemens 8PQ5000-5BA48 – Separation rear, 2 x ACB main busbar: double W: 400 mm D: 1000 mm
Siemens
8PQ5000-5BA48

Separation rear, 2 x ACB main busbar: double W: 400 mm D…

Siemens 8PQ3000-3BA67 – Partition mounting D: 1200 mm 1 set = 6 units
Siemens
8PQ3000-3BA67

Partition mounting D: 1200 mm 1 set = 6 units

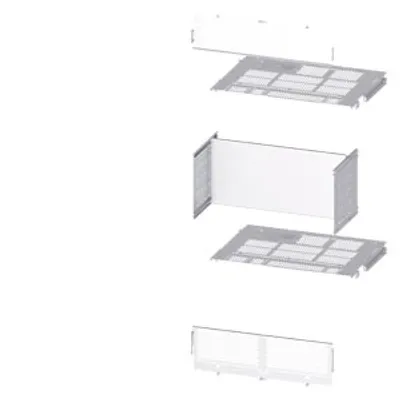

Siemens 8PQ5000-5BA38 – Separation position: rear single quantity of ACBs: 2 W: 800 mm D: 800/1000/1200 mm
Siemens
8PQ5000-5BA38

Separation position: rear single quantity of ACBs: 2 W: 800…

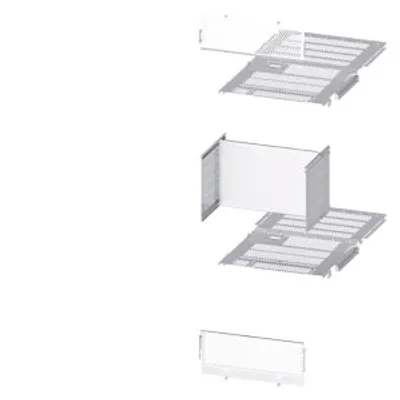

Siemens 8PQ5000-5BA36 – Separation position: rear duplex quantity of ACBs: 2 W: 600 mm D: 1200 mm
Siemens
8PQ5000-5BA36

Separation position: rear duplex quantity of ACBs: 2 W: 600…

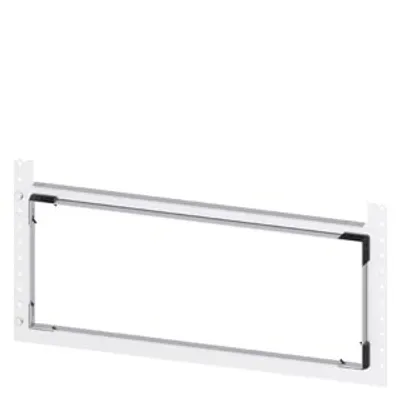

Siemens 8PQ2025-6BA26 – Degree of protection upgrade IP55, H: 250 mm W: 600 mm
Siemens
8PQ2025-6BA26

Degree of protection upgrade IP55, H: 250 mm W: 600 mm

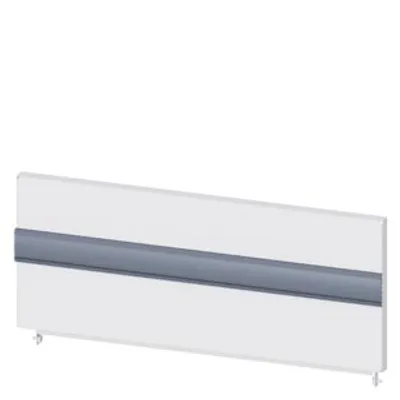

Siemens 8PQ2025-6BA25 – Head compartment cover IP40, H: 250 mm W: 600 mm
Siemens
8PQ2025-6BA25

Head compartment cover IP40, H: 250 mm W: 600 mm

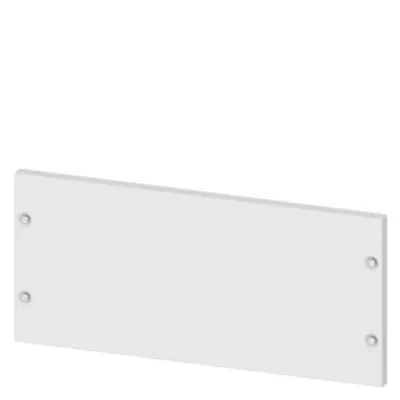

Siemens 8PQ2000-6BA11 – Base compartment cover IP55, H: 275 mm W: 600 mm
Siemens
8PQ2000-6BA11

Base compartment cover IP55, H: 275 mm W: 600 mm

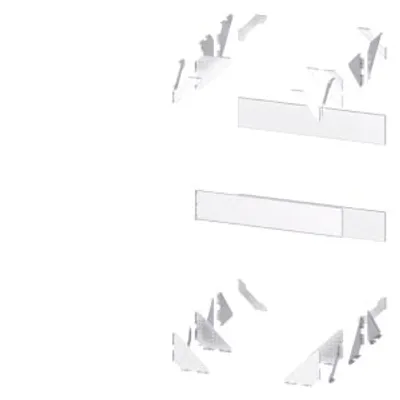

Siemens 8PQ5000-5BA46 – Frame reinforcement incoming feeder panel size 3
Siemens
8PQ5000-5BA46

Frame reinforcement incoming feeder panel size 3

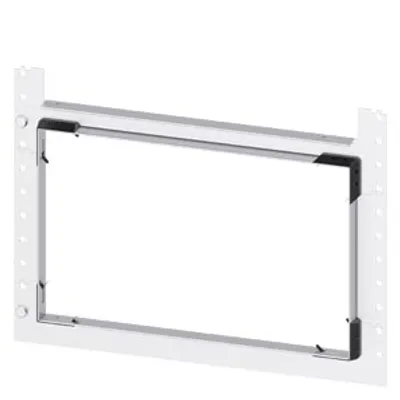

Siemens 8PQ2025-4BA04 – Degree of protection upgrade IP55, H: 250 mm W: 400 mm
Siemens
8PQ2025-4BA04

Degree of protection upgrade IP55, H: 250 mm W: 400 mm

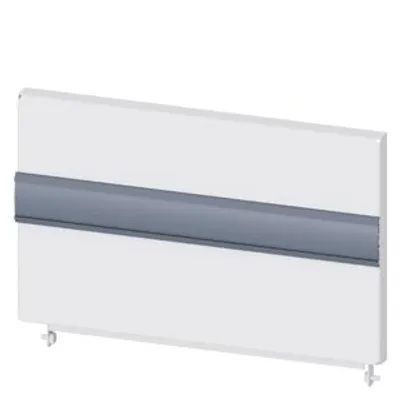

Siemens 8PQ2025-4BA03 – Head compartment cover IP40, H: 250 mm W: 400 mm
Siemens
8PQ2025-4BA03

Head compartment cover IP40, H: 250 mm W: 400 mm

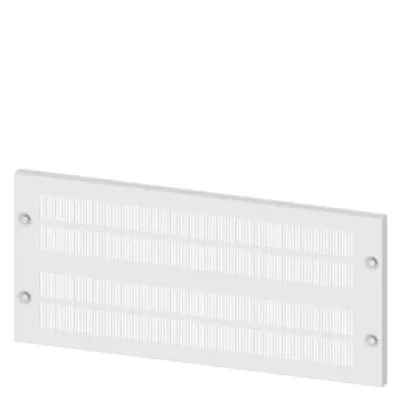

Siemens 8PQ2000-6BA13 – Base compartment cover IP40, H: 275 mm W: 600 mm
Siemens
8PQ2000-6BA13

Base compartment cover IP40, H: 275 mm W: 600 mm

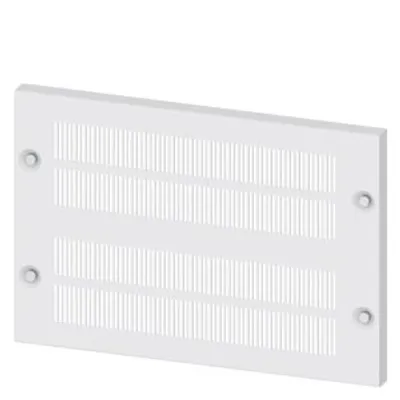

Siemens 8PQ2000-4BA06 – Base compartment cover IP40, H: 275 mm W: 400 mm
Siemens
8PQ2000-4BA06

Base compartment cover IP40, H: 275 mm W: 400 mm

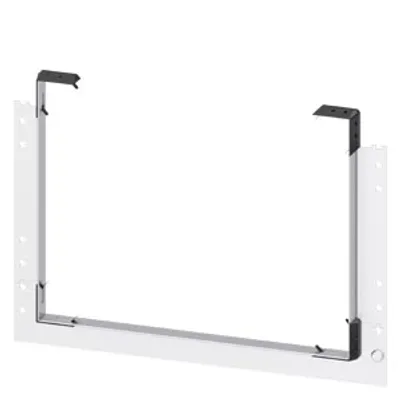

Siemens 8PQ2000-4BA05 – Degree of protection upgrade IP55, H: 275 mm W: 400 mm
Siemens
8PQ2000-4BA05

Degree of protection upgrade IP55, H: 275 mm W: 400 mm

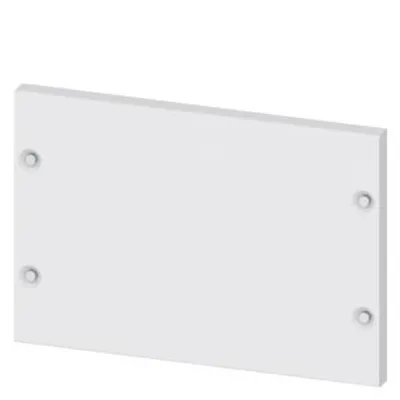

Siemens 8PQ2000-4BA04 – Base compartment cover IP55, H: 275 mm W: 400 mm
Siemens
8PQ2000-4BA04

Base compartment cover IP55, H: 275 mm W: 400 mm

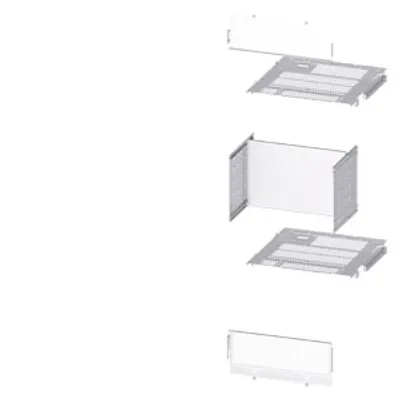

Siemens 8PQ5000-5BA34 – Separation position: rear single quantity of ACBs: 2 W: 600 mm D: 800/1000/1200 mm
Siemens
8PQ5000-5BA34

Separation position: rear single quantity of ACBs: 2 W: 600…

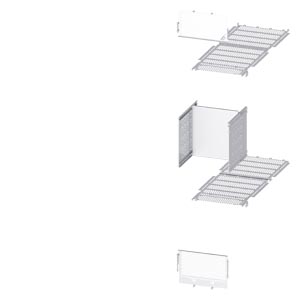

Siemens 8PQ5000-5BA32 – Separation position: rear duplex quantity of ACBs: 2 W: 400 mm D: 1200 mm
Siemens
8PQ5000-5BA32

Separation position: rear duplex quantity of ACBs: 2 W: 400…

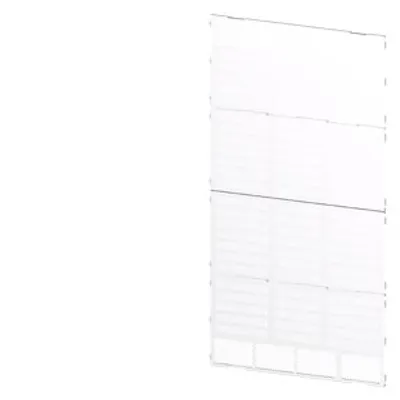

Siemens 8PQ5000-5BA24 – Separation rear, 2 x ACB main busbar: double W: 1000 mm D: 800/1200 mm
Siemens
8PQ5000-5BA24

Separation rear, 2 x ACB main busbar: double W: 1000 mm D…

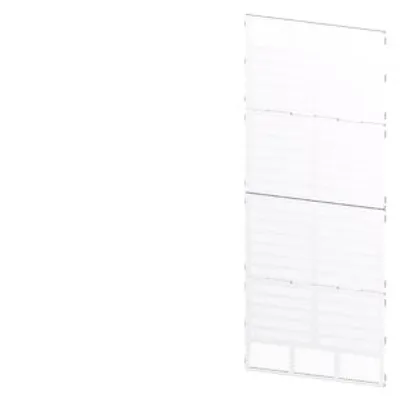

Siemens 8PQ5000-5BA23 – Separation position: rear duplex quantity of ACBs: 2 W: 800 mm D: 800/1200 mm
Siemens
8PQ5000-5BA23

Separation position: rear duplex quantity of ACBs: 2 W: 800…

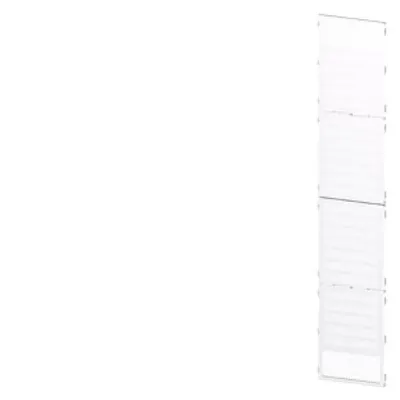

Siemens 8PQ5000-5BA21 – Separation position: rear duplex quantity of ACBs: 2 W: 400 mm D: 800/1200 mm
Siemens
8PQ5000-5BA21

Separation position: rear duplex quantity of ACBs: 2 W: 400…

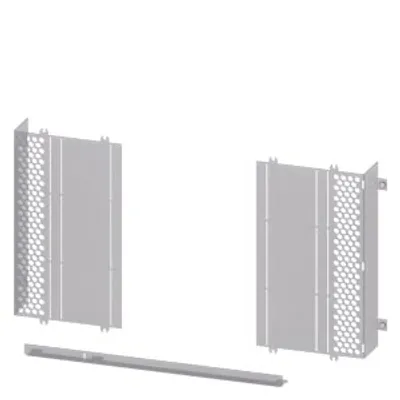

Siemens 8PQ5000-3BA81 – Separation 3WA size 2, 3 or 4-pole, fixed-mounted, withdrawable
Siemens
8PQ5000-3BA81

Separation 3WA size 2, 3 or 4-pole, fixed-mounted

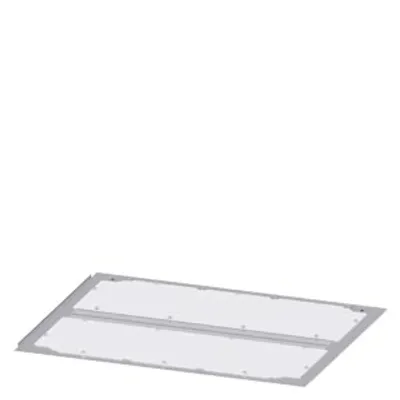

Siemens 8PQ2301-8BA07 – Roof plate with cable entry IP40, W: 1000 mm D: 800 mm
Siemens
8PQ2301-8BA07

Roof plate with cable entry IP40, W: 1000 mm D: 800 mm

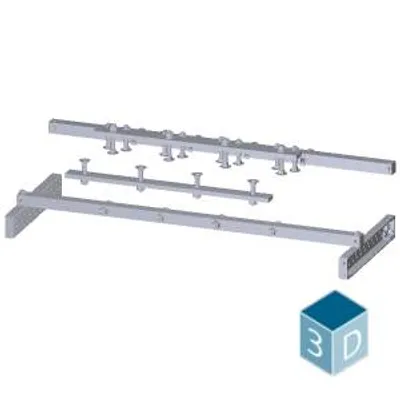

Siemens 8PQ6001-0BA81 – Cable connection 3WA size 2, 3 or 4-pole, W: 800 mm
Siemens
8PQ6001-0BA81

Cable connection 3WA size 2, 3 or 4-pole, W: 800 mm

Compare Main busbar rear

Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.

MPNproduct designationcolorwidthNet Weightmaterial
8PQ5000-5BA51separationmiscellaneous800 mm19.62 kgsheet-steel
8PQ5000-5BA50separationmiscellaneous600 mm14.2 kgsheet-steel
8PQ5000-5BA48separationmiscellaneous400 mm9.69 kgsheet-steel
8PQ3000-3BA67Barrier supportsmiscellaneous94 mm420 gsheet-steel
8PQ5000-5BA38separationmiscellaneous800 mm17.7 kgsheet-steel
8PQ5000-5BA36separationmiscellaneous600 mm15.9 kgsheet-steel
8PQ2025-6BA26Degree of protection upgrade IP55miscellaneous600 mm995 gsheet-steel
8PQ2025-6BA25Head compartment coverlight grey600 mm3.457 kgsheet-steel
8PQ2000-6BA11Base compartment coverlight grey600 mm2.74 kgsheet-steel
8PQ5000-5BA46Mechanical reinforcementmiscellaneous—23.56 kgsheet-steel
8PQ2025-4BA04Degree of protection upgrade IP55miscellaneous400 mm0.8 kgsheet-steel
8PQ2025-4BA03Head compartment coverlight grey400 mm2.4 kgsheet-steel
8PQ2000-6BA13Base compartment coverlight grey600 mm2.75 kgsheet-steel
8PQ2000-4BA06Base compartment coverlight grey400 mm1.8 kgsheet-steel
8PQ2000-4BA05Degree of protection upgrade IP55miscellaneous400 mm0.55 kgsheet-steel
8PQ2000-4BA04Base compartment coverlight grey400 mm1.975 kgsheet-steel
8PQ5000-5BA34separationmiscellaneous600 mm14.2 kgsheet-steel
8PQ5000-5BA32separationmiscellaneous400 mm12.61 kgsheet-steel
8PQ5000-5BA24separationmiscellaneous1 000 mm19.36 kgsheet-steel
8PQ5000-5BA23separationmiscellaneous800 mm15.2 kgsheet-steel
8PQ5000-5BA21separationmiscellaneous400 mm7.167 kgsheet-steel
8PQ5000-3BA81separationmiscellaneous800 mm924 gMetal / plastic
8PQ2301-8BA07top platemiscellaneous1 000 mm9.3 kgsheet-steel
