Actuators and indicators, 22 mm, round, plastic, black Parts
Compare Actuators and indicators, 22 mm, round, plastic, black
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | design of the actuating element | color of the actuating element | Net Weight | B10 value with high demand rate according to SN 31920 | mounting height |
|---|---|---|---|---|---|
| 3SU1002-2BM60-0AA0 | Selector, short | white | 22 g | 300 000 | 28.8 mm |
| 3SU1002-2BM50-0AA0-Z Y19 | Selector, short | blue | 22 g | 300 000 | 28.8 mm |
| 3SU1002-2BC60-0AA0-Z Y11 | Selector, short | white | 22 g | 500 000 | 28.8 mm |
| 3SU1002-2BC60-0AA0-Z Y10 | Selector, short | white | 22 g | 500 000 | 28.8 mm |
| 3SU1002-2BC60-0AA0-Z X90 | Selector, short | white | 22 g | 500 000 | 28.8 mm |
| 3SU1002-2BC60-0AA0 | Selector, short | white | 22 g | 500 000 | 28.8 mm |
| 3SU1002-2BC50-0AA0-Z Y19 | Selector, short | blue | 22 g | 500 000 | 28.8 mm |
| 3SU1002-2BC50-0AA0-Z Y15 | Selector, short | blue | 22 g | 500 000 | 28.8 mm |
| 3SU1002-2BC50-0AA0-Z Y12 | Selector, short | blue | 22 g | 500 000 | 28.8 mm |
| 3SU1002-2BC30-0AA0-Z Y10 | Selector, short | yellow | 22 g | 500 000 | 28.8 mm |
| 3SU1002-2BC30-0AA0-Z X90 | Selector, short | yellow | 22 g | 500 000 | 28.8 mm |
| 3SU1002-2BC30-0AA0 | Selector, short | yellow | 22 g | 500 000 | 28.8 mm |
| 3SU1002-2BC20-0AA0-Z Y19 | Selector, short | red | 22 g | 500 000 | 28.8 mm |
| 3SU1002-2BC20-0AA0-Z Y15 | Selector, short | red | 22 g | 500 000 | 28.8 mm |
| 3SU1002-2BC20-0AA0-Z Y12 | Selector, short | red | 22 g | 500 000 | 28.8 mm |
| 3SU1002-2BC20-0AA0-Z Y11 | Selector, short | red | 22 g | 500 000 | 28.8 mm |
| 3SU1001-0BB20-0AA0-Z Y12 | Raised button | red | 16 g | 3 000 000 | 16.2 mm |
| 3SU1001-0BB20-0AA0-Z Y11 | Raised button | red | 16 g | 3 000 000 | 16.2 mm |
| 3SU1001-0BB20-0AA0-Z Y10 | Raised button | red | 16 g | 3 000 000 | 16.2 mm |
| 3SU1001-0BB20-0AA0-Z X90 | Raised button | red | 16 g | 3 000 000 | 16.2 mm |

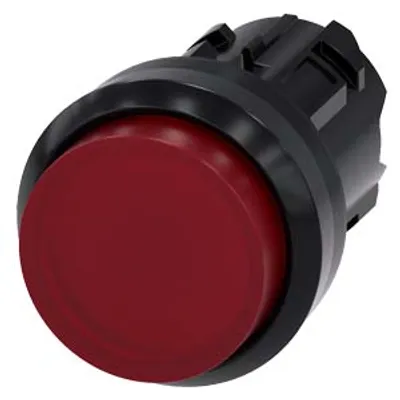

| 3SU1001-0BB20-0AA0 | Raised button | red | 16 g | 3 000 000 | 16.2 mm |
| 3SU1001-0AD70-0AA0-Z Y19 | Illuminated pushbutton design | clear | 0.014 kg | — | 11 mm |

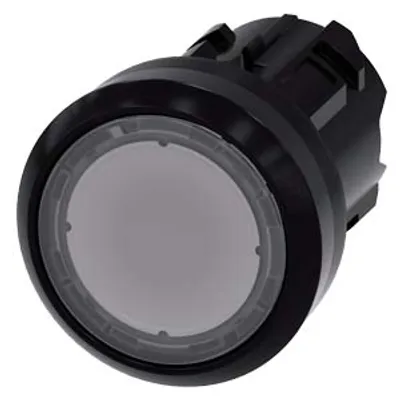

| 3SU1001-0AD70-0AA0-Z Y15 | Illuminated pushbutton design | clear | 0.014 kg | — | 11 mm |
| 3SU1001-1GB20-0AA0-Z Y11 | positive latching | — | 46 g | 100 000 | 44.2 mm |
Common to all listed parts
| number of command points | 1 |
| material of the actuating element | plastic |
| protection class IP | IP66, IP67, IP69(IP69K) |
| degree of protection NEMA rating | 1, 2, 3, 3R, 4, 4X, 12, 13 |
| reference code according to IEC 81346-2 | S |
| Substance Prohibitance (day/month/year) | 10/01/2014 |
| environmental category during operation according to IEC 60721 | 3M6, 3S2, 3B2, 3C3, 3K6 (with relative air humidity of 10 ... 95%) |
| shape of the installation opening | round |
