Actuators and indicators, 22 mm, round, plastic, black Parts
Compare Actuators and indicators, 22 mm, round, plastic, black
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | design of the actuating element | color of the actuating element | design of the front ring | mechanical service life (operating cycles) typical | Net Weight |
|---|---|---|---|---|---|
| 3SU1002-2BC50-0AA0-Z Y10 | Selector, short | blue | standard | 1 000 000 | 22 g |
| 3SU1002-2BC50-0AA0-Z X90 | Selector, short | blue | standard | 1 000 000 | 22 g |
| 3SU1002-2BC50-0AA0 | Selector, short | blue | standard | 1 000 000 | 22 g |
| 3SU1002-2BC40-0AA0-Z Y19 | Selector, short | green | standard | 1 000 000 | 22 g |
| 3SU1002-2BC40-0AA0-Z Y15 | Selector, short | green | standard | 1 000 000 | 22 g |
| 3SU1002-2BC40-0AA0-Z Y12 | Selector, short | green | standard | 1 000 000 | 22 g |
| 3SU1002-2BC20-0AA0-Z Y10 | Selector, short | red | standard | 1 000 000 | 22 g |
| 3SU1002-2BC20-0AA0-Z X90 | Selector, short | red | standard | 1 000 000 | 22 g |
| 3SU1002-2BC20-0AA0 | Selector, short | red | standard | 1 000 000 | 22 g |
| 3SU1002-2BC10-0AA0-Z Y19 | Selector, short | black | standard | 1 000 000 | 21 g |
| 3SU1002-2BC10-0AA0-Z Y15 | Selector, short | black | standard | 1 000 000 | 21 g |
| 3SU1002-2BC10-0AA0-Z Y12 | Selector, short | black | standard | 1 000 000 | 21 g |
| 3SU1002-2BC10-0AA0-Z Y11 | Selector, short | black | standard | 1 000 000 | 21 g |
| 3SU1001-0DB50-0AA0 | Flat button | blue | high with crenellations | 3 000 000 | 20 g |
| 3SU1001-0BB30-0AA0-Z Y10 | Raised button | yellow | Standard | 3 000 000 | 0.016 kg |
| 3SU1001-0BB30-0AA0-Z X90 | Raised button | yellow | Standard | 3 000 000 | 0.016 kg |
| 3SU1001-0BB30-0AA0 | Raised button | yellow | Standard | 3 000 000 | 0.016 kg |
| 3SU1001-0BB20-0AA0-Z Y19 | Raised button | red | Standard | 3 000 000 | 16 g |

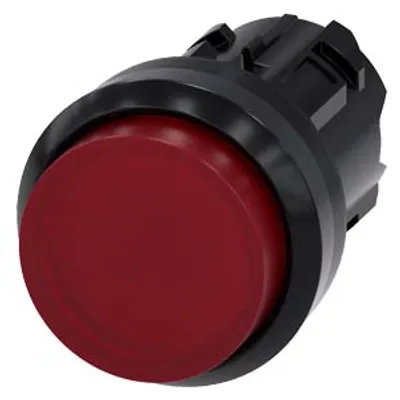

| 3SU1001-0BB20-0AA0-Z Y15 | Raised button | red | Standard | 3 000 000 | 16 g |
| 3SU1001-0BB20-0AA0-Z Y13 | Raised button | red | Standard | 3 000 000 | 16 g |
| 3SU1000-0BB40-0AA0-Z Y19 | Raised button | green | Standard | 10 000 000 | 0.016 kg |
| 3SU1000-0BB40-0AA0-Z Y15 | Raised button | green | Standard | 10 000 000 | 0.016 kg |
| 3SU1000-0BB40-0AA0-Z Y13 | Raised button | green | Standard | 10 000 000 | 0.016 kg |
| 3SU1000-0BB40-0AA0-Z Y12 | Raised button | green | Standard | 10 000 000 | 0.016 kg |
Common to all listed parts
| number of command points | 1 |
| material of the actuating element | plastic |
| product component front ring | Yes |
| material of the front ring | plastic |
| color of the front ring | black |
| protection class IP | IP66, IP67, IP69(IP69K) |
| degree of protection NEMA rating | 1, 2, 3, 3R, 4, 4X, 12, 13 |
| reference code according to IEC 81346-2 | S |
