Actuators and indicators, 22 mm, round, plastic, black Parts

Siemens

3SU1106-0AB60-3BA0-Z Y15

Illuminated pushbutton, 22 mm, round, plastic, white

Siemens

3SU1106-0AB60-3BA0-Z Y13

Illuminated pushbutton, 22 mm, round, plastic, white

Siemens

3SU1106-0AB60-3BA0-Z Y12

Illuminated pushbutton, 22 mm, round, plastic, white

Siemens

3SU1106-0AB60-3BA0-Z Y11

Illuminated pushbutton, 22 mm, round, plastic, white

Siemens

3SU1106-0AB60-3BA0-Z Y10

Illuminated pushbutton, 22 mm, round, plastic, white

Siemens

3SU1106-6AA70-1AA0-Z Y19

Indicator lights, 22 mm, round, plastic, clear, lens

Siemens

3SU1106-6AA70-1AA0-Z Y15

Indicator lights, 22 mm, round, plastic, clear, lens

Siemens

3SU1106-6AA70-1AA0-Z Y13

Indicator lights, 22 mm, round, plastic, clear, lens

Siemens

3SU1106-6AA70-1AA0-Z Y12

Indicator lights, 22 mm, round, plastic, clear, lens

Siemens

3SU1106-6AA50-1AA0-Z Y12

Indicator lights, 22 mm, round, plastic, blue, lens, smooth

Siemens

3SU1106-6AA50-1AA0-Z Y11

Indicator lights, 22 mm, round, plastic, blue, lens, smooth

Siemens

3SU1106-6AA50-1AA0-Z Y10

Indicator light, 22 mm, round, plastic, blue, lens, smooth

Siemens

3SU1106-6AA50-1AA0-Z X90

Indicator lights, 22 mm, round, plastic, blue, lens, smooth

Siemens

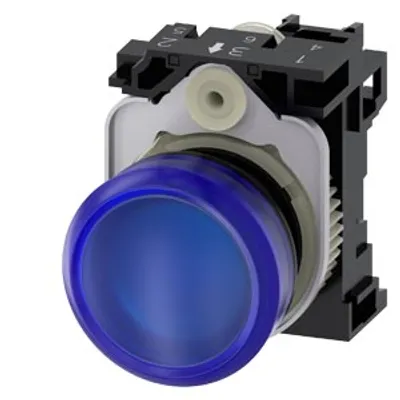

3SU1106-6AA50-1AA0

Indicator lights, 22 mm, round, plastic, blue, lens, smooth

Siemens

3SU1106-6AA40-3AA0-Z Y19

Indicator lights, 22 mm, round, plastic, green, lens

Siemens

3SU1106-6AA40-3AA0-Z Y15

Indicator lights, 22 mm, round, plastic, green, lens

Siemens

3SU1103-6AA60-1AA0-Z Y11

Indicator lights, 22 mm, round, plastic, white, lens

Siemens

3SU1103-6AA60-1AA0-Z Y10

Indicator light, 22 mm, round, plastic, white, lens, smooth

Siemens

3SU1103-6AA60-1AA0-Z X90

Indicator lights, 22 mm, round, plastic, white, lens

Siemens

3SU1103-6AA60-1AA0

Indicator lights, 22 mm, round, plastic, white, lens

Siemens

3SU1103-6AA50-3AA0-Z Y19

Indicator lights, 22 mm, round, plastic, blue, lens, smooth

Siemens

3SU1103-6AA50-3AA0-Z Y15

Indicator lights, 22 mm, round, plastic, blue, lens, smooth

Siemens

3SU1103-6AA50-3AA0-Z Y13

Indicator lights, 22 mm, round, plastic, blue, lens, smooth

Siemens

3SU1000-0DB10-0AA0

Pushbutton, 22 mm, round, plastic, black, Front ring

Compare Actuators and indicators, 22 mm, round, plastic, black

Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.

MPN	outer diameter of the actuating element	Net Weight	color of the light source	light intensity	mounting height
3SU1106-0AB60-3BA0-Z Y15	29.45 mm	54.5 g	white	900 ... 1 400 mcd	11 mm
3SU1106-0AB60-3BA0-Z Y13	29.45 mm	54.5 g	white	900 ... 1 400 mcd	11 mm
3SU1106-0AB60-3BA0-Z Y12	29.45 mm	54.5 g	white	900 ... 1 400 mcd	11 mm
3SU1106-0AB60-3BA0-Z Y11	29.45 mm	54.5 g	white	900 ... 1 400 mcd	11 mm
3SU1106-0AB60-3BA0-Z Y10	29.45 mm	54.5 g	white	900 ... 1 400 mcd	11 mm
3SU1106-6AA70-1AA0-Z Y19	29.45 mm	43 g	white	900 ... 1 400 mcd	11.8 mm
3SU1106-6AA70-1AA0-Z Y15	29.45 mm	43 g	white	900 ... 1 400 mcd	11.8 mm
3SU1106-6AA70-1AA0-Z Y13	29.45 mm	43 g	white	900 ... 1 400 mcd	11.8 mm
3SU1106-6AA70-1AA0-Z Y12	29.45 mm	43 g	white	900 ... 1 400 mcd	11.8 mm
3SU1106-6AA50-1AA0-Z Y12	29.45 mm	43 g	blue	280 ... 710 mcd	11.8 mm
3SU1106-6AA50-1AA0-Z Y11	29.45 mm	43 g	blue	280 ... 710 mcd	11.8 mm
3SU1106-6AA50-1AA0-Z Y10	29.45 mm	43 g	blue	280 ... 710 mcd	11.8 mm
3SU1106-6AA50-1AA0-Z X90	29.45 mm	43 g	blue	280 ... 710 mcd	11.8 mm
3SU1106-6AA50-1AA0	29.45 mm	43 g	blue	280 ... 710 mcd	11.8 mm
3SU1106-6AA40-3AA0-Z Y19	29.45 mm	39.5 g	green	900 ... 1 800 mcd	11.8 mm
3SU1106-6AA40-3AA0-Z Y15	29.45 mm	39.5 g	green	900 ... 1 800 mcd	11.8 mm
3SU1103-6AA60-1AA0-Z Y11	29.45 mm	43 g	white	900 ... 1 400 mcd	11.8 mm
3SU1103-6AA60-1AA0-Z Y10	29.45 mm	43 g	white	900 ... 1 400 mcd	11.8 mm
3SU1103-6AA60-1AA0-Z X90	29.45 mm	43 g	white	900 ... 1 400 mcd	11.8 mm
3SU1103-6AA60-1AA0	29.45 mm	43 g	white	900 ... 1 400 mcd	11.8 mm
3SU1103-6AA50-3AA0-Z Y19	29.45 mm	57.5 g	blue	280 ... 710 mcd	11.8 mm
3SU1103-6AA50-3AA0-Z Y15	29.45 mm	57.5 g	blue	280 ... 710 mcd	11.8 mm
3SU1103-6AA50-3AA0-Z Y13	29.45 mm	57.5 g	blue	280 ... 710 mcd	11.8 mm
3SU1000-0DB10-0AA0	29.5 mm	20 g	—	—	18.1 mm

Common to all listed parts

material of the actuating element	plastic
shape of the actuating element	round
protection class IP	IP66, IP67, IP69(IP69K)
degree of protection NEMA rating	1, 2, 3, 3R, 4, 4X, 12, 13
Substance Prohibitance (day/month/year)	10/01/2014
shape of the installation opening	round
mounting diameter	22.3 mm
positive tolerance of installation diameter	0.4 mm
