Actuators and indicators, 22 mm, round, plastic, black Parts
Compare Actuators and indicators, 22 mm, round, plastic, black
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | design of the actuating element | color of the actuating element | mechanical service life (operating cycles) typical | Net Weight | B10 value with high demand rate according to SN 31920 |
|---|---|---|---|---|---|
| 3SU1103-0AB40-3FA0-Z Y19 | Button, flat | green | 3 000 000 | 60.5 g | 3 000 000 |
| 3SU1103-0AB40-3FA0-Z Y15 | Button, flat | green | 3 000 000 | 60.5 g | 3 000 000 |
| 3SU1103-0AB40-3FA0-Z Y13 | Button, flat | green | 3 000 000 | 60.5 g | 3 000 000 |
| 3SU1103-0AB40-3FA0-Z Y12 | Button, flat | green | 3 000 000 | 60.5 g | 3 000 000 |
| 3SU1103-0AB40-3FA0-Z Y11 | Button, flat | green | 3 000 000 | 60.5 g | 3 000 000 |
| 3SU1103-0AB40-3FA0-Z Y10 | Button, flat | green | 3 000 000 | 60.5 g | 3 000 000 |
| 3SU1100-0AB50-3BA0 | Button, flat | blue | 10 000 000 | 47.5 g | 10 000 000 |

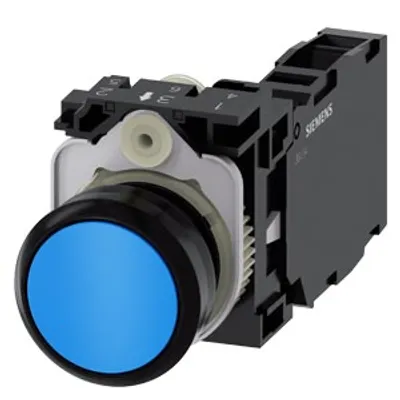

| 3SU1100-0AB50-1FA0-Z Y19 | Button, flat | blue | 10 000 000 | 54.5 g | 10 000 000 |
| 3SU1100-0AB50-1FA0-Z Y15 | Button, flat | blue | 10 000 000 | 54.5 g | 10 000 000 |
| 3SU1100-0AB50-1FA0-Z Y13 | Button, flat | blue | 10 000 000 | 54.5 g | 10 000 000 |
| 3SU1100-0AB50-1FA0-Z Y12 | Button, flat | blue | 10 000 000 | 54.5 g | 10 000 000 |
| 3SU1100-0AB50-1FA0-Z Y11 | Button, flat | blue | 10 000 000 | 54.5 g | 10 000 000 |
| 3SU1100-0AB50-1FA0-Z Y10 | Button, flat | blue | 10 000 000 | 54.5 g | 10 000 000 |
| 3SU1000-1HA20-0AA0-Z Y19 | positive latching | — | 300 000 | 48 g | 100 000 |
| 3SU1000-1HA20-0AA0-Z Y10 | positive latching | — | 300 000 | 48 g | 100 000 |
| 3SU1000-1HA20-0AA0-Z X90 | positive latching | — | 300 000 | 48 g | 100 000 |
| 3SU1000-1HA20-0AA0 | positive latching | — | 300 000 | 48 g | 100 000 |
| 3SU1100-0BB20-1CA0-Z Y13 | Button, raised | red | 10 000 000 | 45.5 g | 10 000 000 |
| 3SU1100-0BB20-1CA0-Z Y12 | Button, raised | red | 10 000 000 | 45.5 g | 10 000 000 |
| 3SU1100-0BB20-1CA0-Z Y11 | Button, raised | red | 10 000 000 | 45.5 g | 10 000 000 |
| 3SU1100-0BB20-1CA0-Z Y10 | Button, raised | red | 10 000 000 | 45.5 g | 10 000 000 |
| 3SU1100-0BB10-1FA0-Z Y10 | Button, raised | black | 10 000 000 | 55.5 g | 10 000 000 |
| 3SU1100-0BB10-1FA0-Z X90 | Button, raised | black | 10 000 000 | 55.5 g | 10 000 000 |
| 3SU1100-0BB10-1FA0 | Button, raised | black | 10 000 000 | 55.5 g | 10 000 000 |
Common to all listed parts
| material of the actuating element | plastic |
| shape of the actuating element | round |
| protection class IP | IP66, IP67, IP69(IP69K) |
| degree of protection NEMA rating | 1, 2, 3, 3R, 4, 4X, 12, 13 |
| reference code according to IEC 81346-2 | S |
| Substance Prohibitance (day/month/year) | 10/01/2014 |
| product function suitable for safety function | Yes |
| test wear-related service life necessary | Yes |
