Device compartment Parts
Compare Device compartment
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | product designation | protection class IP | height | width | Net Weight |
|---|---|---|---|---|---|

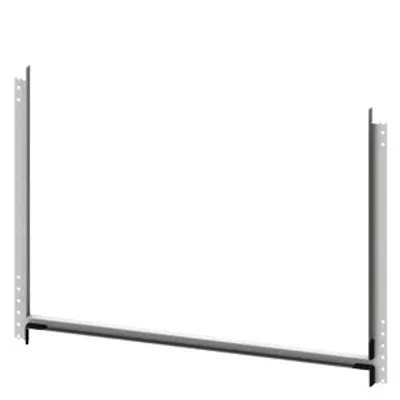

| 8PQ2055-8BA06 | Degree of protection upgrade IP55 | IP55 | 550 mm | 800 mm | 1.29 kg |

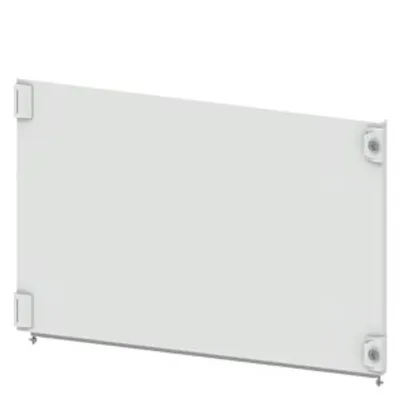

| 8PQ2055-8BA03 | Compartment door | IP40 | 550 mm | 800 mm | 8.231 kg |

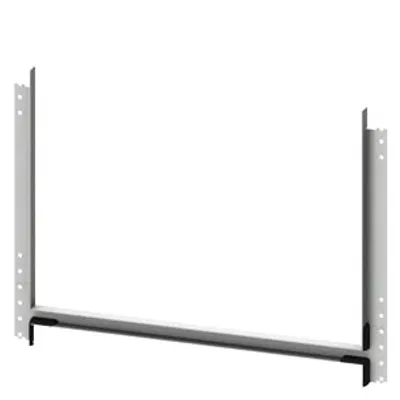

| 8PQ2040-8BA13 | Degree of protection upgrade IP55 | IP55 | 400 mm | 800 mm | 1.1 kg |

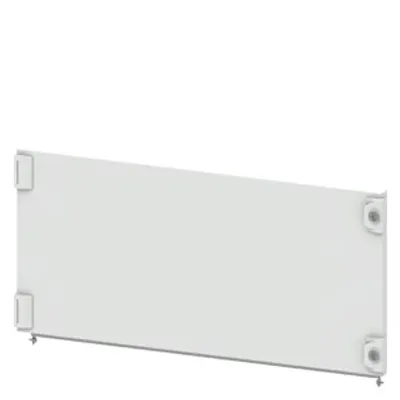

| 8PQ2040-8BA12 | Compartment door | IP40 | 400 mm | 800 mm | 6.5 kg |
| 8PQ2050-8BA04 | Degree of protection upgrade IP55 | IP55 | 500 mm | 800 mm | 1.2 kg |

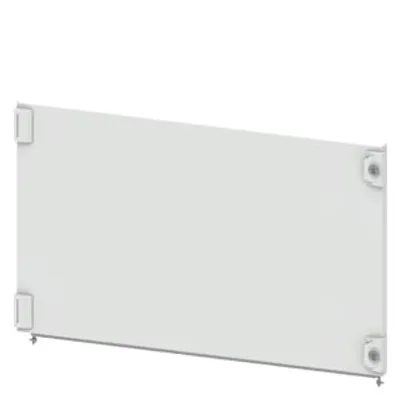

| 8PQ2050-8BA03 | Compartment door | IP40 | 500 mm | 800 mm | 7.72 kg |

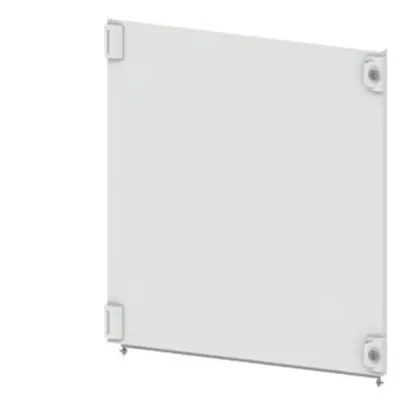

| 8PQ2070-6BA03 | Compartment door | IP40 | 700 mm | 600 mm | 7.476 kg |

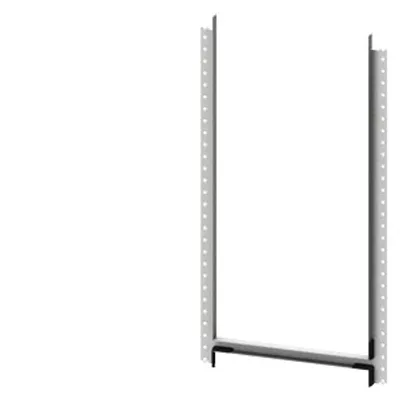

| 8PQ2070-4BA08 | Degree of protection upgrade IP55 | IP55 | 700 mm | 400 mm | 1.128 kg |

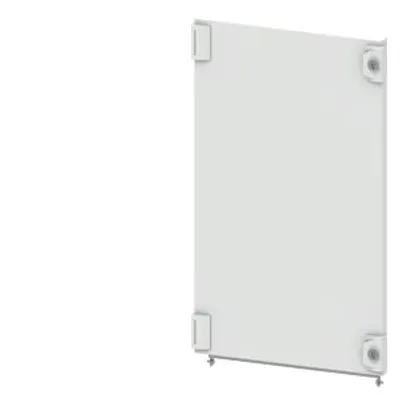

| 8PQ2070-4BA07 | Compartment door | IP40 | 700 mm | 400 mm | 5.175 kg |

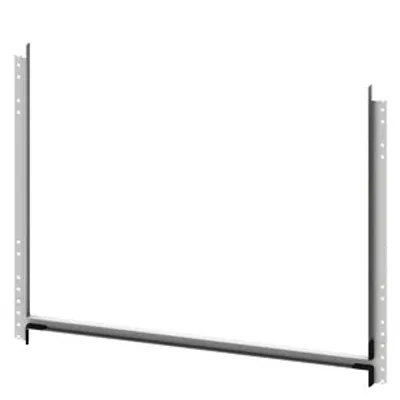

| 8PQ2060-8BA05 | Degree of protection upgrade IP55 | IP55 | 600 mm | 800 mm | 1.366 kg |

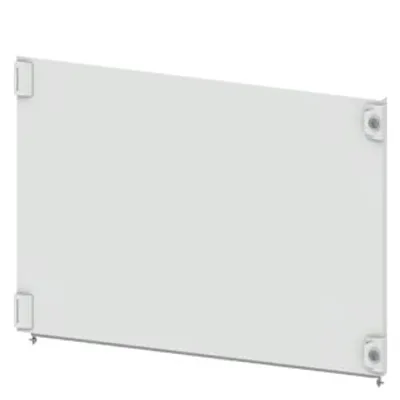

| 8PQ2060-8BA04 | Compartment door | IP40 | 600 mm | 800 mm | 8.5 kg |

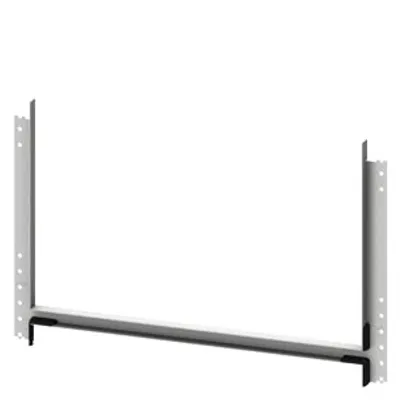

| 8PQ2035-6BA13 | Degree of protection upgrade IP55 | IP55 | 350 mm | 600 mm | 863 g |

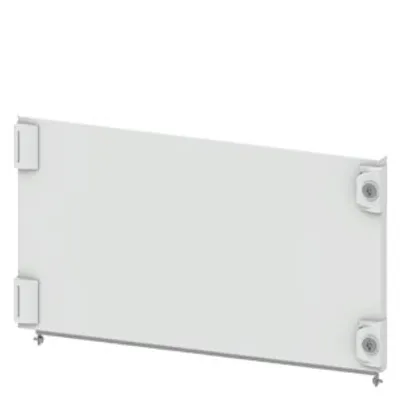

| 8PQ2035-6BA12 | Compartment door | IP40 | 350 mm | 600 mm | 4.55 kg |

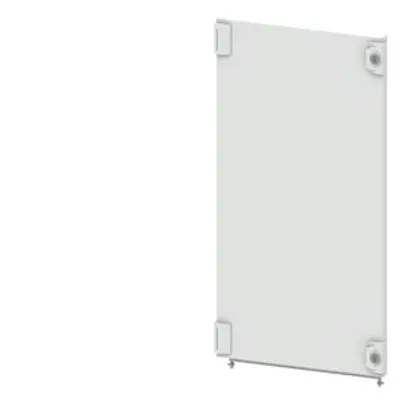

| 8PQ2080-4BA01 | Compartment door | IP40 | 800 mm | 400 mm | 5.54 kg |

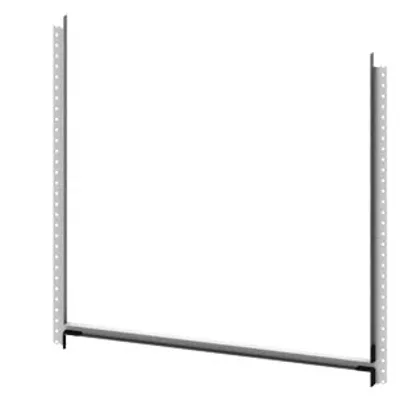

| 8PQ2075-8BA02 | Degree of protection upgrade IP55 | IP55 | — | — | 1.492 kg |

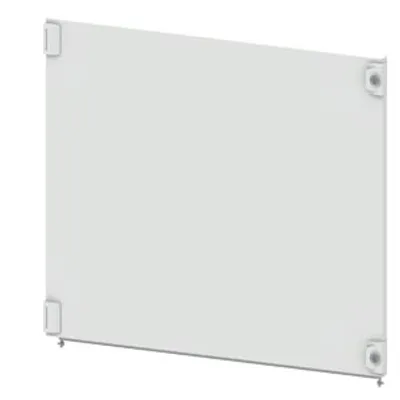

| 8PQ2075-8BA01 | Compartment door | IP40 | 750 mm | 800 mm | 10.5 kg |

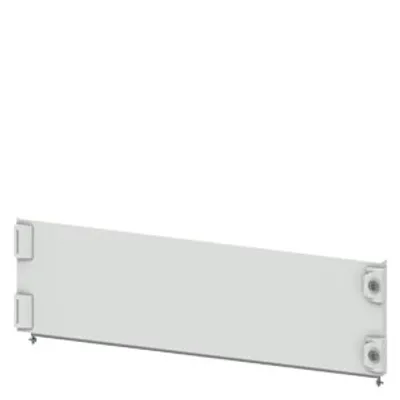

| 8PQ2025-8BA04 | Compartment door | IP40 | 250 mm | 800 mm | 4.9 kg |

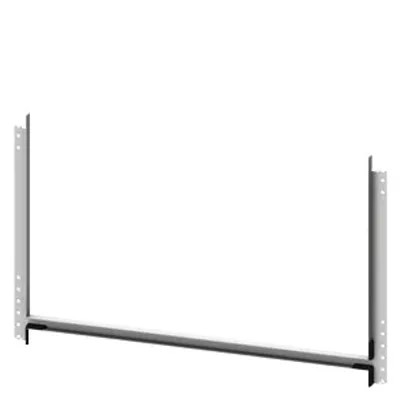

| 8PQ2045-8BA04 | Degree of protection upgrade IP55 | IP55 | 450 mm | 800 mm | 1.14 kg |

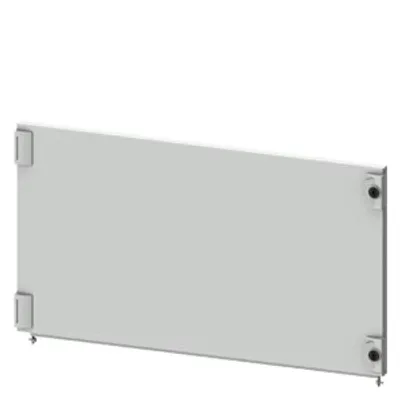

| 8PQ2045-8BA03 | Compartment door | IP40 | 450 mm | 800 mm | 7.03 kg |

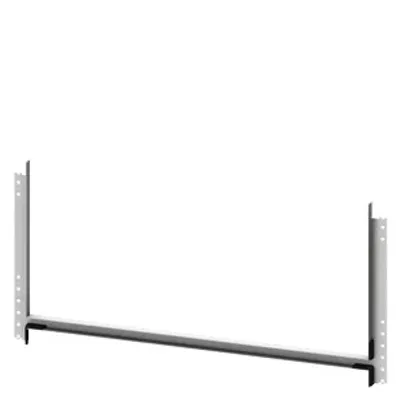

| 8PQ2035-8BA07 | Degree of protection upgrade IP55 | IP55 | 350 mm | 800 mm | 1.043 kg |

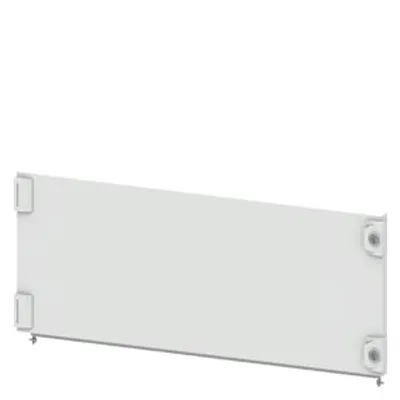

| 8PQ2035-8BA06 | Compartment door | IP40 | 350 mm | 800 mm | 5.946 kg |

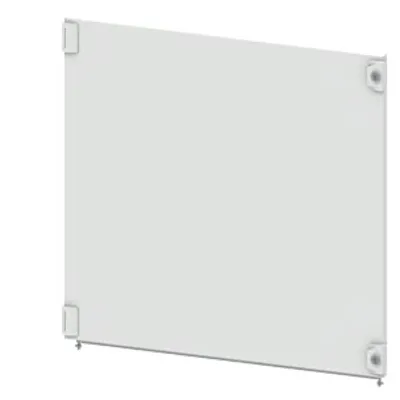

| 8PQ2080-8BA03 | Compartment door | IP40 | 800 mm | 800 mm | 11 kg |

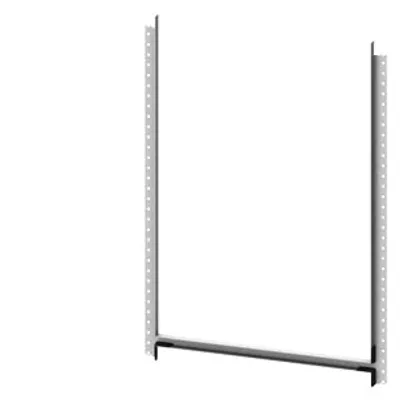

| 8PQ2080-6BA04 | Degree of protection upgrade IP55 | IP55 | 800 mm | 600 mm | 1.41 kg |

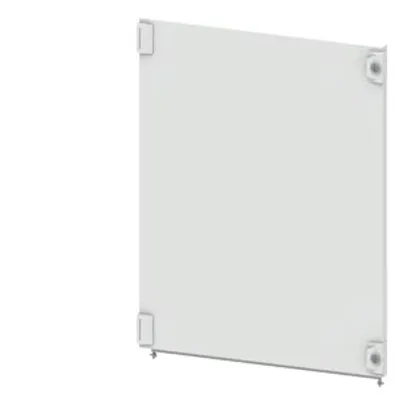

| 8PQ2080-6BA03 | Compartment door | IP40 | 800 mm | 600 mm | 8.3 kg |
