SIVACON 8MF2, 8MF5 and 8MF6 System Cubicles Parts
Compare SIVACON 8MF2, 8MF5 and 8MF6 System Cubicles
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | product designation | height | width | depth | Net Weight |
|---|---|---|---|---|---|
| 8MF6824-5R | standard system cubicle | 1 800 mm | 1 200 mm | 400 mm | 115 kg |
| 8MF6824-5E | standard system cubicle | 1 800 mm | 1 200 mm | 400 mm | 115 kg |
| 8MF6824-4R | standard system cubicle | 1 800 mm | 1 200 mm | 400 mm | 115 kg |
| 8MF5898-5R | standard system cubicle | 1 800 mm | 900 mm | 800 mm | 120 kg |
| 8MF5884-4E | standard system cubicle | 1 800 mm | 800 mm | 400 mm | 95 kg |
| 8MF5868-5R | standard system cubicle | 1 800 mm | 600 mm | 800 mm | 100 kg |
| 8MF5868-5E | standard system cubicle | 1 800 mm | 600 mm | 800 mm | 100 kg |
| 8MF5868-4R | standard system cubicle | 1 800 mm | 600 mm | 800 mm | 100 kg |
| 8MF5868-4ES | EMC cubicle | 1 800 mm | 600 mm | 800 mm | 110 kg |
| 8MF5868-4E | standard system cubicle | 1 800 mm | 600 mm | 800 mm | 100 kg |
| 8MF5866-5R | standard system cubicle | 1 800 mm | 600 mm | 600 mm | 90 kg |
| 8MF5226-4R | standard system cubicle | 2 200 mm | 1 200 mm | 600 mm | 195 kg |

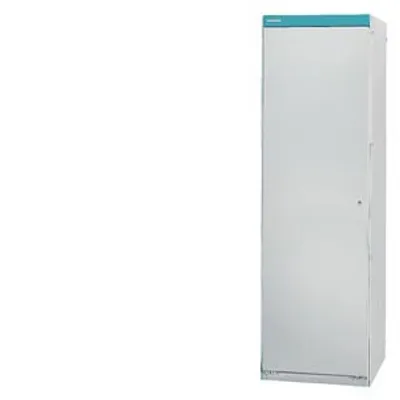

| 8MF5226-4E | standard system cubicle | 2 200 mm | 1 200 mm | 600 mm | 195 kg |
| 8MF5224-5R | standard system cubicle | 2 200 mm | 1 200 mm | 400 mm | 185 kg |
| 8MF5224-5E | standard system cubicle | 2 200 mm | 1 200 mm | 400 mm | 185 kg |
| 8MF5224-4R | standard system cubicle | 2 200 mm | 1 200 mm | 400 mm | 185 kg |
| 8MF5224-4E | standard system cubicle | 2 200 mm | 1 200 mm | 400 mm | 185 kg |
| 8MF5098-5R | standard system cubicle | 2 000 mm | 900 mm | 800 mm | 145 kg |
| 8MF4922 | serrated bar | — | 600 mm | — | 1.184 kg |
| 8MF9082 | operating mandrel | — | — | — | 0.015 kg |
| 8MF9081 | operating mandrel | — | — | — | 0.015 kg |
| 8ME1465 | supporting bar | — | 800 mm | — | 1.771 kg |
| 8ME1464 | supporting bar | — | 600 mm | — | 1.339 kg |
| 8MF4845 | shelf with telescopic rails | — | 800 mm | 400 mm | 6.098 kg |
