SIVACON 8MF2, 8MF5 and 8MF6 System Cubicles Parts
Compare SIVACON 8MF2, 8MF5 and 8MF6 System Cubicles
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | product designation | Net Weight | material | width | depth |
|---|---|---|---|---|---|

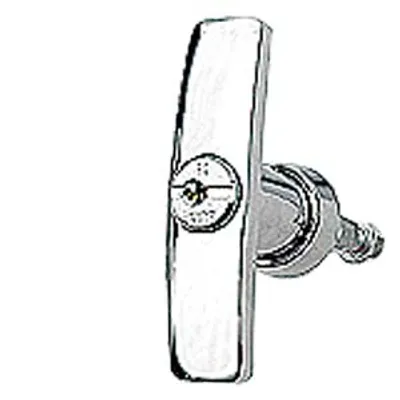

| 8MF9070 | twist handle | 0.165 kg | corrosion-free steel | — | — |
| 8MF6898-4E | standard system cubicle | 120 kg | steel | 900 mm | 800 mm |
| 8MF6896-5R | standard system cubicle | 110 kg | steel | 900 mm | 600 mm |
| 8MF6896-5E | standard system cubicle | 110 kg | steel | 900 mm | 600 mm |
| 8MF6886-4R | standard system cubicle | 100 kg | steel | 800 mm | 600 mm |
| 8MF6886-4ES | EMC cubicle | 110 kg | steel | 800 mm | 600 mm |
| 8MF6886-4E | standard system cubicle | 100 kg | steel | 800 mm | 600 mm |
| 8MF6884-5R | standard system cubicle | 95 kg | steel | 800 mm | 400 mm |
| 8MF6884-5E | standard system cubicle | 95 kg | steel | 800 mm | 400 mm |
| 8MF6884-4R | standard system cubicle | 95 kg | steel | 800 mm | 400 mm |
| 8MF5284-4E | standard system cubicle | 135 kg | steel | 800 mm | 400 mm |
| 8MF5268-5R | standard system cubicle | 145 kg | steel | 600 mm | 800 mm |
| 8MF5268-5E | standard system cubicle | 145 kg | steel | 600 mm | 800 mm |
| 8MF5268-4R | standard system cubicle | 135 kg | steel | 600 mm | 800 mm |

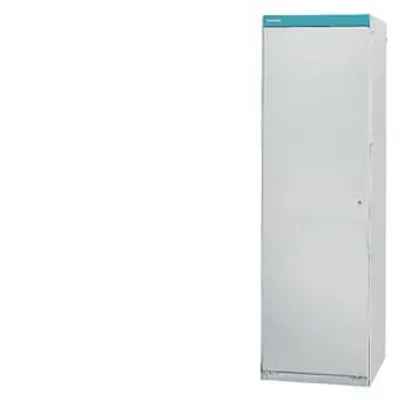

| 8MF5268-4ES | EMC cubicle | 155 kg | steel | 600 mm | 800 mm |
| 8MF5268-4E | standard system cubicle | 145 kg | steel | 600 mm | 800 mm |
| 8MF5266-5R | standard system cubicle | 135 kg | steel | 600 mm | 600 mm |

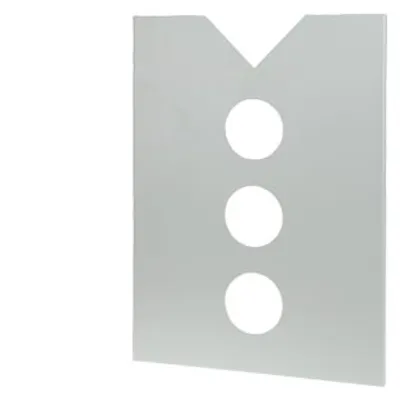

| 8MF4303 | circuit drawings pocket | 1.621 kg | sheet-steel | 297 mm | 50 mm |
| 8MF4302 | circuit drawings pocket | 1.472 kg | sheet-steel | 210 mm | 75 mm |

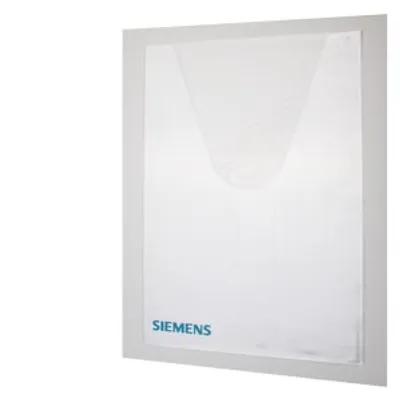

| 8MF4301 | circuit drawings pocket | 241 g | plastic | 210 mm | 30 mm |
| 8MF6826-5R | standard system cubicle | 125 kg | steel | 1 200 mm | 600 mm |
| 8MF6826-5E | standard system cubicle | 125 kg | steel | 1 200 mm | 600 mm |
| 8MF6826-4R | standard system cubicle | 125 kg | steel | 1 200 mm | 600 mm |
| 8MF6826-4E | standard system cubicle | 125 kg | steel | 1 200 mm | 600 mm |
