Compare Segment Coupler for PROFIBUS PA
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Order code (Pepperl+Fuchs part number) | Rated current | Power dissipation | Mass | Certificate |
|---|

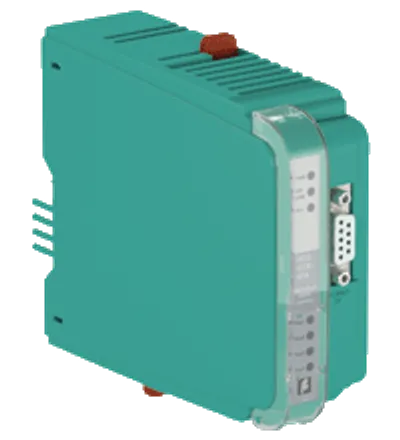

| HD2-GTR-4PA | 70169372 | 150 ... 95 mA Ir | 3 W | 250 g | TÜV 04 ATEX 2500 X |
| HD2-FBPS-1.500 | 255742 | 910 ... 490 mA Ir | typ. 1.8 W | approx. 150 g | TÜV 04 ATEX 2500 X |
| HD2-FBPS-1.23.500 | 255746 | 700 ... 390 mA Ir | typ. 1.5 W | approx. 150 g | TÜV 04 ATEX 2500 X |
| HD2-FBPS-1.17.500 | 255753 | 520 ... 290 mA Ir | typ. 1.3 W | approx. 150 g | TÜV 04 ATEX 2500 X |
| MB-FB-GTR1* | T177581 | 2 ... 3 A Ir | — | approx. 300 g | TÜV 15 ATEX 7735 X |
| HD2-GTR-4PA.PN | 283822 | typ. 135 mA Ir | approx. 3.5 W | 250 g | TÜV 15 ATEX 7735 X |
| KFD2-BR-1.PA.1500 | 277830 | 640 mA ... 365 mA Ir | max 2.5 W | 180 g | TÜV 16 ATEX 7831 X |
| HD2-FBPS-1.25.360 | 189516 | 670 ... 360 mA Ir | typ. 2 W | approx. 150 g | TÜV 06 ATEX 553229 X |
| KFD2-BR-Ex1.3PA.93 | 098314 | 190 mA ... 430 mA Ir | — | 650 g | PF 15 CERT 3527 X |
| HCD2-FBPS-1.23.500 | 275283 | 500 ... 10 mA IN | typ. 1.2 W | approx. 150 g | TÜV 10 ATEX 555761X |
| MBHC-FB-4.GT* | T177582 | 12 A Ir | typ. 0.4 W per segment | approx. 540 g | TÜV 15 ATEX 7735 X |
| HCD2-FBPS-1.500 | 275280 | 500 ... 10 mA IN | typ. 1.6 W | approx. 150 g | TÜV 10 ATEX 555761X |
| MBHC-FB-8R.HSC* | T169722 | 16 A Ir | typ. 0.4 W per segment | approx. 1350 g | TÜV 10 ATEX 555761X |
| MBHC-FB-4.HSC* | T169684 | 12 A Ir | typ. 0.4 W per segment | approx. 540 g | TÜV 10 ATEX 555761X |
| MBHC-FB-4R.HSC* | T169683 | 12 A Ir | typ. 0.4 W per segment | approx. 580 g | TÜV 10 ATEX 555761X |
Common to all listed parts
| Installation in hazardous area | Zone 2 / Div. 2 |
| Lifecycle | Active (current Pepperl+Fuchs product) |
| Electromagnetic compatibility: Directive 2014/30/EU | EN 61326-1:2013 |
| Storage temperature | -40 ... 85 °C (-40 ... 185 °F) |
| Housing material | Polycarbonate |
