Directional on/off valve Parts

Bosch Rexroth

R901350241

DIRECTIONAL SPOOL VALVE 4WE10C5X/OEG24N9K4/M

Bosch Rexroth

R901565514

DIRECTIONAL SPOOL VALVE 4WE10C5X/OEG24N9DK6L/M

Bosch Rexroth

R901560203

DIRECTIONAL SPOOL VALVE 4WE10C5X/OEG24N8J3DL/M

Bosch Rexroth

R901348412

DIRECTIONAL SPOOL VALVE 4WE10C5X/OEG205N9K4/M

Bosch Rexroth

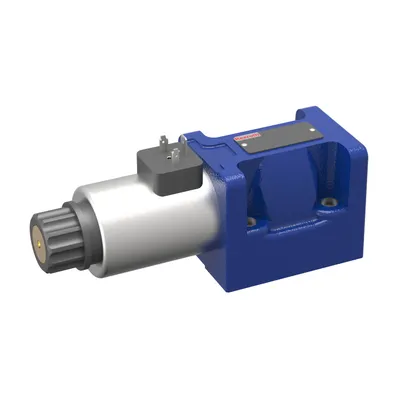

R901391203

DIRECTIONAL SPOOL VALVE 4WE10C5X/HG24N9K4/M

Bosch Rexroth

R901544657

DIRECTIONAL SPOOL VALVE 4WE10C5X/EW230RN9DK6L/M

Bosch Rexroth

R901543266

DIRECTIONAL SPOOL VALVE 4WE10C5X/EW230N9K4/V

Bosch Rexroth

R901487117

DIRECTIONAL SPOOL VALVE 4WE10C5X/EW230N9K4/M

Bosch Rexroth

R901523639

DIRECTIONAL SPOOL VALVE 4WE10C5X/EW200N9K4/M

Bosch Rexroth

R901554128

DIRECTIONAL SPOOL VALVE 4WE10C5X/EW200N9DL/M

Bosch Rexroth

R901434234

DIRECTIONAL SPOOL VALVE 4WE10C5X/EW120RN9DK6L/B10V

Bosch Rexroth

R901536819

DIRECTIONAL SPOOL VALVE 4WE10C5X/EW120N9K4/V

Bosch Rexroth

R901487112

DIRECTIONAL SPOOL VALVE 4WE10C5X/EW120N9K4/M

Bosch Rexroth

R901573570

DIRECTIONAL SPOOL VALVE 4WE10C5X/EW120N9DAL/V

Bosch Rexroth

R901569329

DIRECTIONAL SPOOL VALVE 4WE10C5X/EW120N9DAL/M

Bosch Rexroth

R901466463

DIRECTIONAL SPOOL VALVE 4WE10C5X/EW110RN9DAL/M

Bosch Rexroth

R901554125

DIRECTIONAL SPOOL VALVE 4WE10C5X/EW100N9DL/M

Bosch Rexroth

R901358446

DIRECTIONAL SPOOL VALVE 4WE10C5X/EG96N9K4/V

Bosch Rexroth

R901374349

DIRECTIONAL SPOOL VALVE 4WE10C5X/EG96N9K4/MH

Bosch Rexroth

R901324560

DIRECTIONAL SPOOL VALVE 4WE10C5X/EG96N9K4/M

Bosch Rexroth

R901485758

DIRECTIONAL SPOOL VALVE 4WE10C5X/EG26N9C4Z/M

Bosch Rexroth

R901365894

DIRECTIONAL SPOOL VALVE 4WE10C5X/EG24N9K72L/MH

Bosch Rexroth

R901384323

DIRECTIONAL SPOOL VALVE 4WE10C5X/EG24N9K72L/M

Bosch Rexroth

R901376290

DIRECTIONAL SPOOL VALVE 4WE10C5X/EG24N9K4K/M

Compare Directional on/off valve

Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.

MPN	Max. flow [l/min]	Supply voltage	Electrical connector	Seals	Weight [kg]
R901350241	135.0	24 VDC	Connector, 3-pole (2 + PE)	NBR	5.5
R901565514	135.0	24 VDC	Connector, 7-pole (6 + PE)	NBR	5.5
R901560203	135.0	24 VDC	Cable gland	NBR	5.6
R901348412	135.0	205 VDC	Connector, 3-pole (2 + PE)	NBR	5.5
R901391203	135.0	24 VDC	Connector, 3-pole (2 + PE)	NBR	3.28
R901544657	131.0	230 VAC 50/60Hz	Connector, 7-pole (6 + PE)	NBR	4
R901543266	131.0	230 VAC 50/60Hz	Connector, 3-pole (2 + PE)	FKM	3.24
R901487117	131.0	230 VAC 50/60Hz	Connector, 3-pole (2 + PE)	NBR	3.3
R901523639	131.0	200 VAC 50Hz	Connector, 3-pole (2 + PE)	NBR	3.29
R901554128	131.0	200 VAC 50Hz	Cable gland	NBR	0
R901434234	96.0	120 VAC (mit Gleichrichter)	Connector, 7-pole (6 + PE)	FKM	4.08
R901536819	96.0	120 VAC 50/60Hz	Connector, 3-pole (2 + PE)	FKM	3.2
R901487112	96.0	120 VAC 50/60Hz	Connector, 3-pole (2 + PE)	NBR	3.3
R901573570	96.0	120 VAC 50/60Hz	Cable gland	FKM	3.28
R901569329	96.0	120 VAC 50/60Hz	Cable gland	NBR	3.28
R901466463	96.0	110 VAC (mit Gleichrichter)	Cable gland	NBR	6.05
R901554125	96.0	100 VAC 50/60Hz	Cable gland	NBR	0
R901358446	135.0	96 VDC	Connector, 3-pole (2 + PE)	FKM	4
R901374349	135.0	96 VDC	Connector, 3-pole (2 + PE)	NBR (HFC)	4.78
R901324560	135.0	96 VDC	Connector, 3-pole (2 + PE)	NBR	4
R901485758	135.0	26 VDC	Connector, 2-pole (Junior-Timer)	NBR	4
R901365894	135.0	24 VDC	Connector, 4-pole, M12 x 1, coding A	NBR (HFC)	4
R901384323	135.0	24 VDC	Connector, 4-pole, M12 x 1, coding A	NBR	4
R901376290	135.0	24 VDC	Connector, 3-pole (2 + PE)	NBR	4

Common to all listed parts

Connection diagram	ISO 4401-05-04-0-05
Spool symbol	Symbol C
Type of connection	Subplate mounting
Size	10
Type of actuation	with solenoid actuation
Number of ports	4
Number of switching positions	2
Electrical connection description	Connector 3-pole (2 + PE) according to EN 175301-803
