Directional on/off valve Parts
Compare Directional on/off valve
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Product family | Max. flow [l/min] | Supply voltage | Seals | Weight [kg] |
|---|---|---|---|---|---|
| R901442766 | WE10../E | 135.0 | 125 VDC | NBR | 4.08 |
| R901567730 | WE10../E | 135.0 | 125 VDC | NBR | 4.2 |
| R901382182 | WE10../E | 135.0 | 110 VDC | FKM | 4.1 |
| R901446926 | WE10../E | 135.0 | 110 VDC | NBR (HFC) | 4.01 |
| R901381370 | WE10../E | 135.0 | 110 VDC | NBR | 4.1 |
| R901394875 | WE10../E | 135.0 | 110 VDC | NBR | 4.02 |
| R901369230 | WE10../E | 135.0 | 110 VDC | FKM | 4.1 |
| R901371153 | WE10../E | 135.0 | 110 VDC | FKM | 4.1 |
| R901483977 | WE10../E | 135.0 | 110 VDC | NBR | 4.1 |
| R901569002 | WE10../E | 135.0 | 110 VDC | NBR | 4.05 |
| R901350413 | WE10../E | 135.0 | 96 VDC | NBR | 4 |
| R901451367 | WE10../E | 135.0 | 24 VDC | FKM | 4 |
| R901326859 | WE10../E | 135.0 | 24 VDC | NBR (HFC) | 4.03 |
| R901346327 | WE10../E | 135.0 | 24 VDC | NBR | 4 |
| R901425025 | WE10../E | 135.0 | 24 VDC | NBR | 4.78 |
| R901408816 | WE10../E | 135.0 | 12 VDC | NBR | 4 |
| R900915652 | WE 10...C | 120.0 | 230 VAC 50/60Hz | NBR | 4.44 |
| R900906132 | WE 10...C | 120.0 | 110…120 VAC 50/60 Hz | FKM | 4.42 |
| R900594948 | WE 10...C | 120.0 | 110…120 VAC 50/60 Hz | NBR | 4.42 |
| R900912496 | WE 10...C | 120.0 | 230 VAC 50/60Hz | NBR | 3.68 |

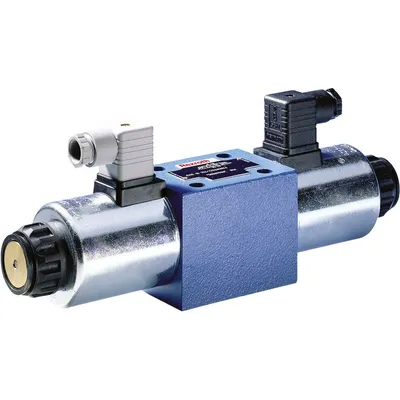

| R900914099 | WE 10...C | 120.0 | 110…120 VAC 50/60 Hz | FKM | 3.68 |
| R900598925 | WE 10...C | 120.0 | 110…120 VAC 50/60 Hz | NBR | 3.68 |
| R901494548 | WE10../E | 131.0 | 230 VAC (mit Gleichrichter) | NBR | 5.5 |
| R901569467 | WE10../E | 96.0 | 110…120 VAC | FKM | 5.6 |
Common to all listed parts
| Connection diagram | ISO 4401-05-04-0-05 |
| Type of connection | Subplate mounting |
| Size | 10 |
| Type of actuation | with solenoid actuation |
| Number of ports | 4 |
| Electrical connection description | Connector 3-pole (2 + PE) according to EN 175301-803 |
