Directional on/off valve Parts

Bosch Rexroth

R901434701

DIRECTIONAL SPOOL VALVE 4WE10H5X/EG110N9K4/B12M

Bosch Rexroth

R901492367

DIRECTIONAL SPOOL VALVE 4WE10H5X/DEW110RN9DL/V

Bosch Rexroth

R901352632

DIRECTIONAL SPOOL VALVE 4WE10H5X/DEG24N9K4/M

Bosch Rexroth

R901437317

DIRECTIONAL SPOOL VALVE 4WE10H5X/DEG24N8J3DL/T12M

Bosch Rexroth

R900503425

DIRECTIONAL SPOOL VALVE 4WE10H3X/CW230N9K4

Bosch Rexroth

R900517315

DIRECTIONAL SPOOL VALVE 4WE10H3X/CW110N9K4

Bosch Rexroth

R901572567

DIRECTIONAL SPOOL VALVE 4WE10H2A5X/EG24N9DAL/M

Bosch Rexroth

R901547199

DIRECTIONAL SPOOL VALVE 4WE10GB5X/EW230RN9DL/M

Bosch Rexroth

R901551825

DIRECTIONAL SPOOL VALVE 4WE10GB5X/EW230N9K4/M

Bosch Rexroth

R901556438

DIRECTIONAL SPOOL VALVE 4WE10GB5X/EW120N9K4/M

Bosch Rexroth

R901350417

DIRECTIONAL SPOOL VALVE 4WE10GB5X/EG96N9K4/M

Bosch Rexroth

R901352851

DIRECTIONAL SPOOL VALVE 4WE10GB5X/EG24N9K72L/M

Bosch Rexroth

R901361280

DIRECTIONAL SPOOL VALVE 4WE10GB5X/EG24N9K4/V

Bosch Rexroth

R901551080

DIRECTIONAL SPOOL VALVE 4WE10GB5X/EG24N9K4/MH

Bosch Rexroth

R901349629

DIRECTIONAL SPOOL VALVE 4WE10GB5X/EG24N9K4/M

Bosch Rexroth

R901407598

DIRECTIONAL SPOOL VALVE 4WE10GB5X/EG24N9K4/H12M

Bosch Rexroth

R901429934

DIRECTIONAL SPOOL VALVE 4WE10GB5X/EG24N9K4/B30M

Bosch Rexroth

R901359692

DIRECTIONAL SPOOL VALVE 4WE10GB5X/EG24N9K4/B12M

Bosch Rexroth

R901395460

DIRECTIONAL SPOOL VALVE 4WE10GB5X/EG205N9K4/M

Bosch Rexroth

R901405081

DIRECTIONAL SPOOL VALVE 4WE10GB5X/EG12N9K4/V

Bosch Rexroth

R901538387

DIRECTIONAL SPOOL VALVE 4WE10GB5X/DEG24N9K4/M

Bosch Rexroth

R900909379

DIRECTIONAL SPOOL VALVE 4WE10GB3X/CW230N9K4

Bosch Rexroth

R901567582

DIRECTIONAL SPOOL VALVE 4WE10GA73-5X/EG24N9K4/A12V

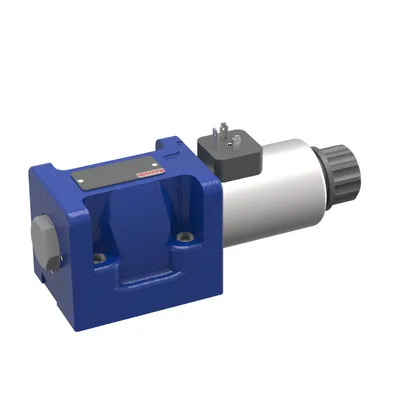

Bosch Rexroth

R988145842

DIRECTIONAL SPOOL VALVE 4WE10GA5X/HG24N9K4/M

Compare Directional on/off valve

Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.

MPN	Product family	Max. flow [l/min]	Spool symbol	Supply voltage	Weight [kg]
R901434701	WE10../E	120.0	Symbol H	110 VDC	4.78
R901492367	WE10../E	120.0	Symbol H	110 VAC (mit Gleichrichter)	5.7
R901352632	WE10../E	120.0	Symbol H	24 VDC	5.5
R901437317	WE10../E	120.0	Symbol H	24 VDC	4.78
R900503425	WE 10...C	70.0	Symbol H	230 VAC 50/60Hz	4.42
R900517315	WE 10...C	70.0	Symbol H	110…120 VAC 50/60 Hz	4.4
R901572567	WE10../E	0.0	Symbol H2A	24 VDC	4.1
R901547199	WE10../E	108.0	Symbol GB	230 VAC 50/60Hz	4.1
R901551825	WE10../E	108.0	Symbol GB	230 VAC 50/60Hz	3.3
R901556438	WE10../E	90.0	Symbol GB	120 VAC 50/60Hz	3.26
R901350417	WE10../E	90.0	Symbol GB	96 VDC	4
R901352851	WE10../E	90.0	Symbol GB	24 VDC	4
R901361280	WE10../E	90.0	Symbol GB	24 VDC	4
R901551080	WE10../E	90.0	Symbol GB	24 VDC	4
R901349629	WE10../E	90.0	Symbol GB	24 VDC	4.02
R901407598	WE10../E	90.0	Symbol GB	24 VDC	4.1
R901429934	WE10../E	90.0	Symbol GB	24 VDC	4.1
R901359692	WE10../E	90.0	Symbol GB	24 VDC	4
R901395460	WE10../E	90.0	Symbol GB	205 VDC	4.1
R901405081	WE10../E	90.0	Symbol GB	12 VDC	4.1
R901538387	WE10../E	90.0	Symbol GB	24 VDC	4
R900909379	WE 10...C	60.0	Symbol GB	230 VAC 50/60Hz	3.71
R901567582	WE10../E	100.0	Symbol G73A	24 VDC	4.02
R988145842	WE10../H	135.0	Symbol GA	24 VDC	3.31

Common to all listed parts

Connection diagram	ISO 4401-05-04-0-05
Type of connection	Subplate mounting
Size	10
Type of actuation	with solenoid actuation
Number of ports	4
Electrical connection description	Connector 3-pole (2 + PE) according to EN 175301-803
