Directional on/off valve Parts

Bosch Rexroth

R901349630

DIRECTIONAL SPOOL VALVE 4WE10H73-5X/EG205N9K4/M

Bosch Rexroth

R901350044

DIRECTIONAL SPOOL VALVE 4WE10H73-5X/EG205N9K4/A12M

Bosch Rexroth

R901192080

DIRECTIONAL SPOOL VALVE 4WE10H73-5X/EG12N9K4/M

Bosch Rexroth

R901368487

DIRECTIONAL SPOOL VALVE 4WE10H73-5X/DEG12N9K4/M

Bosch Rexroth

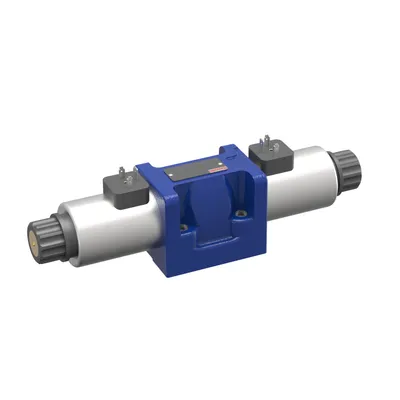

R901427828

DIRECTIONAL SPOOL VALVE 4WE10H5X/HG24N9K4/M

Bosch Rexroth

R901392130

DIRECTIONAL SPOOL VALVE 4WE10H5X/EW230RN9DL/M

Bosch Rexroth

R901480946

DIRECTIONAL SPOOL VALVE 4WE10H5X/EW230RN9DK6L/M

Bosch Rexroth

R901572648

DIRECTIONAL SPOOL VALVE 4WE10H5X/EW230RN9DJL/M

Bosch Rexroth

R901494563

DIRECTIONAL SPOOL VALVE 4WE10H5X/EW230N9K4/V

Bosch Rexroth

R901494150

DIRECTIONAL SPOOL VALVE 4WE10H5X/EW230N9K4/M

Bosch Rexroth

R901523646

DIRECTIONAL SPOOL VALVE 4WE10H5X/EW200N9K4/M

Bosch Rexroth

R901554113

DIRECTIONAL SPOOL VALVE 4WE10H5X/EW200N9DJL/M

Bosch Rexroth

R901554120

DIRECTIONAL SPOOL VALVE 4WE10H5X/EW200N9DJL/B15M

Bosch Rexroth

R901474813

DIRECTIONAL SPOOL VALVE 4WE10H5X/EW120RN9DK6L/V

Bosch Rexroth

R901375685

DIRECTIONAL SPOOL VALVE 4WE10H5X/EW120RN9DK6L/M

Bosch Rexroth

R901565929

DIRECTIONAL SPOOL VALVE 4WE10H5X/EW120RN9DAL/M

Bosch Rexroth

R901487105

DIRECTIONAL SPOOL VALVE 4WE10H5X/EW120N9K4/V

Bosch Rexroth

R901487054

DIRECTIONAL SPOOL VALVE 4WE10H5X/EW120N9K4/M

Bosch Rexroth

R901509325

DIRECTIONAL SPOOL VALVE 4WE10H5X/EW120N9K4/B12M

Bosch Rexroth

R901561967

DIRECTIONAL SPOOL VALVE 4WE10H5X/EW120N9DL/M

Bosch Rexroth

R901575181

DIRECTIONAL SPOOL VALVE 4WE10H5X/EW120N9DAL/V

Bosch Rexroth

R901568738

DIRECTIONAL SPOOL VALVE 4WE10H5X/EW120N9DAL/M

Bosch Rexroth

R901569553

DIRECTIONAL SPOOL VALVE 4WE10H5X/EW110RN9DJL/M

Bosch Rexroth

R901554089

DIRECTIONAL SPOOL VALVE 4WE10H5X/EW100N9DJL/M

Compare Directional on/off valve

Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.

MPN	Product family	Max. flow [l/min]	Supply voltage	Electrical connector	Weight [kg]
R901349630	WE10../E	125.0	205 VDC	Connector, 3-pole (2 + PE)	5.44
R901350044	WE10../E	125.0	205 VDC	Connector, 3-pole (2 + PE)	5.5
R901192080	WE10../E	125.0	12 VDC	Connector, 3-pole (2 + PE)	5.2
R901368487	WE10../E	125.0	12 VDC	Connector, 3-pole (2 + PE)	6.8
R901427828	WE10../H	135.0	24 VDC	Connector, 3-pole (2 + PE)	4.38
R901392130	WE10../E	120.0	230 VAC (mit Gleichrichter)	Cable gland	5.6
R901480946	WE10../E	120.0	230 VAC (mit Gleichrichter)	Connector, 7-pole (6 + PE)	5.4
R901572648	WE10../E	120.0	230 VAC 50/60Hz	Cable gland	5.52
R901494563	WE10../E	120.0	230 VAC 50/60Hz	Connector, 3-pole (2 + PE)	4
R901494150	WE10../E	120.0	230 VAC 50/60Hz	Connector, 3-pole (2 + PE)	4
R901523646	WE10../E	120.0	200 VAC 50Hz	Connector, 3-pole (2 + PE)	3.96
R901554113	WE10../E	120.0	200 VAC 50Hz	Cable gland	4.01
R901554120	WE10../E	120.0	200 VAC 50Hz	Cable gland	0
R901474813	WE10../E	120.0	120 VAC (mit Gleichrichter)	Connector, 7-pole (6 + PE)	5.6
R901375685	WE10../E	120.0	120 VAC (mit Gleichrichter)	Connector, 7-pole (6 + PE)	5.63
R901565929	WE10../E	120.0	120 VAC 50/60Hz	Cable gland	4.5
R901487105	WE10../E	120.0	120 VAC 50/60Hz	Connector, 3-pole (2 + PE)	3.95
R901487054	WE10../E	120.0	120 VAC 50/60Hz	Connector, 3-pole (2 + PE)	4
R901509325	WE10../E	120.0	120 VAC 50/60Hz	Connector, 3-pole (2 + PE)	3.95
R901561967	WE10../E	120.0	120 VAC 50/60Hz	Cable gland	2.3
R901575181	WE10../E	120.0	120 VAC 50/60Hz	Cable gland	2.1
R901568738	WE10../E	120.0	120 VAC 50/60Hz	Cable gland	4.05
R901569553	WE10../E	120.0	110…120 VAC	Cable gland	5.6
R901554089	WE10../E	120.0	100 VAC 50/60Hz	Cable gland	4

Common to all listed parts

Connection diagram	ISO 4401-05-04-0-05
Type of connection	Subplate mounting
Size	10
Type of actuation	with solenoid actuation
Number of ports	4
Number of switching positions	3
Electrical connection description	Connector 3-pole (2 + PE) according to EN 175301-803
