Directional on/off valve Parts
Compare Directional on/off valve
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Product family | Max. flow [l/min] | Spool symbol | Supply voltage | Weight [kg] |
|---|---|---|---|---|---|
| R901381275 | WE10../E | 150.0 | Symbol J | 110 VDC | 5.5 |
| R901543192 | WE10../E | 150.0 | Symbol J | 110 VDC | 5.47 |
| R901368860 | WE10../E | 150.0 | Symbol J | 110 VDC | 5.5 |
| R901434410 | WE10../E | 150.0 | Symbol J | 110 VDC | 5.5 |
| R901511725 | WE10../E | 150.0 | Symbol J | 110 VDC | 5.54 |
| R901381050 | WE10../E | 150.0 | Symbol J | 110 VDC | 5.5 |
| R901504107 | WE10../E | 150.0 | Symbol J | 110 VDC | 5.54 |
| R901136885 | WE10../E | 150.0 | Symbol J | 110 VDC | 5.6 |
| R901416400 | WE10../E | 150.0 | Symbol J | 24 VDC | 0.01 |
| R901326395 | WE10../E | 150.0 | Symbol J | 24 VDC | 5.44 |
| R901551820 | WE10../E | 150.0 | Symbol J | 24 VDC | 5.5 |
| R901368483 | WE10../E | 150.0 | Symbol J | 24 VDC | 5.75 |
| R901448234 | WE10../E | 150.0 | Symbol J | 205 VDC | 4.78 |
| R901321389 | WE10../E | 150.0 | Symbol J | 12 VDC | 5.59 |
| R900917675 | WE 10...C | 120.0 | Symbol J | 230 VAC 50/60Hz | 4.42 |
| R900911868 | WE 10...C | 120.0 | Symbol J | 230 VAC 50/60Hz | 4.4 |
| R900527508 | WE 10...C | 120.0 | Symbol J | 110…120 VAC 50/60 Hz | 4.4 |
| R900592338 | WE 10...C | 120.0 | Symbol J | 110…120 VAC 50/60 Hz | 4.42 |
| R987032962 | WE 10...C | 120.0 | Symbol J | 110…120 VAC 50/60 Hz | 2 |
| R901470998 | WE10../H | 135.0 | Symbol J2B | 24 VDC | 3.46 |

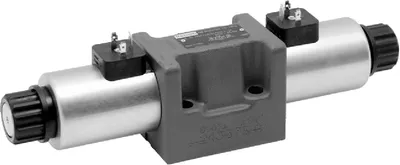

| R901431135 | WE10../H | 135.0 | Symbol J2B | 24 VDC | 4.4 |
| R901278803 | WE10../E | 0.0 | Symbol J2B | 24 VDC | 4.03 |
| R901336225 | WE10../E | 0.0 | Symbol J2B | 24 VDC | 4.4 |
| R901335760 | WE10../E | 0.0 | Symbol J2 | 96 VDC | 5.5 |
Common to all listed parts
| Connection diagram | ISO 4401-05-04-0-05 |
| Type of connection | Subplate mounting |
| Size | 10 |
| Type of actuation | with solenoid actuation |
| Number of ports | 4 |
| Electrical connection description | Connector 3-pole (2 + PE) according to EN 175301-803 |
