Directional on/off valve Parts

Bosch Rexroth

R901404371

DIRECTIONAL SPOOL VALVE 4WE10M5X/EG12N9DAL/M

Bosch Rexroth

R901462996

DIRECTIONAL SPOOL VALVE 4WE10M5X/EG125N9K4/V

Bosch Rexroth

R901449769

DIRECTIONAL SPOOL VALVE 4WE10M5X/EG125N9K4/B10M

Bosch Rexroth

R901514677

DIRECTIONAL SPOOL VALVE 4WE10M5X/EG110N9K4/M

Bosch Rexroth

R901546416

DIRECTIONAL SPOOL VALVE 4WE10M5X/EG110N9DL/M

Bosch Rexroth

R900500223

DIRECTIONAL SPOOL VALVE 4WE10M3X/CW110N9K4

Bosch Rexroth

R987032966

DIRECTIONAL SPOOL VALVE 4WE10M3X / CW110N9K4 + Z5L SET

Bosch Rexroth

R901487111

DIRECTIONAL SPOOL VALVE 4WE10LB5X/EW120N9K4/M

Bosch Rexroth

R901350045

DIRECTIONAL SPOOL VALVE 4WE10LB5X/EG96N9K4/M

Bosch Rexroth

R901390427

DIRECTIONAL SPOOL VALVE 4WE10LB5X/EG24N9K4/V

Bosch Rexroth

R901324079

DIRECTIONAL SPOOL VALVE 4WE10LB5X/EG24N9K4/M

Bosch Rexroth

R901370266

DIRECTIONAL SPOOL VALVE 4WE10LB5X/EG205N9K4/M

Bosch Rexroth

R900906453

DIRECTIONAL SPOOL VALVE 4WE10LB3X/CW110N9K4

Bosch Rexroth

R901543183

DIRECTIONAL SPOOL VALVE 4WE10LA5X/EG96N9K4/M

Bosch Rexroth

R901341335

DIRECTIONAL SPOOL VALVE 4WE10LA5X/EG24N9K4/M

Bosch Rexroth

R901391161

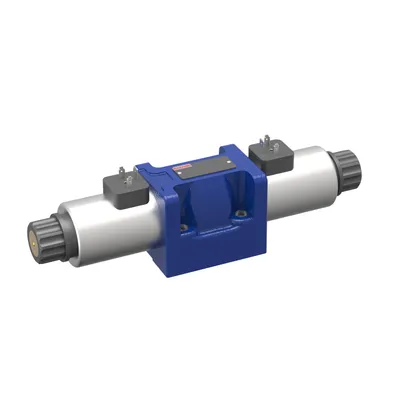

DIRECTIONAL SPOOL VALVE 4WE10L5X/HG24N9K4/M

Bosch Rexroth

R901508377

DIRECTIONAL SPOOL VALVE 4WE10L5X/EW230RN9DK6L/M

Bosch Rexroth

R901517491

DIRECTIONAL SPOOL VALVE 4WE10L5X/EW230N9K4/M

Bosch Rexroth

R901554116

DIRECTIONAL SPOOL VALVE 4WE10L5X/EW200N9DJL/M

Bosch Rexroth

R901499066

DIRECTIONAL SPOOL VALVE 4WE10L5X/EW120RN9DK25L/M

Bosch Rexroth

R901487104

DIRECTIONAL SPOOL VALVE 4WE10L5X/EW120N9K4/M

Bosch Rexroth

R901494467

DIRECTIONAL SPOOL VALVE 4WE10L5X/EW110RN9DK6L/M

Bosch Rexroth

R901573661

DIRECTIONAL SPOOL VALVE 4WE10L5X/EW110RN9DJL/M

Bosch Rexroth

R901554079

DIRECTIONAL SPOOL VALVE 4WE10L5X/EW100N9DJL/M

Compare Directional on/off valve

Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.

MPN	Product family	Max. flow [l/min]	Spool symbol	Supply voltage	Weight [kg]
R901404371	WE10../E	75.0	Symbol M	12 VDC	5.7
R901462996	WE10../E	75.0	Symbol M	125 VDC	5.5
R901449769	WE10../E	75.0	Symbol M	125 VDC	5.2
R901514677	WE10../E	75.0	Symbol M	110 VDC	5.5
R901546416	WE10../E	75.0	Symbol M	110 VDC	5.55
R900500223	WE 10...C	90.0	Symbol M	110…120 VAC 50/60 Hz	4.4
R987032966	WE 10...C	90.0	Symbol M	110…120 VAC 50/60 Hz	2
R901487111	WE10../E	90.0	Symbol LB	120 VAC 50/60Hz	5.4
R901350045	WE10../E	160.0	Symbol LB	96 VDC	4
R901390427	WE10../E	160.0	Symbol LB	24 VDC	4
R901324079	WE10../E	160.0	Symbol LB	24 VDC	4.02
R901370266	WE10../E	160.0	Symbol LB	205 VDC	4.2
R900906453	WE 10...C	120.0	Symbol LB	110…120 VAC 50/60 Hz	3.68
R901543183	WE10../E	160.0	Symbol LA	96 VDC	4.06
R901341335	WE10../E	160.0	Symbol LA	24 VDC	4
R901391161	WE10../H	135.0	Symbol L	24 VDC	4.41
R901508377	WE10../E	76.0	Symbol L	230 VAC (mit Gleichrichter)	5.58
R901517491	WE10../E	76.0	Symbol L	230 VAC 50/60Hz	4.02
R901554116	WE10../E	76.0	Symbol L	200 VAC 50Hz	4.02
R901499066	WE10../E	90.0	Symbol L	120 VAC (mit Gleichrichter)	5.57
R901487104	WE10../E	90.0	Symbol L	120 VAC 50/60Hz	4
R901494467	WE10../E	90.0	Symbol L	110 VAC (mit Gleichrichter)	5.5
R901573661	WE10../E	90.0	Symbol L	110…120 VAC	5.59
R901554079	WE10../E	90.0	Symbol L	100 VAC 50/60Hz	4.05

Common to all listed parts

Connection diagram	ISO 4401-05-04-0-05
Type of connection	Subplate mounting
Size	10
Type of actuation	with solenoid actuation
Number of ports	4
Electrical connection description	Connector 3-pole (2 + PE) according to EN 175301-803
