Directional on/off valve Parts

Bosch Rexroth

R901278792

DIRECTIONAL SPOOL VALVE 4WE10UA5X/EG24N9K4/M

Bosch Rexroth

R901361963

DIRECTIONAL SPOOL VALVE 4WE10UA5X/EG24N9DL/M

Bosch Rexroth

R901568656

DIRECTIONAL SPOOL VALVE 4WE10UA5X/EG24N8K4/M

Bosch Rexroth

R901350549

DIRECTIONAL SPOOL VALVE 4WE10UA5X/EG24K4/M

Bosch Rexroth

R901355505

DIRECTIONAL SPOOL VALVE 4WE10UA5X/EG205N9K4/V

Bosch Rexroth

R901383991

DIRECTIONAL SPOOL VALVE 4WE10UA5X/EG110N9K4/M

Bosch Rexroth

R901349442

DIRECTIONAL SPOOL VALVE 4WE10UA5X/DEG24N9K4/T12M

Bosch Rexroth

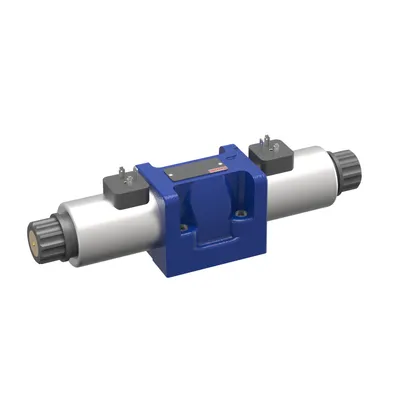

R901391194

DIRECTIONAL SPOOL VALVE 4WE10U5X/HG24N9K4/M

Bosch Rexroth

R901533294

DIRECTIONAL SPOOL VALVE 4WE10U5X/EW230N9K4/M

Bosch Rexroth

R901524517

DIRECTIONAL SPOOL VALVE 4WE10U5X/EW200N9K4/M

Bosch Rexroth

R901554110

DIRECTIONAL SPOOL VALVE 4WE10U5X/EW200N9DJL/M

Bosch Rexroth

R901522666

DIRECTIONAL SPOOL VALVE 4WE10U5X/EW120N9K4/M

Bosch Rexroth

R901577643

DIRECTIONAL SPOOL VALVE 4WE10U5X/EW120N9DAL/M

Bosch Rexroth

R901554101

DIRECTIONAL SPOOL VALVE 4WE10U5X/EW100N9DJL/M

Bosch Rexroth

R901343396

DIRECTIONAL SPOOL VALVE 4WE10U5X/EG96N9K4/M

Bosch Rexroth

R901361946

DIRECTIONAL SPOOL VALVE 4WE10U5X/EG24N9K4/V

Bosch Rexroth

R901570354

DIRECTIONAL SPOOL VALVE 4WE10U5X/EG24N9K4/M=CSA

Bosch Rexroth

R901278778

DIRECTIONAL SPOOL VALVE 4WE10U5X/EG24N9K4/M

Bosch Rexroth

R901355605

DIRECTIONAL SPOOL VALVE 4WE10U5X/EG24N9K4/B08M

Bosch Rexroth

R901393346

DIRECTIONAL SPOOL VALVE 4WE10U5X/EG24N9DL/M

Bosch Rexroth

R901512028

DIRECTIONAL SPOOL VALVE 4WE10U5X/EG24N9DK6L/M

Bosch Rexroth

R901411654

DIRECTIONAL SPOOL VALVE 4WE10U5X/EG24N9DAL/M

Bosch Rexroth

R901478272

DIRECTIONAL SPOOL VALVE 4WE10U5X/EG24K4/M

Bosch Rexroth

R901350376

DIRECTIONAL SPOOL VALVE 4WE10U5X/EG205N9K4/M

Compare Directional on/off valve

Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.

MPN	Product family	Max. flow [l/min]	Supply voltage	Electrical connector	Weight [kg]
R901278792	WE10../E	144.0	24 VDC	Connector, 3-pole (2 + PE)	4.02
R901361963	WE10../E	144.0	24 VDC	Cable gland	4.2
R901568656	WE10../E	144.0	24 VDC	Connector, 3-pole (2 + PE)	4
R901350549	WE10../E	144.0	24 VDC	Connector, 3-pole (2 + PE)	4.02
R901355505	WE10../E	144.0	205 VDC	Connector, 3-pole (2 + PE)	4.2
R901383991	WE10../E	144.0	110 VDC	Connector, 3-pole (2 + PE)	4
R901349442	WE10../E	144.0	24 VDC	Connector, 3-pole (2 + PE)	4
R901391194	WE10../H	135.0	24 VDC	Connector, 3-pole (2 + PE)	4.41
R901533294	WE10../E	100.0	230 VAC 50/60Hz	Connector, 3-pole (2 + PE)	4
R901524517	WE10../E	100.0	200 VAC 50Hz	Connector, 3-pole (2 + PE)	4
R901554110	WE10../E	100.0	200 VAC 50Hz	Cable gland	4.04
R901522666	WE10../E	81.0	120 VAC 50/60Hz	Connector, 3-pole (2 + PE)	3.94
R901577643	WE10../E	81.0	120 VAC 50/60Hz	Cable gland	4.02
R901554101	WE10../E	81.0	100 VAC 50/60Hz	Cable gland	4.04
R901343396	WE10../E	144.0	96 VDC	Connector, 3-pole (2 + PE)	5.5
R901361946	WE10../E	144.0	24 VDC	Connector, 3-pole (2 + PE)	5.6
R901570354	WE10../E	144.0	24 VDC	Connector, 3-pole (2 + PE)	5.6
R901278778	WE10../E	144.0	24 VDC	Connector, 3-pole (2 + PE)	5.5
R901355605	WE10../E	144.0	24 VDC	Connector, 3-pole (2 + PE)	5.5
R901393346	WE10../E	144.0	24 VDC	Cable gland	5.6
R901512028	WE10../E	144.0	24 VDC	Connector, 7-pole (6 + PE)	5.58
R901411654	WE10../E	144.0	24 VDC	Cable gland	5.6
R901478272	WE10../E	144.0	24 VDC	Connector, 3-pole (2 + PE)	4.78
R901350376	WE10../E	144.0	205 VDC	Connector, 3-pole (2 + PE)	5.5

Common to all listed parts

Connection diagram	ISO 4401-05-04-0-05
Type of connection	Subplate mounting
Size	10
Type of actuation	with solenoid actuation
Number of ports	4
Electrical connection description	Connector 3-pole (2 + PE) according to EN 175301-803
