Directional on/off valve Parts

Bosch Rexroth

R901350513

DIRECTIONAL SPOOL VALVE 4WE10W5X/EG24N9K72L/M

Bosch Rexroth

R901361300

DIRECTIONAL SPOOL VALVE 4WE10W5X/EG24N9K4/V

Bosch Rexroth

R901321525

DIRECTIONAL SPOOL VALVE 4WE10W5X/EG24N9K4/MH

Bosch Rexroth

R901278773

DIRECTIONAL SPOOL VALVE 4WE10W5X/EG24N9K4/M

Bosch Rexroth

R901347417

DIRECTIONAL SPOOL VALVE 4WE10W5X/EG24N9K4/B12M

Bosch Rexroth

R901361299

DIRECTIONAL SPOOL VALVE 4WE10W5X/EG24N9K4/B08M

Bosch Rexroth

R901401637

DIRECTIONAL SPOOL VALVE 4WE10W5X/EG24N9DL/M

Bosch Rexroth

R901536725

DIRECTIONAL SPOOL VALVE 4WE10W5X/EG220N9K4/V

Bosch Rexroth

R901357074

DIRECTIONAL SPOOL VALVE 4WE10W5X/EG205N9K4/V

Bosch Rexroth

R901346100

DIRECTIONAL SPOOL VALVE 4WE10W5X/EG12N9K4/M

Bosch Rexroth

R901363454

DIRECTIONAL SPOOL VALVE 4WE10W5X/DEG24N9K4/M

Bosch Rexroth

R901434282

DIRECTIONAL SPOOL VALVE 4WE10W5X/DEG205N9K4/M

Bosch Rexroth

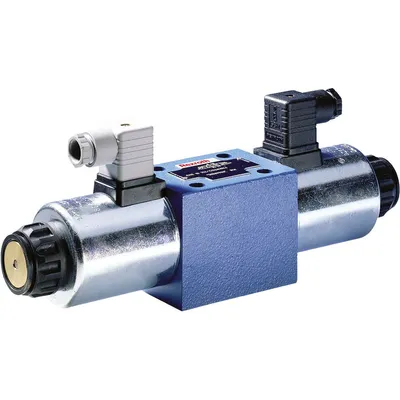

R900521281

DIRECTIONAL SPOOL VALVE 4WE10W3X/CW230N9K4

Bosch Rexroth

R901414899

DIRECTIONAL SPOOL VALVE 4WE10VB5X/EG24N9K4/M

Bosch Rexroth

R901335584

DIRECTIONAL SPOOL VALVE 4WE10VA5X/EG24N9K4/M

Bosch Rexroth

R901472069

DIRECTIONAL SPOOL VALVE 4WE10V5X/EG24K4/M

Bosch Rexroth

R901364498

DIRECTIONAL SPOOL VALVE 4WE10UB5X/EG24N9K4/M

Bosch Rexroth

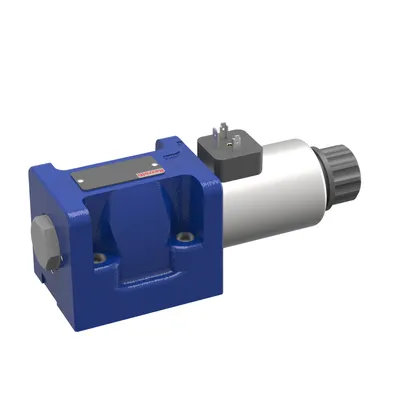

R901488889

DIRECTIONAL SPOOL VALVE 4WE10UA5X/HG24N9K4/M

Bosch Rexroth

R901516166

DIRECTIONAL SPOOL VALVE 4WE10UA5X/EW120N9K4/V

Bosch Rexroth

R901546316

DIRECTIONAL SPOOL VALVE 4WE10UA5X/EW120N9K4/M

Bosch Rexroth

R901341959

DIRECTIONAL SPOOL VALVE 4WE10UA5X/EG96N9K4/V

Bosch Rexroth

R901391389

DIRECTIONAL SPOOL VALVE 4WE10UA5X/EG96N9K4/M

Bosch Rexroth

R901356227

DIRECTIONAL SPOOL VALVE 4WE10UA5X/EG24N9K4/V

Bosch Rexroth

R901559937

DIRECTIONAL SPOOL VALVE 4WE10UA5X/EG24N9K4/T06M

Compare Directional on/off valve

Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.

MPN	Product family	Max. flow [l/min]	Spool symbol	Supply voltage	Weight [kg]
R901350513	WE10../E	105.0	Symbol W	24 VDC	5.5
R901361300	WE10../E	105.0	Symbol W	24 VDC	5.5
R901321525	WE10../E	105.0	Symbol W	24 VDC	4.78
R901278773	WE10../E	105.0	Symbol W	24 VDC	5.48
R901347417	WE10../E	105.0	Symbol W	24 VDC	5.6
R901361299	WE10../E	105.0	Symbol W	24 VDC	5.46
R901401637	WE10../E	105.0	Symbol W	24 VDC	5.5
R901536725	WE10../E	105.0	Symbol W	220 VDC	5.4
R901357074	WE10../E	105.0	Symbol W	205 VDC	4.5
R901346100	WE10../E	105.0	Symbol W	12 VDC	5.4
R901363454	WE10../E	105.0	Symbol W	24 VDC	5.5
R901434282	WE10../E	105.0	Symbol W	205 VDC	5.5
R900521281	WE 10...C	120.0	Symbol W	230 VAC 50/60Hz	4.36
R901414899	WE10../E	75.0	Symbol VB	24 VDC	4
R901335584	WE10../E	75.0	Symbol VA	24 VDC	4.04
R901472069	WE10../E	75.0	Symbol V	24 VDC	5.47
R901364498	WE10../E	144.0	Symbol UB	24 VDC	4.1
R901488889	WE10../H	135.0	Symbol UA	24 VDC	3.31
R901516166	WE10../E	81.0	Symbol UA	120 VAC 50/60Hz	3.3
R901546316	WE10../E	81.0	Symbol UA	120 VAC 50/60Hz	3.25
R901341959	WE10../E	144.0	Symbol UA	96 VDC	4.1
R901391389	WE10../E	144.0	Symbol UA	96 VDC	4.02
R901356227	WE10../E	144.0	Symbol UA	24 VDC	4.2
R901559937	WE10../E	144.0	Symbol UA	24 VDC	5.52

Common to all listed parts

Connection diagram	ISO 4401-05-04-0-05
Type of connection	Subplate mounting
Size	10
Type of actuation	with solenoid actuation
Number of ports	4
Electrical connection description	Connector 3-pole (2 + PE) according to EN 175301-803
