Directional on/off valve Parts
Compare Directional on/off valve
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Product family | Max. flow [l/min] | Supply voltage | Conformity | Weight [kg] |
|---|---|---|---|---|---|
| R900770574 | WE6../E | 70.0 | 110 VDC | CE; UKCA | 1.8 |
| R900770573 | WE6../E | 70.0 | 110 VDC | CE; UKCA | 1.54 |
| R900787786 | WE6../E | 70.0 | 110 VDC | CE; UKCA | 1.8 |
| R900759025 | WE6../E | 70.0 | 110 VDC | CE; UKCA | 1.52 |
| R900750690 | WE6../E | 70.0 | 110 VDC | CE; UKCA | 1.8 |
| R901269471 | WE6../E | 70.0 | 110 VDC | CE; UKCA | 1.8 |
| R901030314 | WE6../E | 70.0 | 110 VDC | CE; UKCA | 1.8 |
| R901388493 | WE6../E | 70.0 | 110 VDC | CE; UKCA | 1.8 |
| R901570845 | WE6../E | — | 110 VDC | CE; UKCA | 1.8 |
| R900907906 | WE6../E | 70.0 | 110 VDC | CE; UKCA | 1.52 |
| R901429369 | WE6../E | 70.0 | 110 VDC | CE; UKCA | 1.52 |
| R901568462 | WE6../E | — | 110 VDC | CE; UKCA | 1.48 |
| R901224037 | WE6../E | 70.0 | 110 VDC | CE; UKCA | 1.62 |
| R900752383 | WE6../E | 70.0 | 110 VDC | CE; UKCA | 1.42 |
| R901072036 | WE6../.B.XD | 60.0 | 24 VDC | ATEX; CCC-Ex | 5.24 |
| R901369262 | WE6../.B.XD | 60.0 | 24 VDC | ATEX; CCC-Ex | 5.35 |

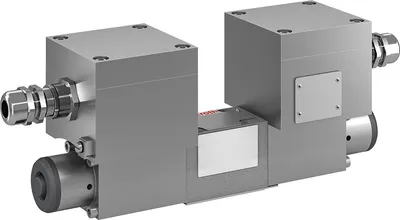

| R901239889 | WE6../.B.XD | 60.0 | 24 VDC | ATEX; CCC-Ex | 5.27 |
| R901478029 | WE 6../.B..VP1 | 70.0 | 120 VAC 50/60Hz | — | 3.86 |

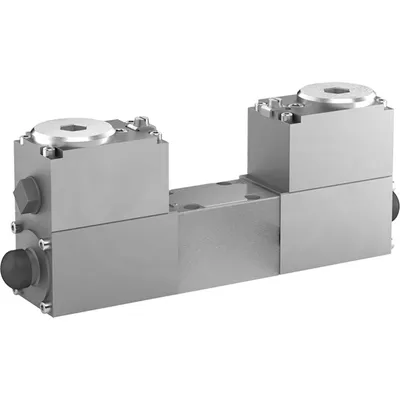

| R901458466 | WE 6../.B..VP1 | 70.0 | 24 VDC | — | 3.86 |
| R901380476 | WE6../.B.X | 20.0 | 12 VDC | ATEX | 2.84 |

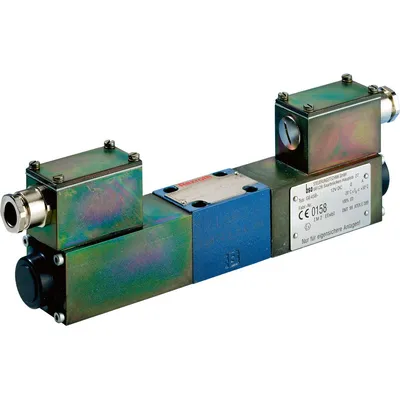

| R901343067 | WE6../.B.X | 20.0 | 12 VDC | ATEX | 2.84 |
| R901344110 | WE6../.B.X | 20.0 | 12 VDC | ATEX | 2.84 |
| R901053749 | WE 6…E..XE | 50.0 | 110 - 120 VAC | ATEX; CCC-Ex; CE; UKCA | 4 |
| R901275214 | WE6../E | 50.0 | 24 VDC | — | 1.96 |
Common to all listed parts
| Connection diagram | ISO 4401-03-02-0-05 |
| Size | 6 |
| Type of actuation | with solenoid actuation |
| Number of ports | 4 |
| Number of switching positions | 2 |
