Directional on/off valve Parts
Compare Directional on/off valve
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Product family | Supply voltage | Electrical connector | Weight [kg] | Max. flow [l/min] |
|---|---|---|---|---|---|

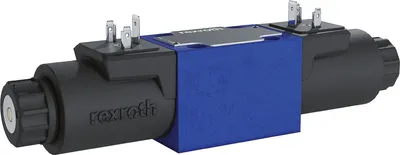

| R988145626 | WE 6...H | 24 VDC | Connector, 3-pole (2 + PE) | 1.26 | — |
| R901130747 | WE6../H | 24 VDC | Connector, 3-pole (2 + PE) | 1.58 | 30.0 |
| R901135149 | WE6../H | 12 VDC | Connector, 3-pole (2 + PE) | 1.58 | 30.0 |
| R901040946 | WE 6…E..XE | 24 VDC | Cable gland | 2.58 | — |
| R901570334 | WE6../E | 24 VDC | Connector, 3-pole (2 + PE) | 1.5 | — |
| R901279350 | WE6../E | 125 VDC | Connector, 3-pole (2 + PE) | 1.44 | — |
| R901526285 | WE6../E | 24 VDC | Connector, 4-pole, M12 x 1, coding A | 1.46 | 31.0 |
| R901417692 | WE6../E | 24 VDC | Connector, 3-pole (2 + PE) | 1.46 | — |
| R901230813 | WE6../E | 24 VDC | Connector, 3-pole (2 + PE) | 1.62 | 31.0 |
| R901027269 | WE 6…E..XE | 230 VAC 50/60Hz | Cable gland | 4 | 30.0 |
| R900915871 | WE6../E | 230 VAC 50/60Hz | Connector, 3-pole (2 + PE) | 1.68 | 25.0 |
| R978916669 | WE6../E | 110 - 120 VAC | Cable gland | 1.95 | — |
| R901175904 | WE 6…E..XE | 24 VDC | Cable gland | 3.86 | 30.0 |
| R900915870 | WE6../E | 24 VDC | Connector, 3-pole (2 + PE) | 1.98 | 31.0 |
| R901563447 | WE6../E | 24 VDC | Connector, 3-pole (2 + PE) | 2.2 | 32.0 |
| R900929782 | WE6../E | 205 VDC | Connector, 3-pole (2 + PE) | 1.94 | 31.0 |
| R900922672 | WE6../E | 12 VDC | Connector, 3-pole (2 + PE) | 1.98 | 31.0 |
| R901054158 | WE 6…E..XE | 230 VAC 50/60Hz | Cable gland | 4 | 28.0 |
| R901414421 | WE6../E | 230 VAC (mit Gleichrichter) | Connector, 7-pole (6 + PE) | 1.8 | 40.0 |
| R900731252 | WE6../E | 230 VAC 50/60Hz | Connector, 3-pole (2 + PE) | 1.8 | 40.0 |
| R901359694 | WE6../E | 230 VAC 50/60Hz | Connector, 3-pole (2 + PE) | 2.02 | 40.0 |
| R900909420 | WE6../E | 230 VAC 50/60Hz | Connector, 3-pole (2 + PE) | 1.74 | 40.0 |
| R901221035 | WE6../E | 230 VAC 50/60Hz | Cable gland | 1.8 | 40.0 |
| R901129420 | WE6../E | 230 VAC 50/60Hz | Connector, 3-pole (2 + PE) | 1.68 | 40.0 |
Common to all listed parts
| Connection diagram | ISO 4401-03-02-0-05 |
| Size | 6 |
| Type of actuation | with solenoid actuation |
| Number of ports | 4 |
