Directional on/off valve Parts
Compare Directional on/off valve
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Product family | Spool symbol | Supply voltage | Seals | Weight [kg] |
|---|---|---|---|---|---|
| R901103577 | WE6../E | Symbol GA | 24 VDC | NBR | 1.8 |
| R901030069 | WE6../E | Symbol GA | 24 VDC | NBR | 1.8 |
| R901358308 | WE6../E | Symbol GA | 24 VDC | FKM | 1.8 |
| R900924932 | WE6../E | Symbol GA | 24 VDC | NBR | 1.46 |
| R901081354 | WE6../E | Symbol GA | 24 VDC | NBR | 1.54 |
| R901366957 | WE6../E | Symbol GA | 24 VDC | NBR | 1.44 |
| R901098508 | WE6../E | Symbol GA | 24 VDC | FKM | 1.44 |
| R901327937 | WE6../E | Symbol G | 24 VDC | NBR | 1.64 |
| R900617643 | WE6../E | Symbol GA | 24 VDC | NBR | 1.62 |
| R901550849 | WE6../E | Symbol G | 24 VDC | NBR | 1.63 |
| R900619954 | WE6../E | Symbol GA | 24 VDC | NBR | 1.64 |
| R901394260 | WE6../E | Symbol G | 24 VDC | FKM | 1.46 |
| R901240053 | WE6../E | Symbol G | 24 VDC | NBR (low temperature) | 1.44 |
| R900970397 | WE6../E | Symbol GA | 24 VDC | NBR | 1.44 |
| R900935489 | WE6../E | Symbol GA | 220 VDC | NBR | 1.42 |
| R900902958 | WE6../E | Symbol GA | 205 VDC | NBR | 1.4 |
| R901050687 | WE6../E | Symbol GA | 12 VDC | NBR | 1.5 |
| R900921106 | WE6../E | Symbol GA | 12 VDC | NBR | 1.44 |
| R901115287 | WE6../E | Symbol GA | 12 VDC | NBR | 1.46 |
| R900977951 | WE6../E | Symbol GA | 12 VDC | FKM | 1.32 |
| R900923844 | WE6../E | Symbol GA | 12 VDC | NBR | 1.44 |
| R900964641 | WE6../E | Symbol GA | 110 VDC | NBR | 1.42 |
| R900774229 | WE6../E | Symbol GA | 110 VDC | NBR | 1.8 |

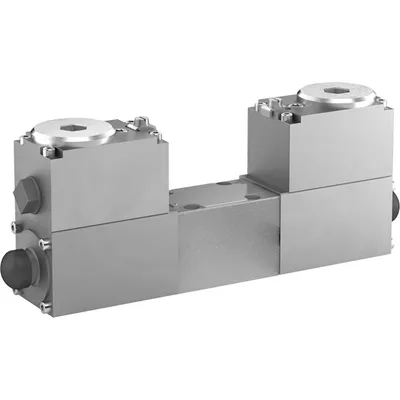

| R901590639 | WE 6../.B..VP1 | Symbol G | 24 VDC | NBR | 5.92 |
Common to all listed parts
| Connection diagram | ISO 4401-03-02-0-05 |
| Operating pressure, max. [bar] | 350.0 |
| Size | 6 |
| Type of actuation | with solenoid actuation |
| Number of ports | 4 |
| Number of switching positions | 2 |
