Directional on/off valve Parts
Compare Directional on/off valve
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Product family | Spool symbol | Supply voltage | Seals | Weight [kg] |
|---|---|---|---|---|---|
| R900930258 | WE6../E | Symbol HA | 110…120 VAC | FKM | 1.3 |
| R978918705 | WE6../E | Symbol HA | 110…120 VAC | NBR | 1.45 |
| R901203100 | WE6../E | Symbol HA | 110…120 VAC | NBR | 1.8 |
| R901166779 | WE6../E | Symbol HA | 110…120 VAC | NBR | 1.32 |
| R900906460 | WE6../E | Symbol HA | 110…120 VAC | NBR | 1.32 |
| R900921096 | WE6../E | Symbol H | 110 - 120 VAC | NBR | 1.4 |
| R900946867 | WE6../E | Symbol HA | 110…120 VAC | NBR | 1.3 |
| R900734334 | WE6../E | Symbol HA | 100 VAC 50/60Hz | NBR | 1.34 |
| R900759524 | WE6../E | Symbol HA | 100 VAC 50/60Hz | NBR | 1.4 |
| R901213868 | WE6../E | Symbol HA | 96 VDC | FKM | 1.42 |
| R900909654 | WE6../E | Symbol HA | 96 VDC | NBR | 1.44 |
| R900916321 | WE6../E | Symbol H | 48 VDC | NBR | 1.49 |
| R901434189 | WE6../E | Symbol HA | 26 VDC | NBR | 1.44 |
| R901009184 | WE 6…E..XE | Symbol H | 24 VDC | FKM | 2.58 |
| R901078619 | WE 6…E..XE | Symbol H | 24 VDC | NBR | 2.58 |
| R901333114 | WE6../E | Symbol HA | 24 VDC | NBR | 1.44 |
| R901200509 | WE6../E | Symbol HA | 24 VDC | FKM | 1.8 |
| R901268082 | WE6../E | Symbol HA | 24 VDC | NBR | 1.46 |
| R900944653 | WE6../E | Symbol HA | 24 VDC | NBR | 1.46 |
| R901574727 | WE6../E | Symbol H | 24 VDC | NBR | 1.48 |
| R900925170 | WE6../E | Symbol HA | 24 VDC | NBR | 1.55 |

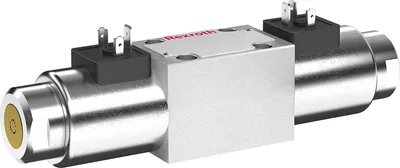

| R901291369 | WE 6…XN | Symbol H | 24 VDC | NBR | 2.26 |
| R901308849 | WE6../E | Symbol HA | 24 VDC | NBR | 1.46 |
| R901509615 | WE6../E | Symbol HA | 24 VDC | FKM | 1.7 |
Common to all listed parts
| Connection diagram | ISO 4401-03-02-0-05 |
| Operating pressure, max. [bar] | 350.0 |
| Size | 6 |
| Type of actuation | with solenoid actuation |
| Number of ports | 4 |
| Number of switching positions | 2 |
