Directional on/off valve Parts
Compare Directional on/off valve
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Product family | Max. flow [l/min] | Spool symbol | Supply voltage | Weight [kg] |
|---|---|---|---|---|---|
| R900974468 | WE6../E | 80.0 | Symbol HB | 205 VDC | 1.42 |
| R901551959 | WE6../E | 80.0 | Symbol HB | 205 VDC | 1.48 |
| R900725030 | WE6../E | 80.0 | Symbol HB | 12 VDC | 1.46 |
| R900970395 | WE6../E | 80.0 | Symbol HB | 125 VDC | 1.44 |
| R901552526 | WE6../E | 80.0 | Symbol HB | 110 VDC | 1.37 |
| R901229524 | WE6../E | 80.0 | Symbol HB | 110 VDC | 1.42 |
| R900964491 | WE6../E | 80.0 | Symbol HB | 110 VDC | 1.42 |
| R901259693 | WE6../H | 30.0 | Symbol H | 24 VDC | 1.27 |
| R901133322 | WE6../H | 30.0 | Symbol H | 24 VDC | 1.24 |

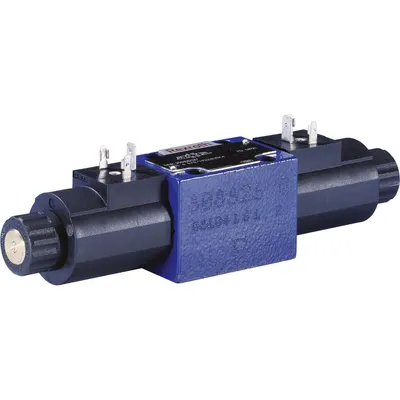

| R901155936 | WE6../H | 30.0 | Symbol H | 12 VDC | 1.26 |
| R901311500 | WE6../E | 80.0 | Symbol HA | 24 VDC | 2.08 |
| R901382201 | WE6../E | 80.0 | Symbol HA | 24 VDC | 1.98 |
| R901235346 | WE6../E | 80.0 | Symbol HA | 24 VDC | 1.96 |
| R901421982 | WE6../E | — | Symbol H | 220 VDC | 1.8 |
| R901061755 | WE 6…E..XE | — | Symbol H | 230 VAC 50/60Hz | 2.56 |
| R900969023 | WE6../E | 50.0 | Symbol HA | 230 VAC 50/60Hz | 1.32 |
| R901376995 | WE6../E | 50.0 | Symbol HA | 230 VAC 50/60Hz | 1.54 |
| R900936787 | WE6../E | 50.0 | Symbol HA | 230 VAC 50/60Hz | 1.3 |
| R900912495 | WE6../E | 50.0 | Symbol HA | 230 VAC 50/60Hz | 1.32 |
| R900972931 | WE6../E | — | Symbol H | 230 VAC 50/60Hz | 1.38 |
| R901079984 | WE6../E | 50.0 | Symbol HA | 200 VAC 50Hz | 1.4 |
| R900936342 | WE6../E | 50.0 | Symbol HA | 110…120 VAC | 1.32 |
| R900702205 | WE6../E | 50.0 | Symbol HA | 110…120 VAC | 1.5 |
| R901470764 | WE6../E | 50.0 | Symbol HA | 110…120 VAC | 1.34 |
Common to all listed parts
| Connection diagram | ISO 4401-03-02-0-05 |
| Size | 6 |
| Type of actuation | with solenoid actuation |
| Number of ports | 4 |
| Number of switching positions | 2 |
