Directional on/off valve Parts
Compare Directional on/off valve
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Product family | Operating pressure, max. [bar] | Supply voltage | Electrical connector | Weight [kg] |
|---|---|---|---|---|---|

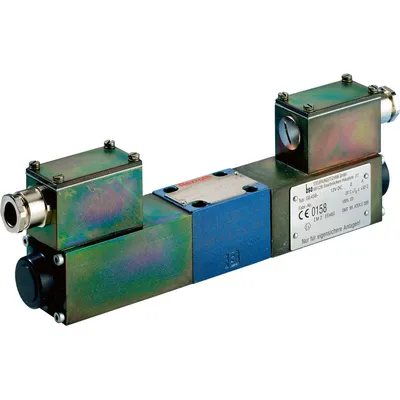

| R901431412 | WE6../.B.X | 210.0 | 12 VDC | Connector, 3-pole (2 + PE) | 2.84 |

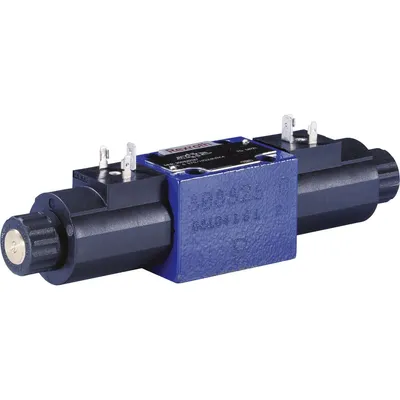

| R901137806 | WE6../H | 315.0 | 24 VDC | Connector, 3-pole (2 + PE) | 1.24 |
| R901108702 | WE6../H | 315.0 | 24 VDC | Connector, 3-pole (2 + PE) | 1.26 |
| R901234031 | WE6../H | 315.0 | 12 VDC | Connector, 3-pole (2 + PE) | 1.24 |
| R900929043 | WE6../E | 350.0 | 110…120 VAC | Connector, 3-pole (2 + PE) | 1.61 |
| R900619455 | WE6../E | 350.0 | 24 VDC | Connector, 3-pole (2 + PE) | 1.96 |
| R900949542 | WE6../E | 350.0 | 24 VDC | Connector, 3-pole (2 + PE) | 1.98 |
| R901204258 | WE 6…E..XE | 350.0 | 230 VAC 50/60Hz | Cable gland | 2.6 |
| R900976569 | WE6../E | 350.0 | 230 VAC 50/60Hz | Connector, 3-pole (2 + PE) | 1.32 |
| R901439702 | WE6../E | 350.0 | 230 VAC 50/60Hz | Connector, 3-pole (2 + PE) | 1.8 |
| R900979316 | WE6../E | 350.0 | 230 VAC 50/60Hz | Connector, 3-pole (2 + PE) | 1.43 |
| R900944827 | WE6../E | 350.0 | 230 VAC 50/60Hz | Connector, 3-pole (2 + PE) | 1.3 |
| R900949826 | WE6../E | 350.0 | 230 VAC 50/60Hz | Connector, 3-pole (2 + PE) | 1.3 |
| R900913925 | WE6../E | 350.0 | 230 VAC 50/60Hz | Connector, 3-pole (2 + PE) | 1.32 |
| R901154088 | WE6../E | 350.0 | 230 VAC 50/60Hz | Cable gland | 1.4 |
| R900925297 | WE6../E | 350.0 | 230 VAC 50/60Hz | Cable gland | 1.43 |
| R900752493 | WE6../E | 350.0 | 230 VAC 50/60Hz | Cable gland | 1.38 |
| R901313003 | WE6../E | 350.0 | 200 VAC 50 Hz | Connector, 3-pole (2 + PE) | 1.8 |
| R901306218 | WE6../E | 350.0 | 200 VAC 50 Hz | Cable gland | 1.4 |
| R900776818 | WE6../E | 350.0 | 200 VAC 50Hz | Cable gland | 1.4 |
| R900754853 | WE6../E | 350.0 | 200 VAC 50Hz | Cable gland | 1.4 |
| R901355674 | WE6../E | 350.0 | 110 VAC (mit Gleichrichter) | Cable gland | 1.8 |
| R901384672 | WE6../E | 350.0 | 110 VAC (mit Gleichrichter) | Connector, 7-pole (6 + PE) | 1.54 |
| R901315815 | WE6../E | 350.0 | 110 VAC (mit Gleichrichter) | Cable gland | 1.64 |
Common to all listed parts
| Connection diagram | ISO 4401-03-02-0-05 |
| Size | 6 |
| Type of actuation | with solenoid actuation |
| Number of ports | 4 |
| Number of switching positions | 2 |
