Directional on/off valve Parts
Compare Directional on/off valve
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Product family | Operating pressure, max. [bar] | Supply voltage | Electrical connector | Weight [kg] |
|---|---|---|---|---|---|
| R900955470 | WE6../E | 350.0 | 220 VDC | Connector, 3-pole (2 + PE) | 1.45 |
| R900765531 | WE6../E | 350.0 | 205 VDC | Connector, 3-pole (2 + PE) | 1.44 |
| R901524429 | WE6../E | 350.0 | 205 VDC | Connector, 3-pole (2 + PE) | 1.3 |
| R901068002 | WE6../E | 350.0 | 205 VDC | Connector, 3-pole (2 + PE) | 1.42 |
| R900937351 | WE6../E | 350.0 | 205 VDC | Connector, 3-pole (2 + PE) | 1.42 |
| R900919986 | WE6../E | 350.0 | 205 VDC | Connector, 3-pole (2 + PE) | 1.42 |
| R901134299 | WE6../E | 350.0 | 205 VDC | Connector, 3-pole (2 + PE) | 1.8 |
| R901122857 | WE6../E | 350.0 | 12 VDC | Connector, 3-pole (2 + PE) | 1.44 |
| R901261810 | WE6../E | 350.0 | 12 VDC | Connector, 3-pole (2 + PE) | 1.8 |
| R901037556 | WE6../E | 350.0 | 12 VDC | Connector, 3-pole (2 + PE) | 1.46 |
| R900930176 | WE6../E | 350.0 | 12 VDC | Connector, 3-pole (2 + PE) | 1.46 |
| R900930476 | WE6../E | 350.0 | 12 VDC | Connector, 3-pole (2 + PE) | 1.46 |
| R901086316 | WE6../E | 350.0 | 12 VDC | Connector, 2-pole (Junior-Timer) | 1.44 |
| R900969239 | WE6../E | 350.0 | 125 VDC | Connector, 3-pole (2 + PE) | 1.44 |
| R901483340 | WE6../E | 350.0 | 125 VDC | Cable gland | 1.52 |
| R901407164 | WE6../E | 350.0 | 125 VDC | Cable gland | 1.8 |
| R901537510 | WE6../E | 350.0 | 125 VDC | Connector, 3-pole (2 + PE) | 1.49 |
| R900931505 | WE6../E | 350.0 | 110 VDC | Connector, 3-pole (2 + PE) | 1.44 |
| R901016764 | WE6../E | 350.0 | 110 VDC | Connector, 3-pole (2 + PE) | 1.44 |
| R900942220 | WE6../E | 350.0 | 110 VDC | Connector, 3-pole (2 + PE) | 1.44 |
| R901004377 | WE6../E | 350.0 | 110 VDC | Cable gland | 1.8 |
| R900966662 | WE6../E | 350.0 | 110 VDC | Connector, 3-pole (2 + PE) | 1.8 |

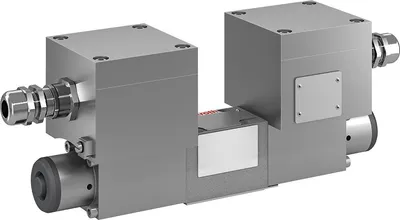

| R901248028 | WE6../.B.XD | 315.0 | 24 VDC | Cable gland | 5.3 |

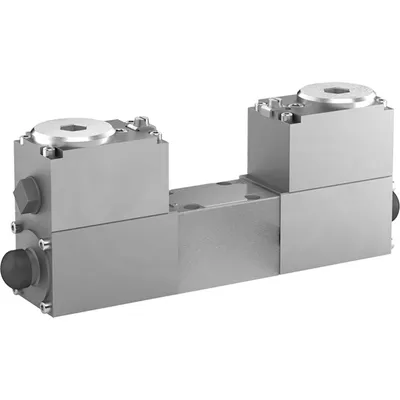

| R901478838 | WE 6../.B..VP1 | 350.0 | 24 VDC | Cable gland | 3.86 |
Common to all listed parts
| Connection diagram | ISO 4401-03-02-0-05 |
| Size | 6 |
| Type of actuation | with solenoid actuation |
| Number of ports | 4 |
| Number of switching positions | 2 |
