3VA Molded Case Circuit Breakers up to 2000 A, UL / IEC Parts

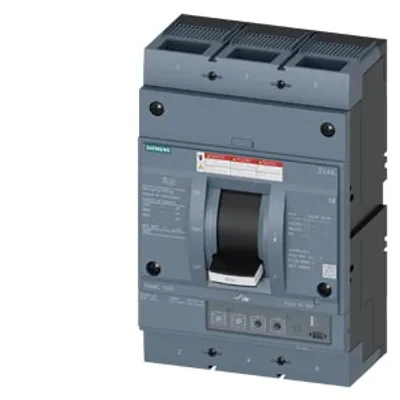

Available on requestSiemens 3VA6580-7HN32-0AA0 – Circuit breaker 3VA6 UL Frame 800 breaking capacity class C…MPN: 3VA6580-7HN32-0AA0 · Siemens
Price on request
Request a quote
Available on requestSiemens 3VA6460-6JT41-0AA0 – Circuit breaker 3VA6 UL Frame 600 breaking capacity class H…MPN: 3VA6460-6JT41-0AA0 · Siemens
Price on request
Request a quote
Available on requestSiemens 3VA6460-6JT31-0AA0 – Circuit breaker 3VA6 UL Frame 600 breaking capacity class H…MPN: 3VA6460-6JT31-0AA0 · Siemens
Price on request
Request a quote
Available on requestSiemens 3VA6460-6HN41-0AA0 – Circuit breaker 3VA6 UL Frame 600 breaking capacity class H…MPN: 3VA6460-6HN41-0AA0 · Siemens
Price on request
Request a quote

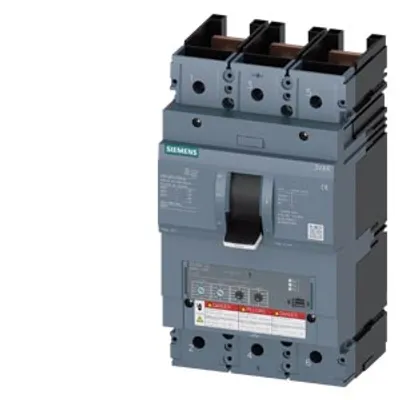

Available on requestSiemens 3VA6460-0HN31-0AA0 – Circuit breaker 3VA6 UL Frame 600 breaking capacity class E…MPN: 3VA6460-0HN31-0AA0 · Siemens
Price on request
Request a quote

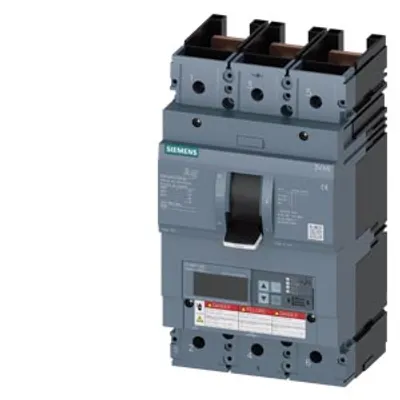

Available on requestSiemens 3VA6460-6KQ31-0AA0 – Circuit breaker 3VA6 UL Frame 600 breaking capacity class H…MPN: 3VA6460-6KQ31-0AA0 · Siemens
Price on request
Request a quote

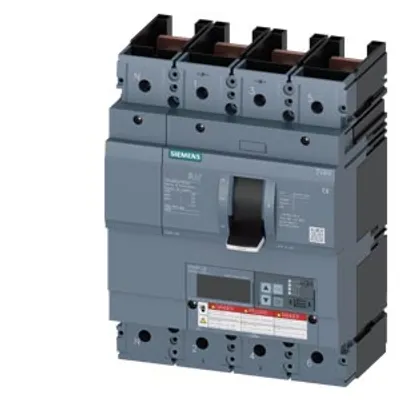

Available on requestSiemens 3VA6460-6KP41-0AA0 – Circuit breaker 3VA6 UL Frame 600 breaking capacity class H…MPN: 3VA6460-6KP41-0AA0 · Siemens
Price on request
Request a quote
Available on requestSiemens 3VA6460-8JT41-0AA0 – Circuit breaker 3VA6 UL Frame 600 breaking capacity class L…MPN: 3VA6460-8JT41-0AA0 · Siemens
Price on request
Request a quote
Available on requestSiemens 3VA6460-8HN41-0AA0 – Circuit breaker 3VA6 UL Frame 600 breaking capacity class L…MPN: 3VA6460-8HN41-0AA0 · Siemens
Price on request
Request a quote

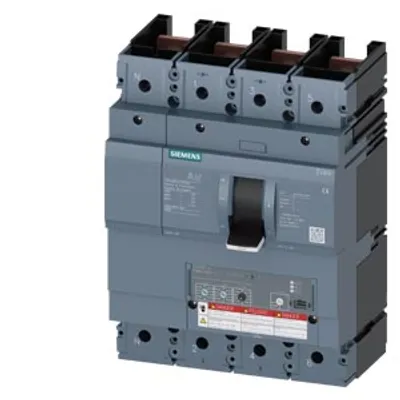

Available on requestSiemens 3VA6460-8HL41-0AA0 – Circuit breaker 3VA6 UL Frame 600 breaking capacity class L…MPN: 3VA6460-8HL41-0AA0 · Siemens
Price on request
Request a quote
Available on requestSiemens 3VA6340-5KM31-0AA0 – Circuit breaker 3VA6 UL Frame 400 breaking capacity class M…MPN: 3VA6340-5KM31-0AA0 · Siemens
Price on request
Request a quote
Available on requestSiemens 3VA6325-8KM41-2AA0 – Circuit breaker 3VA6 UL Frame 400 breaking capacity class L…MPN: 3VA6325-8KM41-2AA0 · Siemens
Price on request
Request a quote
Available on requestSiemens 3VA6325-8KM41-0AA0 – Circuit breaker 3VA6 UL Frame 400 breaking capacity class L…MPN: 3VA6325-8KM41-0AA0 · Siemens
Price on request
Request a quote
Available on requestSiemens 3VA6325-8KM31-2AA0 – Circuit breaker 3VA6 UL Frame 400 breaking capacity class L…MPN: 3VA6325-8KM31-2AA0 · Siemens
Price on request
Request a quote
Available on requestSiemens 3VA6325-5KQ41-2AA0 – Circuit breaker 3VA6 UL Frame 400 breaking capacity class M…MPN: 3VA6325-5KQ41-2AA0 · Siemens
Price on request
Request a quote
Available on requestSiemens 3VA6325-5KQ41-0AA0 – Circuit breaker 3VA6 UL Frame 400 breaking capacity class M…MPN: 3VA6325-5KQ41-0AA0 · Siemens
Price on request
Request a quote
Available on requestSiemens 3VA6325-5JT31-0AA0 – Circuit breaker 3VA6 UL Frame 400 breaking capacity class M…MPN: 3VA6325-5JT31-0AA0 · Siemens
Price on request
Request a quote
Available on requestSiemens 3VA6325-5JQ41-2AA0 – Circuit breaker 3VA6 UL Frame 400 breaking capacity class M…MPN: 3VA6325-5JQ41-2AA0 · Siemens
Price on request
Request a quote
Available on requestSiemens 3VA6325-5JQ41-0AA0 – Circuit breaker 3VA6 UL Frame 400 breaking capacity class M…MPN: 3VA6325-5JQ41-0AA0 · Siemens
Price on request
Request a quote

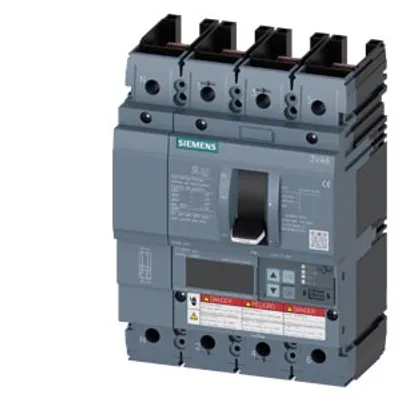

Available on requestSiemens 3VA6225-5KM41-2AA0 – Circuit breaker 3VA6 UL Frame 250 breaking capacity class M…MPN: 3VA6225-5KM41-2AA0 · Siemens
Price on request
Request a quote
Available on requestSiemens 3VA6225-5KM41-0AA0 – Circuit breaker 3VA6 UL Frame 250 breaking capacity class M…MPN: 3VA6225-5KM41-0AA0 · Siemens
Price on request
Request a quote
Available on requestSiemens 3VA6225-0KT31-0AA0 – Circuit breaker 3VA6 UL Frame 250 breaking capacity class E…MPN: 3VA6225-0KT31-0AA0 · Siemens
Price on request
Request a quote
Available on requestSiemens 3VA6225-0KQ41-0AA0 – Circuit breaker 3VA6 UL Frame 250 breaking capacity class E…MPN: 3VA6225-0KQ41-0AA0 · Siemens
Price on request
Request a quote
Available on requestSiemens 3VA6440-5KT41-0AA0 – Circuit breaker 3VA6 UL Frame 600 breaking capacity class M…MPN: 3VA6440-5KT41-0AA0 · Siemens
Price on request
Request a quoteCompare 3VA Molded Case Circuit Breakers up to 2000 A, UL / IEC
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | product designation / according to UL file | design of the overcurrent release | Net Weight | operational current — at 55 °C | operational current — at 60 °C |
|---|---|---|---|---|---|
| 3VA6580-7HN32-0AA0 | CMAE | ETU350 | 14.03 kg | 776 A | 752 A |
| 3VA6460-6JT41-0AA0 | HLAE | ETU556 | 6.9 kg | 540 A | 510 A |
| 3VA6460-6JT31-0AA0 | HLAE | ETU556 | 5.3 kg | 540 A | 510 A |
| 3VA6460-6HN41-0AA0 | HLAE | ETU350 | 6.9 kg | 575 A | 557 A |
| 3VA6460-0HN31-0AA0 | ELAE | ETU350 | 5.3 kg | 575 A | 557 A |
| 3VA6460-6KQ31-0AA0 | HLAE | ETU860 | 5.063 kg | 540 A | 510 A |
| 3VA6460-6KP41-0AA0 | HLAE | ETU850 | 6.9 kg | 540 A | 510 A |
| 3VA6460-8JT41-0AA0 | LLAE | ETU556 | 6.9 kg | 540 A | 510 A |
| 3VA6460-8HN41-0AA0 | LLAE | ETU350 | 6.9 kg | 575 A | 557 A |
| 3VA6460-8HL41-0AA0 | LLAE | ETU320 | 6.9 kg | 575 A | 557 A |
| 3VA6340-5KM31-0AA0 | MJAE | ETU830 | 5.3 kg | 375 A | 350 A |
| 3VA6325-8KM41-2AA0 | LJAE | ETU830 | 6.9 kg | 250 A | 250 A |
| 3VA6325-8KM41-0AA0 | LJAE | ETU830 | 6.9 kg | 250 A | 250 A |
| 3VA6325-8KM31-2AA0 | LJAE | ETU830 | 5.3 kg | 250 A | 250 A |
| 3VA6325-5KQ41-2AA0 | MJAE | ETU860 | 6.9 kg | 250 A | 250 A |
| 3VA6325-5KQ41-0AA0 | MJAE | ETU860 | 6.9 kg | 250 A | 250 A |
| 3VA6325-5JT31-0AA0 | MJAE | ETU556 | 5.3 kg | 250 A | 250 A |
| 3VA6325-5JQ41-2AA0 | MJAE | ETU560 | 6.9 kg | 250 A | 250 A |
| 3VA6325-5JQ41-0AA0 | MJAE | ETU560 | 6.9 kg | 250 A | 250 A |
| 3VA6225-5KM41-2AA0 | MFAE | ETU830 | 2.9 kg | 238 A | 225 A |
| 3VA6225-5KM41-0AA0 | MFAE | ETU830 | 3.2 kg | 238 A | 225 A |
| 3VA6225-0KT31-0AA0 | EFAE | ETU856 | 2.2 kg | 238 A | 225 A |
| 3VA6225-0KQ41-0AA0 | EFAE | ETU860 | 2.821 kg | 238 A | 225 A |
| 3VA6440-5KT41-0AA0 | MLAE | ETU856 | 6.9 kg | 400 A | 400 A |
Common to all listed parts
| product designation | Molded-case circuit breaker |
| design of the product | System protection |
| design of the load switch / according to UL 489 / Heating, Air Conditioning, and Refrigeration circuit breaker (HACR Type) | Yes |
| insulation voltage / rated value | 800 V |
| operating voltage / at AC / rated value | 690 V |
| adjustable response value delay time (tr) / for L-tripping / with I2t characteristic — minimum | 0.5 s |
| product component — undervoltage release | No |
| product component — voltage trigger | No |
