3VA Molded Case Circuit Breakers up to 2000 A, UL / IEC Parts
Compare 3VA Molded Case Circuit Breakers up to 2000 A, UL / IEC
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | power loss [W] / maximum | Net Weight | operational current — at 45 °C | operational current — at 50 °C | operational current — at 55 °C |
|---|---|---|---|---|---|

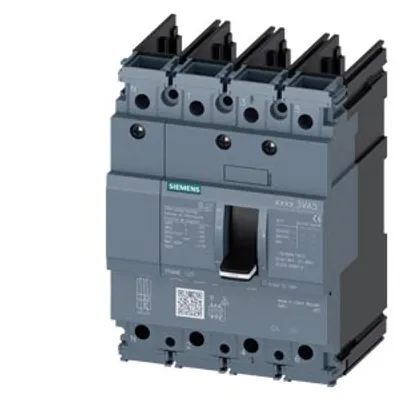

| 3VA5130-4ED41-0AA0 | 9.6 W | 1.191 kg | 29 A | 29 A | 28 A |
| 3VA5130-4ED11-1AA0 | 3.2 W | 0.38 kg | 29 A | 29 A | 28 A |
| 3VA5130-4ED11-0AA0 | 3.2 W | 360 g | 29 A | 29 A | 28 A |
| 3VA5130-1MH31-0AA0 | 3.1 W | 936 g | 30 A | 30 A | 30 A |

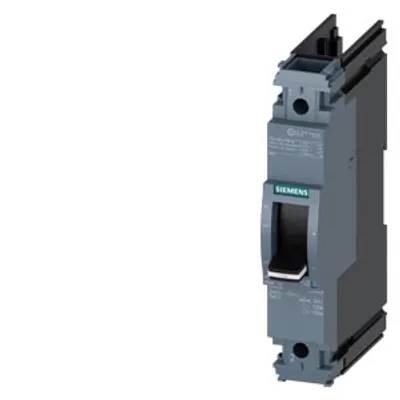

| 3VA5145-4ED11-1AA0 | 3.8 W | 0.38 kg | 44 A | 44 A | 43 A |
| 3VA5140-6EF41-0AA0 | 11.2 W | 1.195 kg | 39 A | 39 A | 38 A |
| 3VA5110-1BB21-0AA0 | 12.8 W | 650 g | 100 A | 100 A | 100 A |
| 3VA5450-7GF41-0AA0 | 122 W | 6.82 kg | 488 A | 476 A | 464 A |
| 3VA5450-7GC41-0AA0 | 122 W | 6.82 kg | 488 A | 476 A | 464 A |
| 3VA5450-7EF41-0AA0 | 122 W | 6.82 kg | 488 A | 476 A | 464 A |
| 3VA5450-7EC41-0AA0 | 122 W | 6.82 kg | 488 A | 476 A | 464 A |
| 3VA5450-6EC41-0AA0 | 122 W | 6.82 kg | 488 A | 476 A | 464 A |
| 3VA5450-6EC31-1AA0 | 122 W | 5.2 kg | 488 A | 476 A | 464 A |
| 3VA5450-6EC31-0AA0 | 122 W | 4.773 kg | 488 A | 476 A | 464 A |
| 3VA5120-4EC31-1AA0 | 12.2 W | 950 g | 20 A | 19 A | 19 A |
| 3VA5120-4EC31-0AA0 | 12.2 W | 930 g | 20 A | 19 A | 19 A |

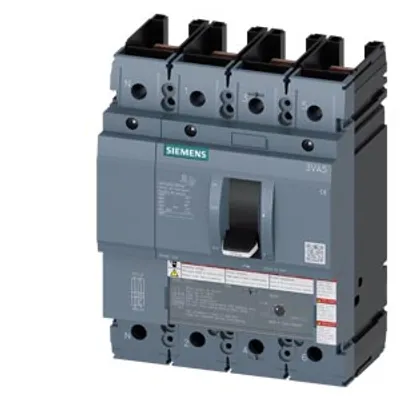

| 3VA5280-5EC41-2AA0 | 20 W | 2 800 g | 77.7 A | 75.5 A | 73.2 A |
| 3VA5280-5EC41-0AA0 | 20 W | 2.7 kg | 80 A | 80 A | 77.6 A |
| 3VA5270-7EF31-2AA0 | 17 W | 2 100 g | 68 A | 65.9 A | 63.9 A |

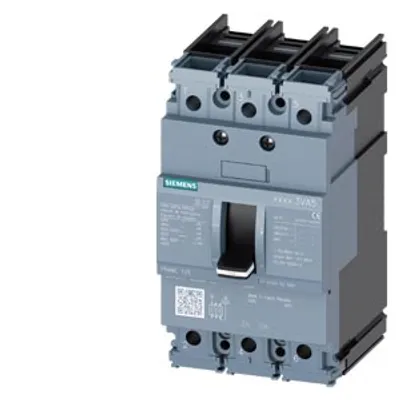

| 3VA5180-5EF31-0AA0 | 19.3 W | 956 g | 78 A | 77 A | 76 A |
| 3VA5180-5ED41-0AA0 | 19.3 W | 1.212 kg | 78 A | 77 A | 76 A |
| 3VA5180-5ED36-0AA0 | 19.3 W | 1.054 kg | 78 A | 77 A | 76 A |
| 3VA5180-5EC31-0AA0 | 19.3 W | 950 g | 78 A | 77 A | 76 A |
| 3VA5180-4EF41-0AA0 | 19.3 W | 1.187 kg | 78 A | 77 A | 76 A |
Common to all listed parts
| product designation | Molded-case circuit breaker |
| design of the load switch / according to UL 489 / Heating, Air Conditioning, and Refrigeration circuit breaker (HACR Type) | Yes |
| mechanical service life (operating cycles) / typical | 20 000 |
| product feature / for neutral conductors / upgradable/retrofittable / short-circuit and overload proof | No |
| product function — communication function | No |
| product function — other measurement function | No |
| product function / grounding protection | No |
| product component — undervoltage release | No |
