3VA Molded Case Circuit Breakers up to 2000 A, UL / IEC Parts
Available on requestSiemens 3VA5130-6ED41-0AA0 – Circuit breaker 3VA5 UL Frame 125 breaking capacity class H…MPN: 3VA5130-6ED41-0AA0 · Siemens
Price on request
Request a quote
Available on requestSiemens 3VA5282-5ED32-0AA0 – Circuit breaker 3VA5 UL Frame 250 breaking capacity class M…MPN: 3VA5282-5ED32-0AA0 · Siemens
Price on request
Request a quote

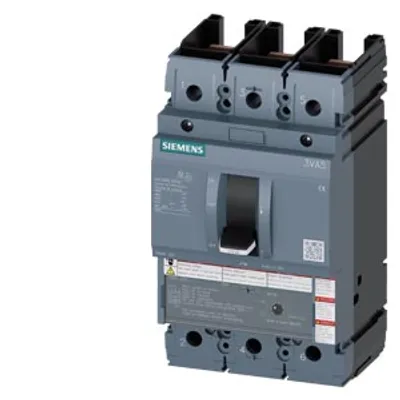

Available on requestSiemens 3VA5282-5ED31-2AA0 – Circuit breaker 3VA5 UL Frame 250 breaking capacity class M…MPN: 3VA5282-5ED31-2AA0 · Siemens
Price on request
Request a quote
Available on requestSiemens 3VA5282-5ED31-1AA0 – Circuit breaker 3VA5 UL Frame 250 breaking capacity class M…MPN: 3VA5282-5ED31-1AA0 · Siemens
Price on request
Request a quote

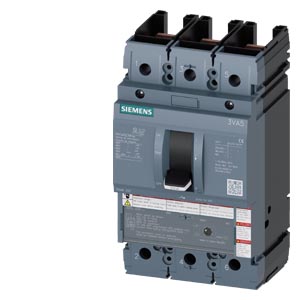

Available on requestSiemens 3VA5282-5ED31-0AA0 – Circuit breaker 3VA5 UL Frame 250 breaking capacity class M…MPN: 3VA5282-5ED31-0AA0 · Siemens
Price on request
Request a quote
Available on requestSiemens 3VA5280-7EF31-2AA0 – Circuit breaker 3VA5 UL Frame 250 breaking capacity class C…MPN: 3VA5280-7EF31-2AA0 · Siemens
Price on request
Request a quote
Available on requestSiemens 3VA5280-7ED41-0AA0 – Circuit breaker 3VA5 UL Frame 250 breaking capacity class C…MPN: 3VA5280-7ED41-0AA0 · Siemens
Price on request
Request a quote
Available on requestSiemens 3VA5125-5ED31-1AA0 – Circuit breaker 3VA5 UL Frame 125 breaking capacity class M…MPN: 3VA5125-5ED31-1AA0 · Siemens
Price on request
Request a quote
Available on requestSiemens 3VA5125-5ED31-0AA0 – Circuit breaker 3VA5 UL Frame 125 breaking capacity class M…MPN: 3VA5125-5ED31-0AA0 · Siemens
Price on request
Request a quote

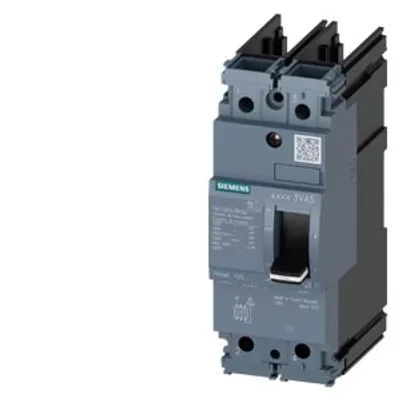

Available on requestSiemens 3VA5125-5ED21-1AA0 – Circuit breaker 3VA5 UL Frame 125 breaking capacity class M…MPN: 3VA5125-5ED21-1AA0 · Siemens
Price on request
Request a quote
Available on requestSiemens 3VA6110-6KQ41-2AA0 – Circuit breaker 3VA6 UL Frame 150 breaking capacity class H…MPN: 3VA6110-6KQ41-2AA0 · Siemens
Price on request
Request a quote
Available on requestSiemens 3VA6110-6KQ41-0AA0 – Circuit breaker 3VA6 UL Frame 150 breaking capacity class H…MPN: 3VA6110-6KQ41-0AA0 · Siemens
Price on request
Request a quote
Available on requestSiemens 3VA6115-8KM31-2AA0 – Circuit breaker 3VA6 UL Frame 150 breaking capacity class L…MPN: 3VA6115-8KM31-2AA0 · Siemens
Price on request
Request a quote
Available on requestSiemens 3VA6115-8KM31-0AA0 – Circuit breaker 3VA6 UL Frame 150 breaking capacity class L…MPN: 3VA6115-8KM31-0AA0 · Siemens
Price on request
Request a quote
Available on requestSiemens 3VA6115-8KL41-2AA0 – Circuit breaker 3VA6 UL Frame 150 breaking capacity class L…MPN: 3VA6115-8KL41-2AA0 · Siemens
Price on request
Request a quote
Available on requestSiemens 3VA6115-8KL41-0AA0 – Circuit breaker 3VA6 UL Frame 150 breaking capacity class L…MPN: 3VA6115-8KL41-0AA0 · Siemens
Price on request
Request a quote
Available on requestSiemens 3VA6580-6HM36-0AA0 – Circuit breaker 3VA6 UL Frame 800 breaking capacity class H…MPN: 3VA6580-6HM36-0AA0 · Siemens
Price on request
Request a quote

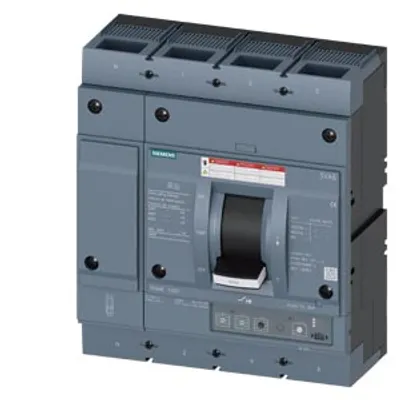

Available on requestSiemens 3VA6580-6HL42-2AA0 – Circuit breaker 3VA6 UL Frame 800 breaking capacity class H…MPN: 3VA6580-6HL42-2AA0 · Siemens
Price on request
Request a quote
Available on requestSiemens 3VA6580-6HL42-0AA0 – Circuit breaker 3VA6 UL Frame 800 breaking capacity class H…MPN: 3VA6580-6HL42-0AA0 · Siemens
Price on request
Request a quote
Available on requestSiemens 3VA6580-6HL36-2AA0 – Circuit breaker 3VA6 UL Frame 800 breaking capacity class H…MPN: 3VA6580-6HL36-2AA0 · Siemens
Price on request
Request a quote
Available on requestSiemens 3VA6110-5KP31-2AA0 – Circuit breaker 3VA6 UL Frame 150 breaking capacity class M…MPN: 3VA6110-5KP31-2AA0 · Siemens
Price on request
Request a quote

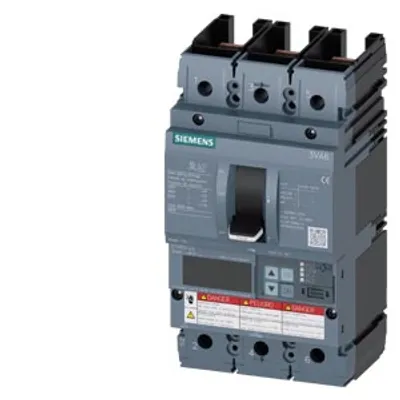

Available on requestSiemens 3VA6110-5KP31-0AA0 – Circuit breaker 3VA6 UL Frame 150 breaking capacity class M…MPN: 3VA6110-5KP31-0AA0 · Siemens
Price on request
Request a quote
Available on requestSiemens 3VA5340-1BB31-0AA0 – MOLDED CASE SWITCH 3VA5 UL FRAME 400 MAX SHORT CIRCUIT…MPN: 3VA5340-1BB31-0AA0 · Siemens
Price on request
Request a quote
Available on requestSiemens 3VA5340-0BB61-0AA0 – MOLDED CASE SWITCH 3VA5 UL FRAME 400 MAX SHORT CIRCUIT…MPN: 3VA5340-0BB61-0AA0 · Siemens
Price on request
Request a quoteCompare 3VA Molded Case Circuit Breakers up to 2000 A, UL / IEC
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | product designation / according to UL file | power loss [W] / maximum | Net Weight | operational current — at 45 °C | operational current — at 50 °C |
|---|---|---|---|---|---|
| 3VA5130-6ED41-0AA0 | HEAS | 9.6 W | 1.19 kg | 29 A | 29 A |
| 3VA5282-5ED32-0AA0 | MFAS | 9.1 W | 2 100 g | 19.2 A | 18.4 A |
| 3VA5282-5ED31-2AA0 | MFAS | 9.1 W | 2 100 g | 19.2 A | 18.4 A |
| 3VA5282-5ED31-1AA0 | MFAM | 9.1 W | 2 100 g | 19.2 A | 18.4 A |
| 3VA5282-5ED31-0AA0 | MFAS | 9.1 W | 2 100 g | 19.2 A | 18.4 A |
| 3VA5280-7EF31-2AA0 | CFAS | 20 W | 2 100 g | 77.7 A | 75.5 A |
| 3VA5280-7ED41-0AA0 | CFAS | 20 W | 2.7 kg | 80 A | 80 A |
| 3VA5125-5ED31-1AA0 | MEAM | 8.6 W | 0.88 kg | 24 A | 24 A |
| 3VA5125-5ED31-0AA0 | MEAS | 8.6 W | 941 g | 24 A | 24 A |
| 3VA5125-5ED21-1AA0 | MEAM | 6 W | 621 g | 24 A | 24 A |
| 3VA6110-6KQ41-2AA0 | HDAE | 13 W | 2.9 kg | 100 A | 100 A |
| 3VA6110-6KQ41-0AA0 | HDAE | 13 W | 3.2 kg | 100 A | 100 A |
| 3VA6115-8KM31-2AA0 | LDAE | 29 W | 2.3 kg | 150 A | 150 A |
| 3VA6115-8KM31-0AA0 | LDAE | 29 W | 2.5 kg | 150 A | 150 A |
| 3VA6115-8KL41-2AA0 | LDAE | 29 W | 2.9 kg | 150 A | 150 A |
| 3VA6115-8KL41-0AA0 | LDAE | 29 W | 3.2 kg | 150 A | 150 A |
| 3VA6580-6HM36-0AA0 | HMAE | 231 W | 17.755 kg | 800 A | 800 A |
| 3VA6580-6HL42-2AA0 | HMAE | 231 W | 17.01 kg | 800 A | 800 A |
| 3VA6580-6HL42-0AA0 | HMAE | 231 W | 17.89 kg | 800 A | 800 A |
| 3VA6580-6HL36-2AA0 | HMAE | 231 W | 17.755 kg | 800 A | 800 A |
| 3VA6110-5KP31-2AA0 | MDAE | 13 W | 2.3 kg | 100 A | 100 A |
| 3VA6110-5KP31-0AA0 | MDAE | 13 W | 2.5 kg | 100 A | 100 A |
| 3VA5340-1BB31-0AA0 | CJAS | 120 W | 5.2 kg | 392 A | 384 A |
| 3VA5340-0BB61-0AA0 | HJAS | 80 W | 4.95 kg | 400 A | 400 A |
Common to all listed parts
| product designation | Molded-case circuit breaker |
| design of the load switch / according to UL 489 / Heating, Air Conditioning, and Refrigeration circuit breaker (HACR Type) | Yes |
| product component — undervoltage release | No |
| product component — voltage trigger | No |
| product component — trip indicator | No |
| number of CO contacts / for auxiliary contacts | 0 |
| protection class IP / on the front | IP40 |
| ambient temperature — during operation / minimum | -25 °C |
