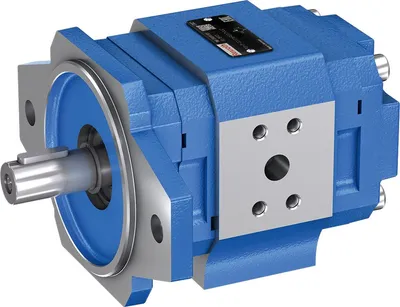

Internal gear pumps Parts
























Compare Internal gear pumps
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Max. flow [l/min] | Size | Direction of rotation | Seals | Weight [kg] |
|---|---|---|---|---|---|
| R901281697 | 39.9 | 13 | clockwise rotation | FKM | 6.9 |
| R901132301 | 39.9 | 13 | counterclockwise rotation | NBR | 6.78 |
| R901511368 | 39.9 | 13 | counterclockwise rotation | FKM | 6.78 |
| R900961557 | 39.9 | 13 | counterclockwise rotation | FKM | 6.82 |
| R901244017 | 39.9 | 13 | clockwise rotation | NBR | 7.44 |
| R900951304 | 39.9 | 13 | clockwise rotation | FKM | 7.68 |
| R900961560 | 39.9 | 13 | clockwise rotation | FKM | 6.82 |
| R900961554 | 39.9 | 13 | clockwise rotation | FKM | 7.42 |
| R901167731 | 33.0 | 11 | clockwise rotation | NBR | 6.52 |
| R901443647 | 33.0 | 11 | clockwise rotation | FKM | 6.54 |
| R900961556 | 33.0 | 11 | counterclockwise rotation | FKM | 6.54 |
| R901285746 | 33.0 | 11 | clockwise rotation | NBR | 7.08 |
| R900951303 | 33.0 | 11 | clockwise rotation | FKM | 7.31 |
| R901475731 | 33.0 | 11 | clockwise rotation | FKM | 6.76 |
| R900961559 | 33.0 | 11 | clockwise rotation | FKM | 6.52 |
| R900961553 | 33.0 | 11 | counterclockwise rotation | FKM | 7.1 |
| R901417213 | 24.6 | 8 | clockwise rotation | NBR | 6.42 |
| R900961551 | 24.6 | 8 | counterclockwise rotation | FKM | 6.29 |
| R901236012 | 24.6 | 8 | clockwise rotation | NBR | 6.26 |
| R901423186 | 24.6 | 8 | clockwise rotation | FKM | 6.43 |
| R900951302 | 24.6 | 8 | counterclockwise rotation | FKM | 6.43 |
| R900961552 | 24.6 | 8 | clockwise rotation | FKM | 6.24 |
| R900961548 | 24.6 | 8 | clockwise rotation | FKM | 6.28 |
| R901158116 | 19.5 | 6 | clockwise rotation | NBR | 6.22 |
Common to all listed parts
| Displacement type | constant |
| Product family | PGH |
| Operating pressure, max. [bar] | 315.0 |
| Through-drive | with |
| Operating pressure max. special fluids [bar] | 210 |
