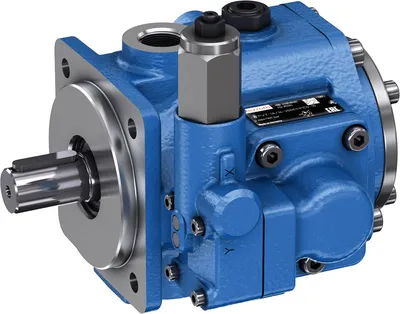

Rotary vane variable displacement pumps Parts
Compare Rotary vane variable displacement pumps
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Operating pressure, max. [bar] | Hydraulic fluid | Seals | Weight [kg] |
|---|---|---|---|---|
| R901456605 | 160.0 | HLP; HLPD; HVLP; HVLPD | NBR | 20.4 |
| R900768658 | 160.0 | HLP; HLPD; HVLP; HVLPD | NBR | 19.96 |
| R901022287 | 160.0 | HLP; HLPD; HVLP; HVLPD | NBR | 18.84 |
| R901382863 | 160.0 | HLP; HLPD; HVLP; HVLPD | NBR | 20.72 |
| R900509506 | 160.0 | HLP; HLPD; HVLP; HVLPD | NBR | 19.86 |
| R900941543 | 160.0 | HLP; HLPD; HVLP; HVLPD | NBR | 20.55 |
| R901375575 | 160.0 | HLP; HLPD; HVLP; HVLPD | NBR | 21.62 |
| R900933323 | 160.0 | HLP; HLPD; HVLP; HVLPD | NBR | 21.89 |
| R900919510 | 160.0 | HLP; HLPD; HVLP; HVLPD | NBR | 20.78 |
| R900517464 | 160.0 | HLP; HLPD; HVLP; HVLPD | NBR | 21.4 |
| R900586235 | 160.0 | HLP; HLPD; HVLP; HVLPD | NBR | 20.07 |
| R901548340 | 160.0 | HLP; HLPD; HVLP; HVLPD | NBR | 18.72 |
| R901453826 | 160.0 | HLP; HLPD; HVLP; HVLPD | NBR | 19.87 |
| R901381715 | 160.0 | HLP; HLPD; HVLP; HVLPD | NBR | 18.8 |
| R901497449 | 160.0 | HLP; HLPD; HVLP; HVLPD | NBR | 15 |
| R900523267 | 160.0 | HLP; HLPD; HVLP; HVLPD | NBR | 18.78 |
| R900580383 | 160.0 | HLP; HLPD; HVLP; HVLPD | NBR | 19.87 |
| R901508726 | 160.0 | HEES; HETG; HFDU | FKM | 12 |
| R901483535 | 160.0 | HEES; HETG; HFDU | FKM | 18.68 |
| R900546886 | 160.0 | HEES; HETG; HFDU | FKM | 19.02 |
| R900562475 | 160.0 | HEES; HETG; HFDU | FKM | 18.88 |
| R901231523 | 80.0 | HLP; HLPD; HVLP; HVLPD | NBR | 16.88 |
| R901226880 | 80.0 | HLP; HLPD; HVLP; HVLPD | NBR | 15.5 |
| R901563559 | 80.0 | HLP; HLPD; HVLP; HVLPD | NBR | 16.42 |
Common to all listed parts
| Displacement type | variable |
| Size [cm³] | 30 |
| Product family | PV7...C/D/N/W |
| Max. flow [l/min] | 43.5 |
| Through-drive | with |
| Direction of rotation | clockwise rotation |
| Shaft end | Cylindrical Ø 25 mm with fitting key, ISO 3019-2 |
| Mounting flange | 4-hole mounting flange 100B4HW according to ISO 3019-2 |
