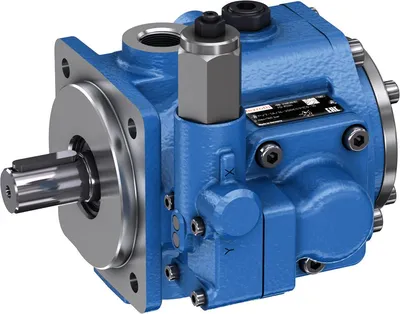

Rotary vane variable displacement pumps Parts
Compare Rotary vane variable displacement pumps
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Operating pressure, max. [bar] | Max. flow [l/min] | Hydraulic fluid | Seals | Weight [kg] |
|---|---|---|---|---|---|
| R901507923 | 160.0 | 108.0 | HEES; HETG; HFDU | FKM | 31.98 |
| R901468828 | 160.0 | 108.0 | HEES; HETG; HFDU | FKM | 31.98 |
| R900546887 | 160.0 | 108.0 | HEES; HETG; HFDU | FKM | 36.36 |
| R900571305 | 160.0 | 108.0 | HEES; HETG; HFDU | FKM | 36 |
| R901059512 | 80.0 | 104.0 | HLP; HLPD; HVLP; HVLPD | NBR | 29.5 |
| R976718445 | 80.0 | 104.0 | HLP; HLPD; HVLP; HVLPD | NBR | 28.66 |
| R900539886 | 80.0 | 104.0 | HLP; HLPD; HVLP; HVLPD | NBR | 28.48 |
| R901163657 | 80.0 | 104.0 | HLP; HLPD; HVLP; HVLPD | NBR | 31 |
| R900751358 | 80.0 | 104.0 | HLP; HLPD; HVLP; HVLPD | NBR | 31.05 |
| R900719062 | 80.0 | 104.0 | HLP; HLPD; HVLP; HVLPD | NBR | 30.56 |
| R900711250 | 80.0 | 104.0 | HLP; HLPD; HVLP; HVLPD | NBR | 30.85 |
| R901197066 | 80.0 | 104.0 | HLP; HLPD; HVLP; HVLPD | NBR | 30.58 |
| R900539468 | 80.0 | 104.0 | HLP; HLPD; HVLP; HVLPD | NBR | 30.5 |
| R900561581 | 80.0 | 104.0 | HLP; HLPD; HVLP; HVLPD | NBR | 29.03 |
| R901320923 | 80.0 | 104.0 | HLP; HLPD; HVLP; HVLPD | NBR | 29 |
| R900776736 | 80.0 | 104.0 | HLP; HLPD; HVLP; HVLPD | NBR | 29.8 |
| R900535588 | 80.0 | 104.0 | HLP; HLPD; HVLP; HVLPD | NBR | 28.83 |
| R901413997 | 80.0 | 104.0 | HEES; HETG; HFDU | FKM | 27.8 |
| R900922707 | 80.0 | 104.0 | HEES; HETG; HFDU | FKM | 28.6 |
| R901116904 | 80.0 | — | HLP; HLPD; HVLP; HVLPD | NBR | 29.42 |
| R901064326 | 80.0 | — | HLP; HLPD; HVLP; HVLPD | NBR | 26.8 |
| R901221506 | 160.0 | 66.0 | HLP; HLPD; HVLP; HVLPD | NBR | 0 |
| R901244836 | 160.0 | 66.0 | HLP; HLPD; HVLP; HVLPD | NBR | 32.42 |
| R901254170 | 160.0 | 66.0 | HLP; HLPD; HVLP; HVLPD | NBR | 32.42 |
Common to all listed parts
| Displacement type | variable |
| Product family | PV7...C/D/N/W |
| Through-drive | with |
| Direction of rotation | clockwise rotation |
| Shaft end | Cylindrical Ø 32 mm with fitting key, ISO 3019-2 |
| Mounting flange | 4-hole mounting flange 125B4HW according to ISO 3019-2 |
