Industrial valves Parts
Compare Industrial valves
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Model Code 1 | Product length in | Product length mm | Product width in | Product width mm |
|---|---|---|---|---|---|

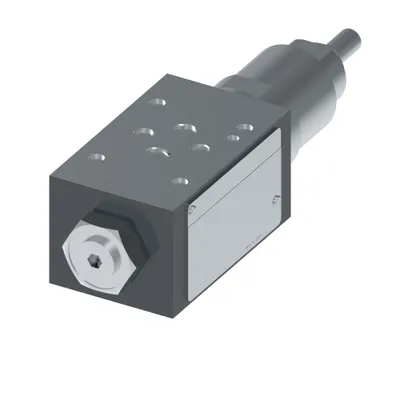

| 02-156057 | DGMR3TAAWB40 | 8.190 | 208.026 | 2.820 | 71.628 |
| 02-156056 | DGMC3PTCHB41 | 6.500 | 165.100 | 1.870 | 47.498 |

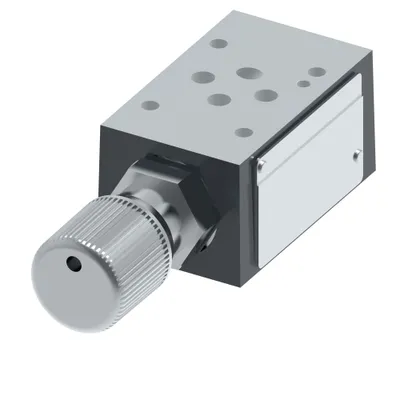

| 02-156050 | DGMC3PTGHB41 | 6.500 | 165.100 | 1.870 | 47.498 |
| 02-156046 | CVCS25ZDA3B29W10 | 4.020 | 102.108 | 4.020 | 102.108 |

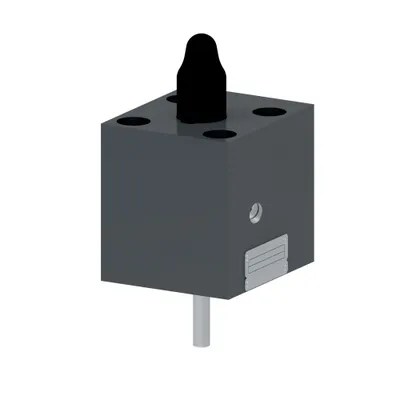

| 02-156044 | CVCS32ZDA3B29W10 | 4.120 | 104.648 | 4.120 | 104.648 |

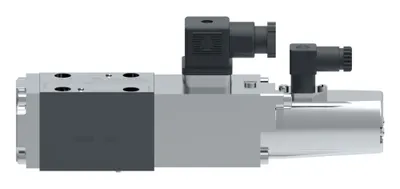

| 02-156041 | KSDG4V392L40MU1H711 | 9.090 | 230.886 | 1.890 | 48.006 |

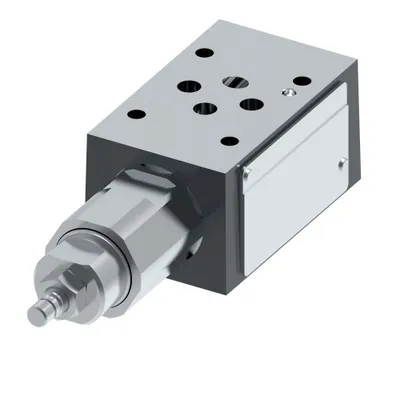

| 02-156036 | DGMC3PTAWS41 | 6.200 | 157.480 | 1.870 | 47.498 |

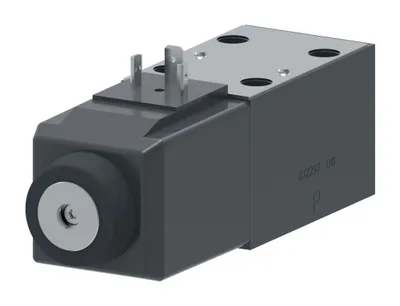

| 02-156033 | KCG3L160DZMUH110P15T14 | 6.280 | 159.512 | 1.880 | 47.752 |
| 02-156031 | KCG3L100DZMUH110 | 6.280 | 159.512 | 1.880 | 47.752 |
| 02-156020 | KXCG8W2503ZMUH110 | 7.400 | 187.960 | 4.250 | 107.95 |
| 02-156019 | KXCG8W1603ZMUH110 | 7.400 | 187.960 | 4.250 | 107.95 |
| 02-156014 | KXG8W1603ZMUH110 | 7.400 | 187.960 | 4.250 | 107.95 |
| 02-156013 | KXG8W1003ZMUH110 | 6.900 | 175.260 | 3.650 | 92.71 |
| 02-156002 | KXCG6W2503ZMUH110 | 7.100 | 180.340 | 3.650 | 92.71 |
| 02-156001 | KXCG6W1603ZMUH110 | 7.100 | 180.340 | 3.650 | 92.71 |
| 02-156000 | KXCG6W1003ZMUH110 | 7.100 | 180.340 | 3.650 | 92.71 |
| 02-155997 | KXG6W2503ZMUH110 | 7.100 | 180.340 | 3.650 | 92.71 |
| 02-155996 | KXG6W1603ZMUH110 | 7.100 | 180.340 | 3.650 | 92.71 |
| 02-155995 | KXG6W1003ZMUH110 | 7.100 | 180.340 | 3.650 | 92.71 |
| 02-155988 | KCG8W3503ZMUH110 | 7.200 | 182.880 | 4.200 | 106.68 |

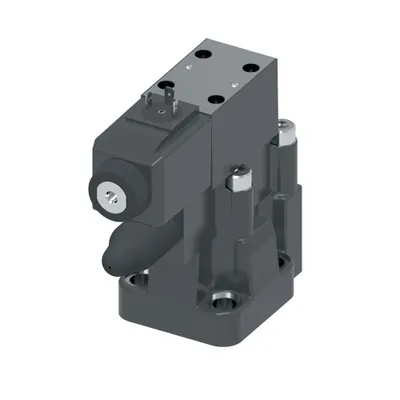

| 02-155987 | KCG8W2503ZMUH110 | 7.200 | 182.880 | 4.200 | 106.68 |
| 02-155986 | KCG8W1603ZMUH110 | 7.200 | 182.880 | 4.200 | 106.68 |
| 02-155978 | KCG6W3503ZMUH110 | 7.070 | 179.578 | 3.230 | 82.042 |
| 02-155977 | KCG6W2503ZMUH110 | 7.070 | 179.578 | 3.230 | 82.042 |
Common to all listed parts
| Working temp min C | -20 |
| Working temp min F | -4 |
