Danfoss 02-156041

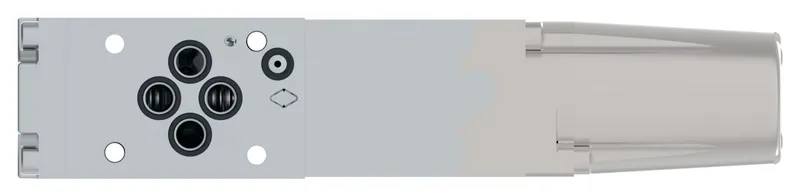

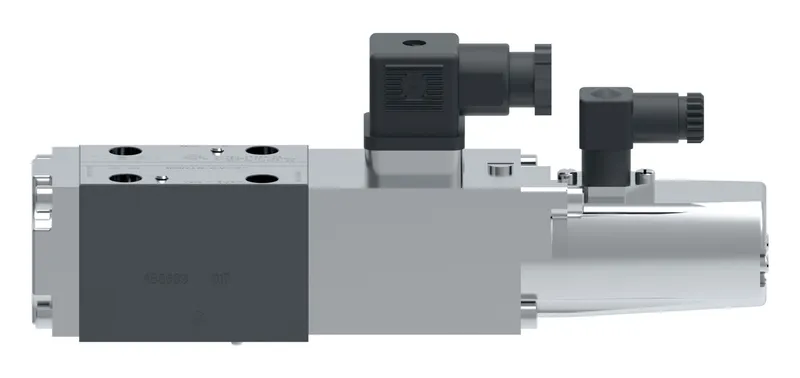

KSDG4V 3 92L 40 M U1 H711, KSDG4V392L40MU1H711

MPN: 02-156041
Category: Industrial valves

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 02-156041?

Danfoss KSDG4V 3 92L 40 M U1 H711, KSDG4V392L40MU1H711, manufacturer part number 02-156041. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

A Port flow LPM	40.00
A Port flow USGPM	10.60
Actuation Type	Solenoid controlled
B Port flow LPM	40.00
B Port flow USGPM	10.60
Brand	Vickers by Danfoss
Build orientation	Solenoid at B port end
Build type	Standard
Coil voltage	24 Volt DC
Command input	None
Communication protocol	None
Design Series	11 Series
Electrical Connection	ISO4400 with fitted plugs
Feedback sensor	Yes
Fluid Cleanliness	17/15/12 micron
Fluid compatibility	Antiwear hydraulic oils and non alkyl-based Phosphate Esters
Interface	ISO4401-03/NFPA D03/CETOP 3/NG06
Manual override	Plain
Maximum pressure BAR	350
Maximum pressure PSI	5000
Model Code 1	KSDG4V392L40MU1H711
On board electronics	No
Performance	Servo
Product height in	3.430
Product height mm	87.122
Product length in	9.090
Product length mm	230.886
Product width in	1.890
Product width mm	48.006
ProFX compatible	No
Reducer module	No
Reverse flow check	No
Seal type	Viton
Special features	None
Spool Type	Closed centre (all ports)
Stage	Single stage
Symmetric flow	Yes
Tank port rating BAR	210
Tank port rating PSI	3000
Valve Mount Type	Subplate
Valve type	Proportional directional
Working temp max C	70
Working temp max F	158
Working temp min C	-20
Working temp min F	-4
