Cartridge valves Parts
Browse Subcategories
Compare Cartridge valves
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Model Code 1 | Product height in | Product height mm | Product length in | Product length mm |
|---|---|---|---|---|---|
| 02-180973 | SBV11-8-C-0-12D-G-P | 1.640 | 41.656 | 3.090 | 78.486 |

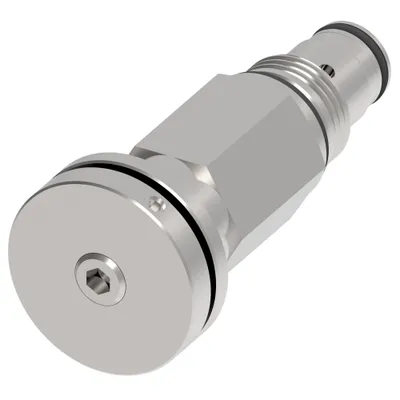

| 02-180952 | FAR1-10-K-0-10.0 | 1.500 | 38.100 | 3.650 | 92.710 |

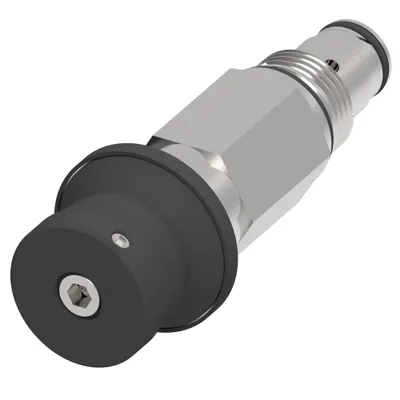

| 02-180950 | FAR1-10-H-0-10.0 | 1.500 | 38.100 | 4.000 | 101.600 |
| 02-180912 | SV3-12-C-A-12T-24D-G | 5.870 | 149.098 | 3.500 | 88.900 |

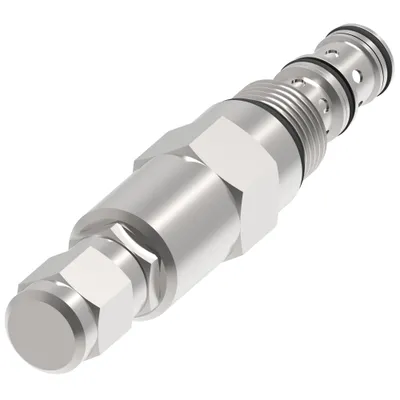

| 02-180870 | PRV11-12-C-0-15-5 | 1.000 | 25.400 | 5.650 | 143.510 |

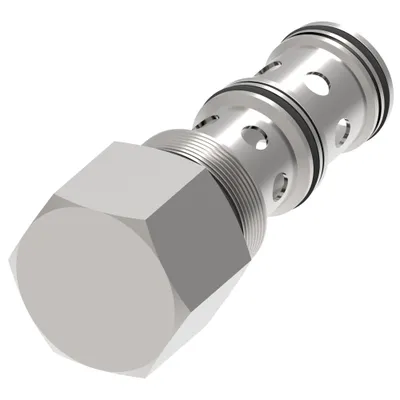

| 02-180835 | PFR1-16-F-0-17.0 | 1.500 | 38.100 | 3.870 | 98.298 |

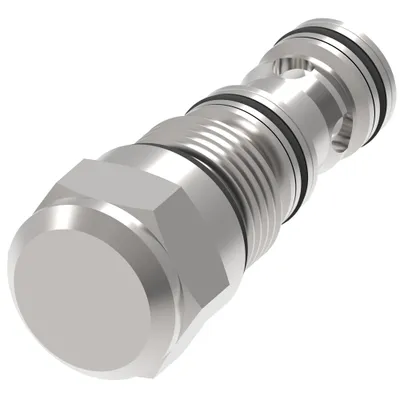

| 02-180710 | DPS2-10-V-F-F-0-160 | 1.000 | 25.400 | 3.750 | 95.250 |

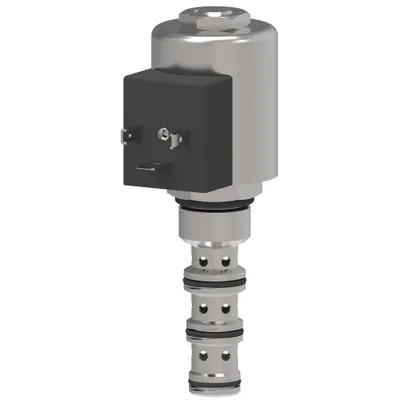

| 02-180695 | SV1-10-4-M-0-24D-G | 1.930 | — | 4.700 | 119.380 |

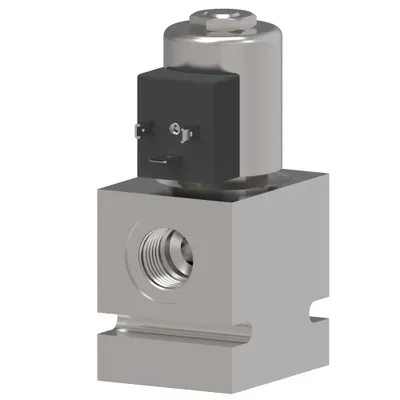

| 02-180690 | SV13-16-C-S-12T-24D-G | 5.520 | — | 3.500 | 88.900 |

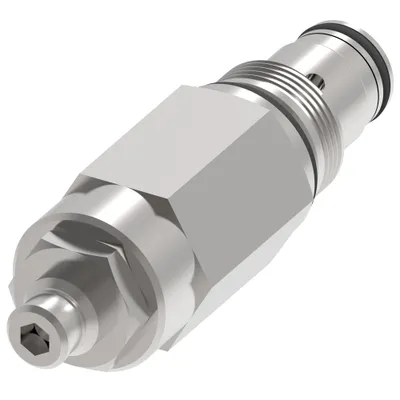

| 02-180682 | — | 1.500 | 38.100 | 4.940 | 125.476 |
| 02-180681 | FAR1-12-S-0-10.0 | 1.250 | 31.750 | 4.410 | 112.014 |

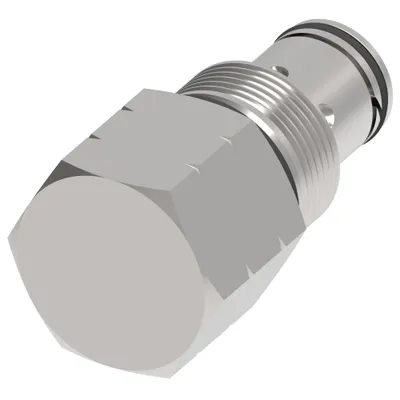

| 02-180646 | FR5-10-F-0-3.2 | 1.000 | 25.400 | 2.070 | 52.578 |

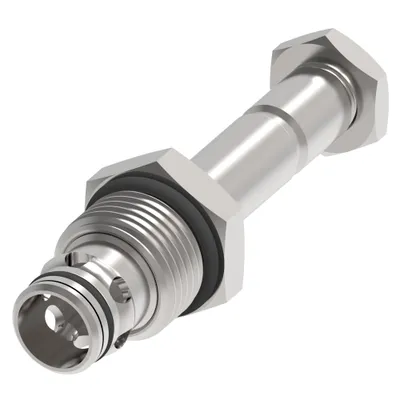

| 02-180579 | SV1-16-C-R-0-00 | 1.930 | 49.022 | 4.250 | 107.950 |

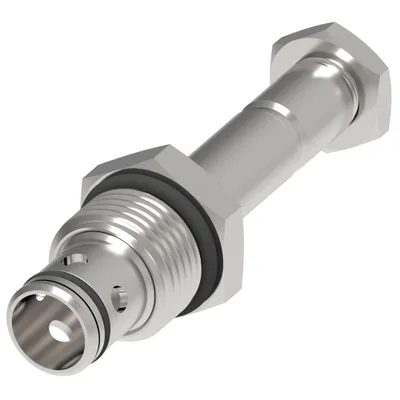

| 02-180578 | SV1-10-C-R-0-00 | 1.920 | 48.768 | 3.500 | 88.900 |

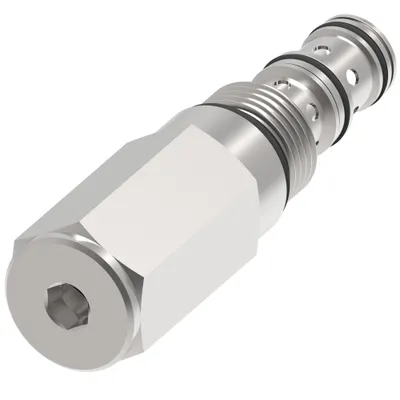

| 02-180569 | PRV12-10-I-0-30-XXX | 1.000 | 25.400 | 3.870 | 98.298 |

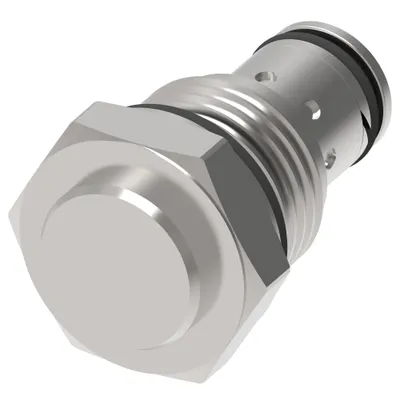

| 02-180553 | CV16-10-V-P-0-5 | 1.000 | 25.400 | 1.560 | 39.624 |
| 02-180552 | CV16-10-V-P-0-25 | 1.000 | 25.400 | 1.560 | 39.624 |

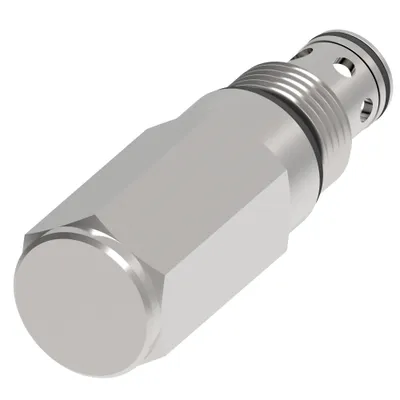

| 02-180545 | RV5-10-F-0-35-24 | 1.000 | — | 3.330 | 84.582 |
| 02-180540 | — | 1.000 | 25.400 | 3.890 | 98.806 |

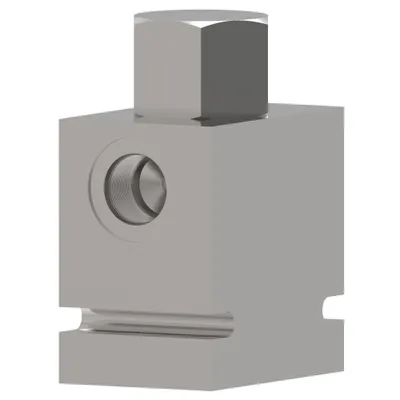

| 02-180527 | PFR1-10-F-6T-1.1 | 3.250 | 82.550 | 2.500 | 63.500 |

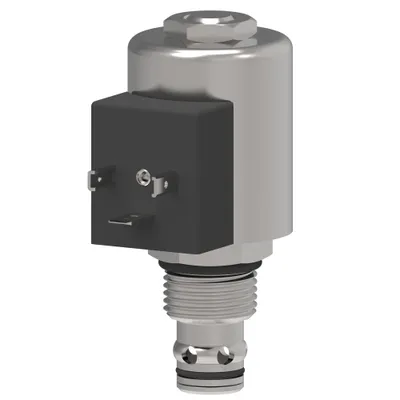

| 02-180514 | SV13-20-C-0-120A-G-H | 1.920 | 48.768 | 4.770 | 121.158 |

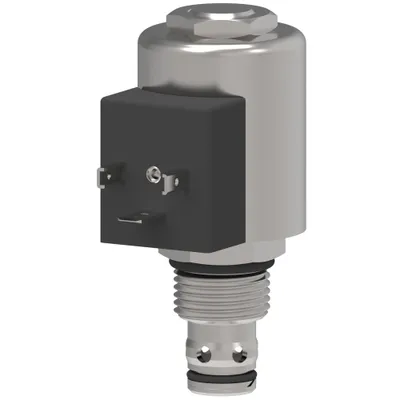

| 02-180508 | SV15-8-O-0-120A-G-P | 1.640 | 41.656 | 3.080 | 78.232 |

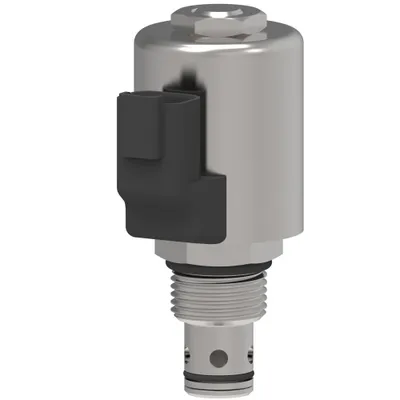

| 02-180504 | SV5-8-C-0-12D-N-S | 1.640 | — | 3.080 | 78.232 |

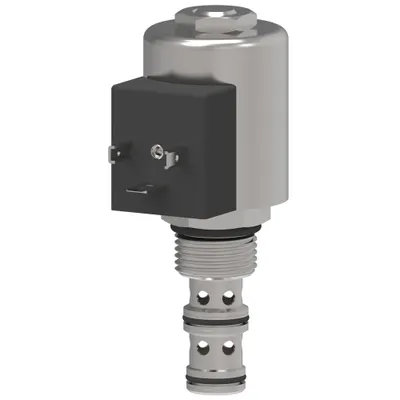

| 02-180484 | — | 1.640 | 41.656 | 3.600 | 91.440 |
