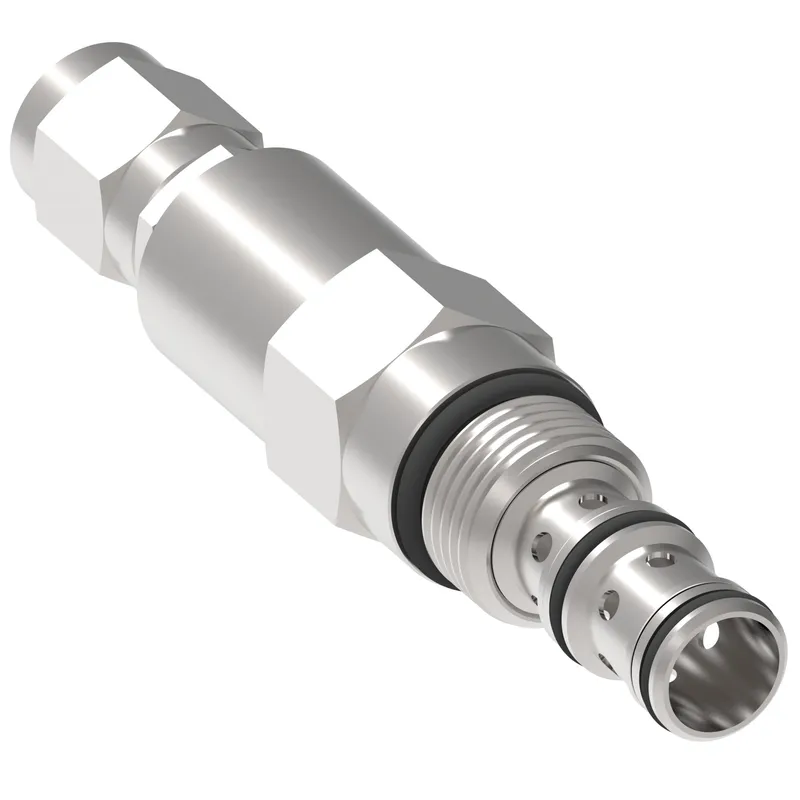

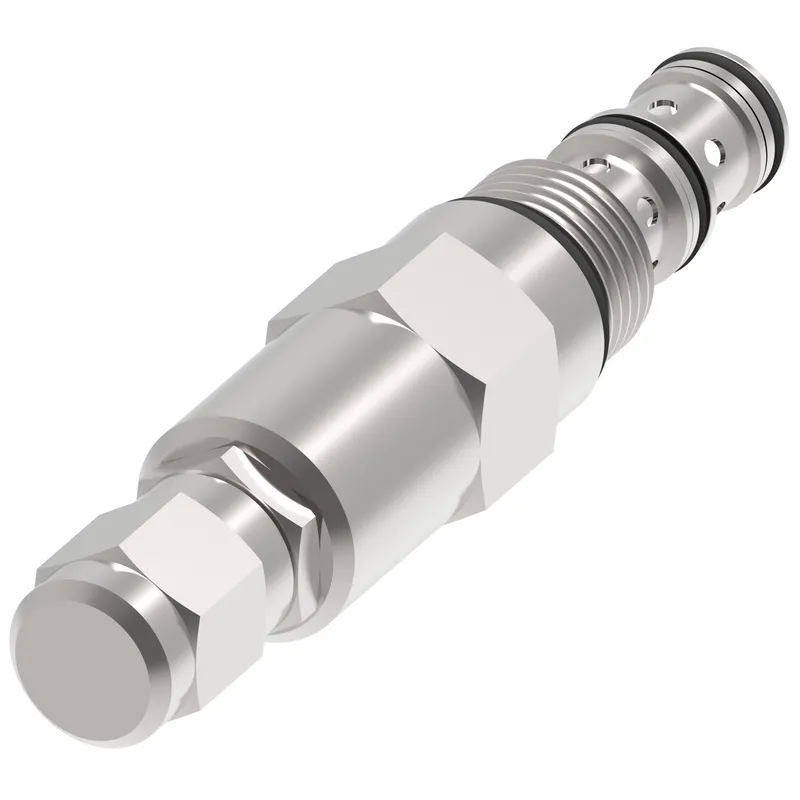

Danfoss 02-180870

PRV11-12-C-0-15/5, PRV11-12-C-0-15-5

MPN: 02-180870
Category: Cartridge valves

Price and lead time confirmed within 1 business day

Request a Quote

1We check stock, condition and lead time
2You get a written quote by email
3Approve it and we ship — in-stock parts within 1 business day

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
100% positive eBay feedback
Ships via

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 02-180870?

Danfoss PRV11-12-C-0-15/5, PRV11-12-C-0-15-5, manufacturer part number 02-180870. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Adjustment type	Cap
Brand	Vickers by Danfoss
Cavity	C-12-3
Factory set pressrue BAR	34.000
Factory set pressrue PSI	501.000
Flow rate GPM	30.00
Flow rate LPM	114.000
Fluid compatibility	MIL-H-5606, SAE10, SAE20, etc
Function	Pressure Reducing/Relieving
Housing	No
Housing material	None
Installation type	Screw-in Cartridge
Leakage	820 cc/min
Max working pressure BAR	100.000
Max working pressure PSI	1454.000
Min working pressure BAR	10.000
Min working pressure PSI	145.000
Model Code 1	PRV11-12-C-0-15-5
Number of housing ports	3
Number of valve ports	3
Operating temperature	-40 C to 120 C (-40 to 248 F)
Operation	Pilot operated
Port size	None
Port type	Cartridge Only
Product height in	1.000
Product height mm	25.400
Product length in	5.650
Product length mm	143.510
Product width in	1.000
Product width mm	25.400 mm
Recommended filtration level	18/16/13
Seal type	Buna-N
Special features	None
Style	Spool

02-180870: frequently asked questions

When can 02-180870 be shipped?

02-180870 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 02-180870 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 02-180870 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 02-180870, subject to availability and destination.
