Cartridge valves Parts
Browse Subcategories
Compare Cartridge valves
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Model Code 1 | Product height in | Product height mm | Product length in | Product length mm |
|---|---|---|---|---|---|
| 02-163241 | FCV7-10-C-0-20 | 1.000 | 25.400 | 2.980 | 75.692 |
| 02-163235 | FCV7-10-V-C-0-NVF | 1.000 | 25.400 | 2.980 | 75.692 |
| 02-163234 | FCV7-10-V-S-0-FF | 1.000 | 25.400 | 2.430 | 61.722 |
| 02-163026 | FCV6-16-V-K-0-NV | 1.500 | 38.100 | 3.760 | 95.504 |
| 02-163025 | FCV6-16-V-S-0-NV | 1.500 | 38.100 | 3.760 | 95.504 |

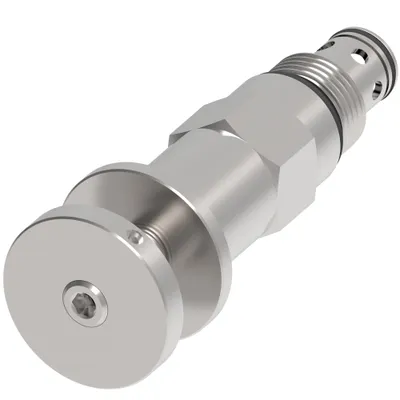

| 02-163022 | FCV7-10-K-0-10 | 1.500 | 38.100 | 2.630 | 66.802 |
| 02-163017 | FCV7-10-S-0-10 | 1.000 | 25.400 | 2.430 | 61.722 |
| 02-163008 | FCV7-10-V-S-0-40 | 1.000 | 25.400 | 2.430 | 61.722 |

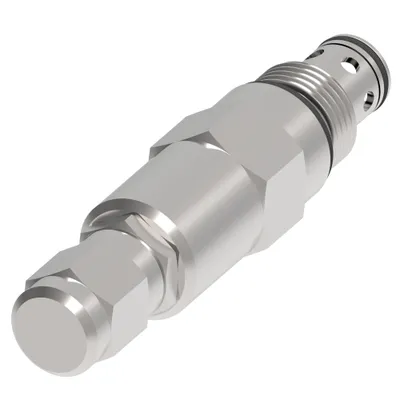

| 02-162977 | FCV6-16-V-C-0-NV | 1.500 | 38.100 | 3.760 | 95.504 |

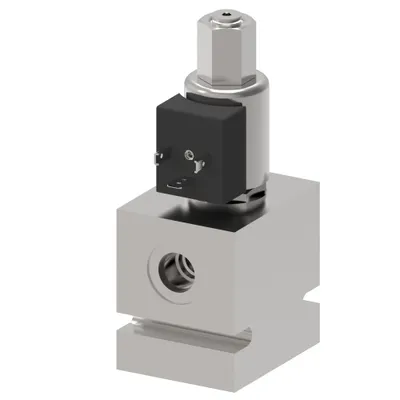

| 02-162907 | ERV1-10-10.00-6T-12D-G | 5.370 | 136.398 | 2.500 | 63.500 |
| 02-162885 | FCV11-12-S-0-NV | 1.250 | 31.750 | 3.400 | 86.360 |
| 02-162829 | FCV7-10-K-0-40 | 1.500 | 38.100 | 2.630 | 66.802 |

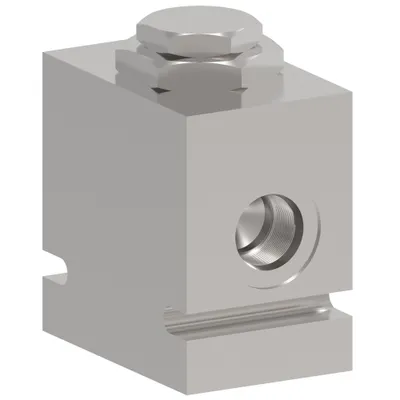

| 02-162533 | ADV1-16-12T-100 | 2.640 | 67.056 | 1.500 | 38.100 |

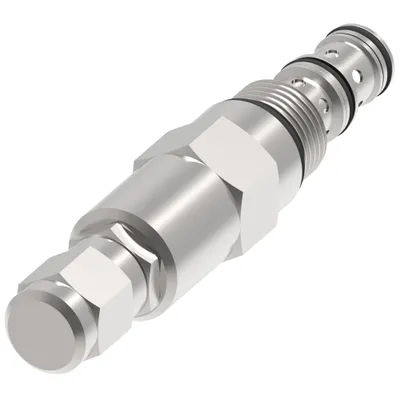

| 02-162505 | PSV1-10-C-0-24-XXX | 1.000 | 25.400 | 4.960 | 125.984 |

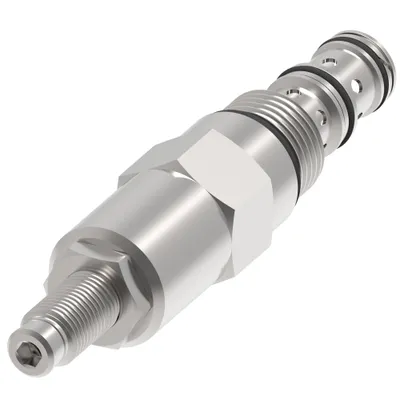

| 02-162502 | PRV1-10-S-0-12-4 | 1.000 | 25.400 | 4.960 | 125.984 |
| 02-162457 | DPS2-10-P-S-0-40 | 1.000 | 25.400 | 3.750 | 95.250 |
| 02-162440 | RV3-16-S-0-13-10 | 1.500 | — | 5.840 | 148.336 |

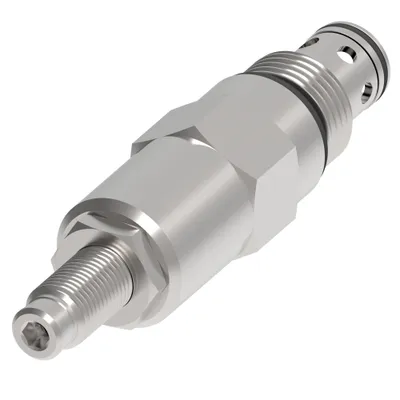

| 02-162412 | RV8-10-V-S-0-4-XXX | 1.000 | — | 3.480 | 88.392 |
| 02-162328 | PSV7-10-C-0-18-XXX | 1.000 | 25.400 | 4.960 | 125.984 |

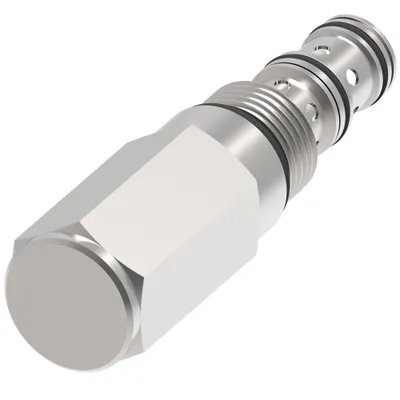

| 02-162322 | PRV2-10-F-0-20-7.5 | 1.000 | 25.400 | 3.890 | 98.806 |
| 02-162296 | RV5-10-S-0-35-27.5 | 1.000 | 25.400 | 4.380 | 111.252 |
| 02-162250 | PRV1-10-C-0-2-XXX | 1.000 | 25.400 | 4.960 | 125.984 |

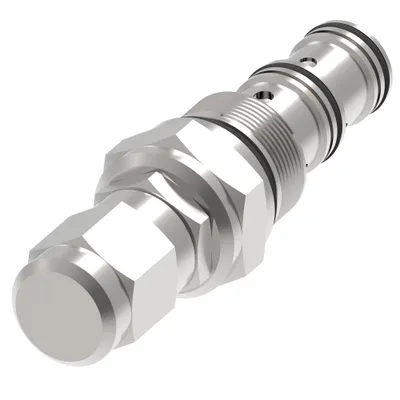

| 02-162084 | PUV3-10-C-0-85-30-26 | 1.000 | 25.400 | 3.620 | 91.948 |

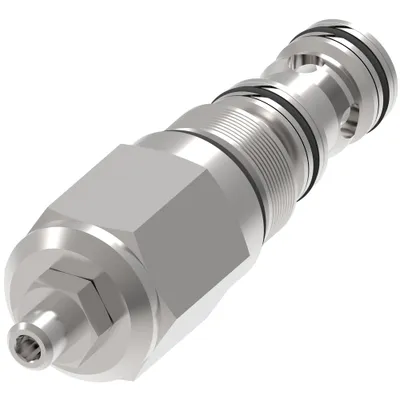

| 02-161888 | DPS2-16-F-S-0-160 | 1.500 | 38.100 | 4.400 | 111.760 |
Common to all listed parts
| Installation type | Screw-in Cartridge |
