Cartridge valves Parts
Browse Subcategories
Compare Cartridge valves
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Model Code 1 | Product height in | Product length in | Product length mm | Product width in |
|---|---|---|---|---|---|

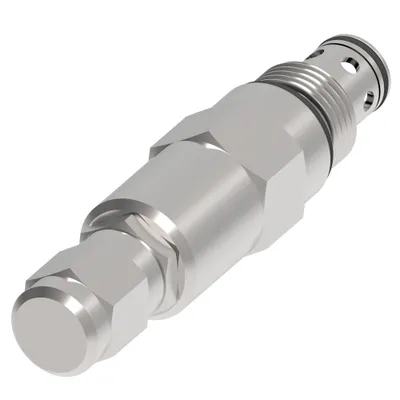

| 02-171224 | RV3A-10-C-0-36-XXX | 1.000 | 4.380 | 111.252 | 1.000 |

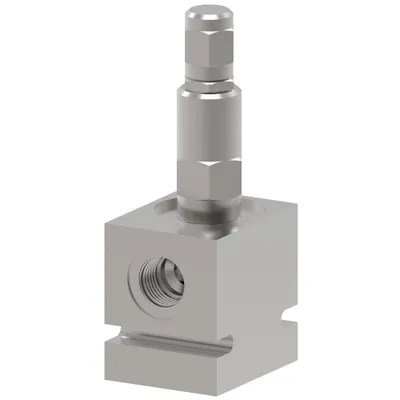

| 02-171220 | RV3-10-C-8T-36-XXX | 5.800 | 2.500 | 63.500 | 1.140 |

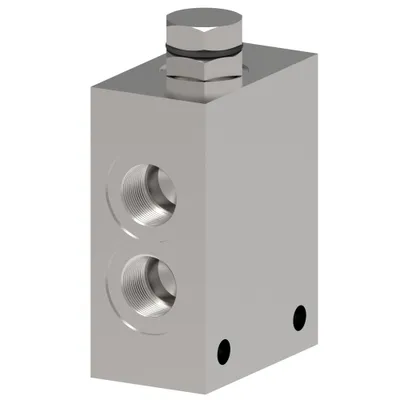

| 02-171136 | PTS1-10-V-6T-40 | 4.250 | 3.000 | 76.200 | 2.000 |

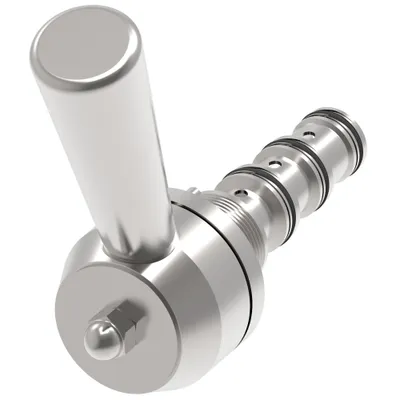

| 02-171135 | MRV6-16-D-0 | 5.000 | 7.000 | 177.800 | 1.875 |
| 02-171119 | — | 6.300 | 3.000 | 76.200 | 1.760 |
| 02-171106 | RV11-12-C-0-50-XXX | 1.250 | 4.760 | 120.904 | 1.250 |
| 02-171058 | PSV2-10-S-0-24-17.5 | 1.000 | 5.150 | 130.810 | 1.000 |

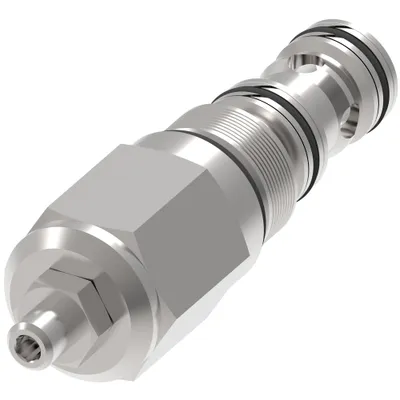

| 02-171044 | DPS2-10-V-S-0-160 | 1.000 | 3.750 | 95.250 | 1.000 |

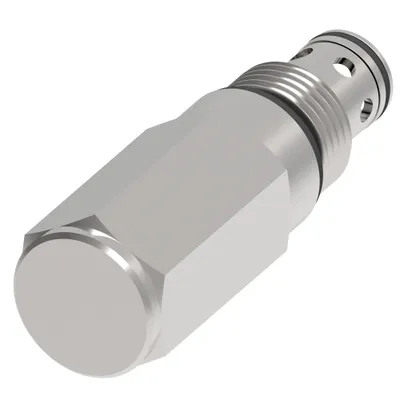

| 02-171025 | RV2-10-F-0-50-36 | 1.000 | 3.330 | 84.582 | 1.000 |

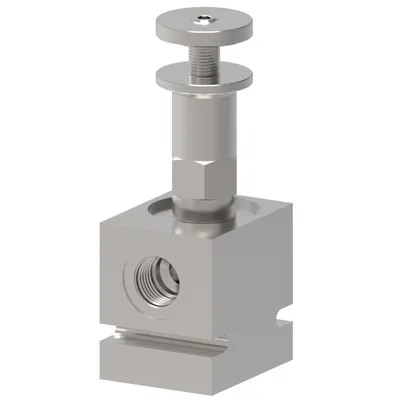

| 02-171020 | PSV3-10-K-6T-4-XXX | 5.590 | 2.970 | 75.438 | 2.000 |

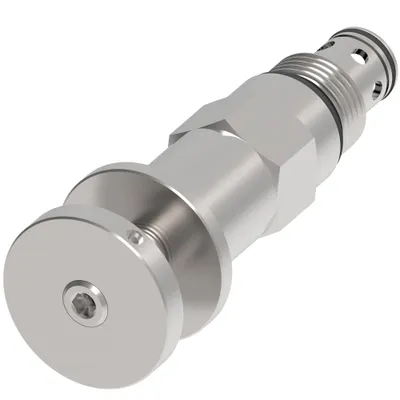

| 02-171006 | RV11-12-K-0-50-X | 1.250 | 4.640 | 117.856 | 1.250 |
| 02-170829 | PSV4-10-C-0-9-XXX | 1.000 | 5.150 | 130.810 | 1.000 |

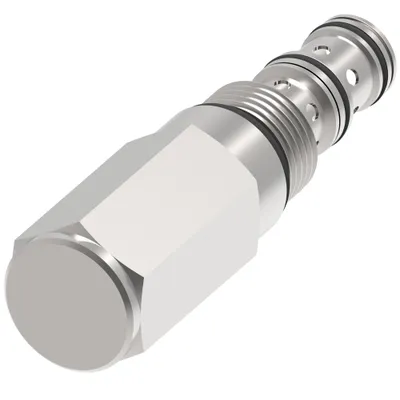

| 02-170799 | PRV1-10-F-0-6-3.5 | 1.000 | 3.890 | 98.806 | 1.000 |

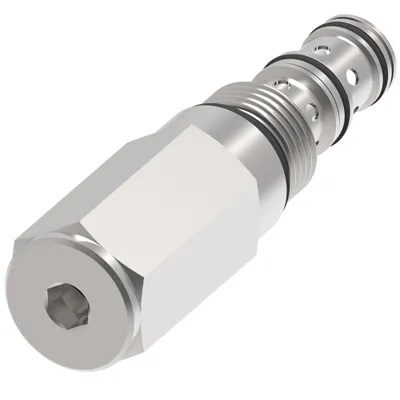

| 02-170789 | PRV1-10-V-I-0-6-XXX | 1.000 | 3.890 | 98.806 | 1.000 |

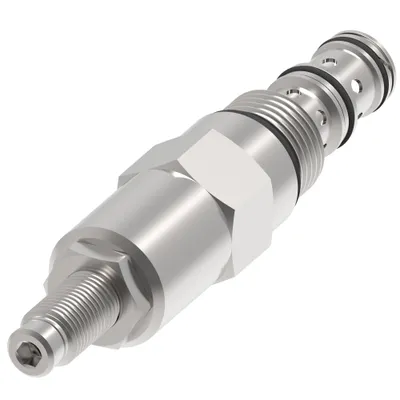

| 02-170773 | PRV12-12-S-0-30-XXX | 1.250 | 5.530 | 140.462 | 1.250 |
| 02-170769 | PRV2-10-C-0-20-15 | 1.000 | 4.960 | 125.984 | 1.000 |
| 02-170721 | PSV1-10-I-0-12-5 | 1.000 | 3.780 | 96.012 | 1.000 |

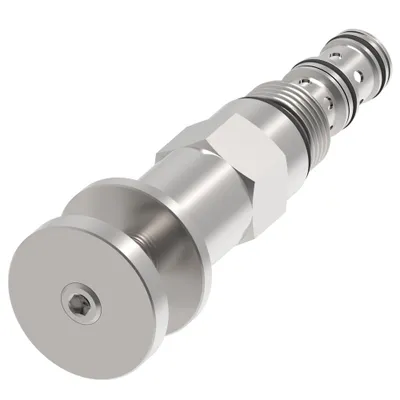

| 02-170717 | PSV1-10-K-0-12-5 | 1.000 | 4.960 | 125.984 | 1.000 |

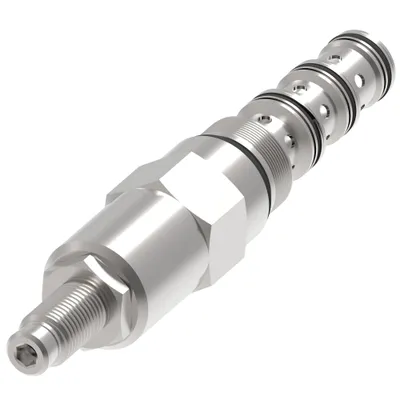

| 02-170701 | PSV10-10-S-0-12-9 | 1.000 | 5.780 | 146.812 | 1.000 |
| 02-170700 | PSV10-10-S-0-24-10 | 1.000 | 5.780 | 146.812 | 1.000 |
| 02-170693 | PSV11-12-S-0-30-XXX | 1.250 | 5.160 | 131.064 | 1.250 |
| 02-170669 | PSV4-10-S-0-5-XXX | 1.000 | 5.150 | 130.810 | 1.000 |

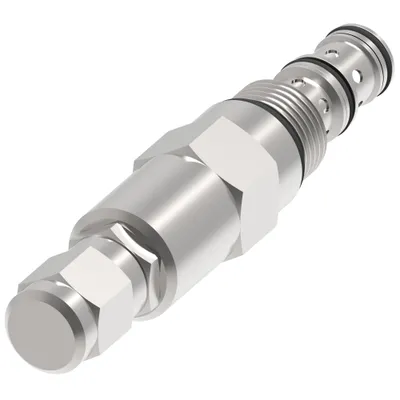

| 02-170667 | PSV5-10-C-0-9-XXX | 1.000 | 5.150 | 130.810 | 1.000 |
| 02-170627 | PRV12-12-K-0-30-XXX | 1.250 | 5.530 | 140.462 | 1.250 |
