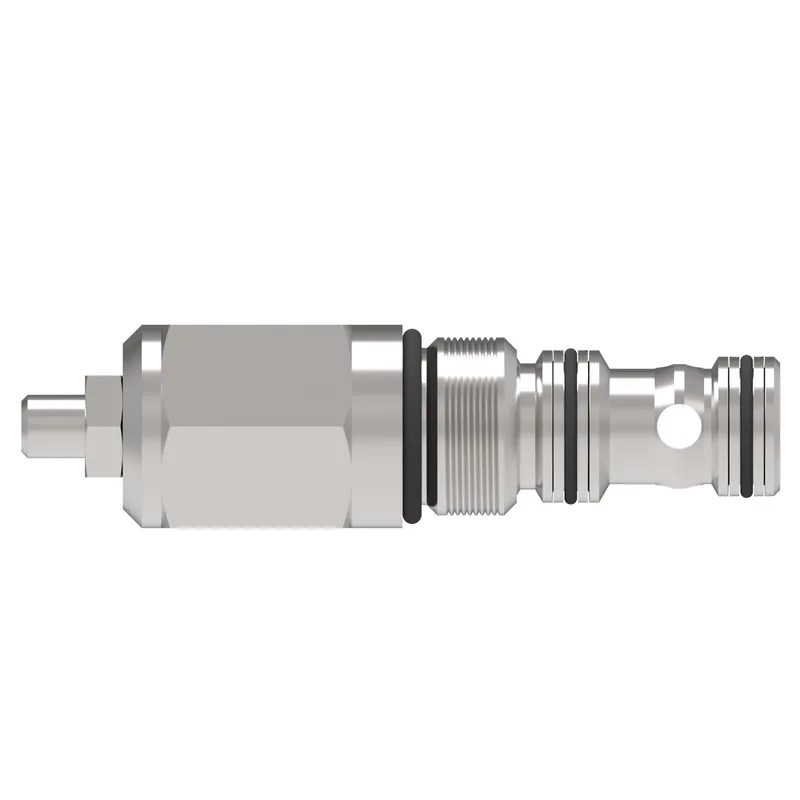

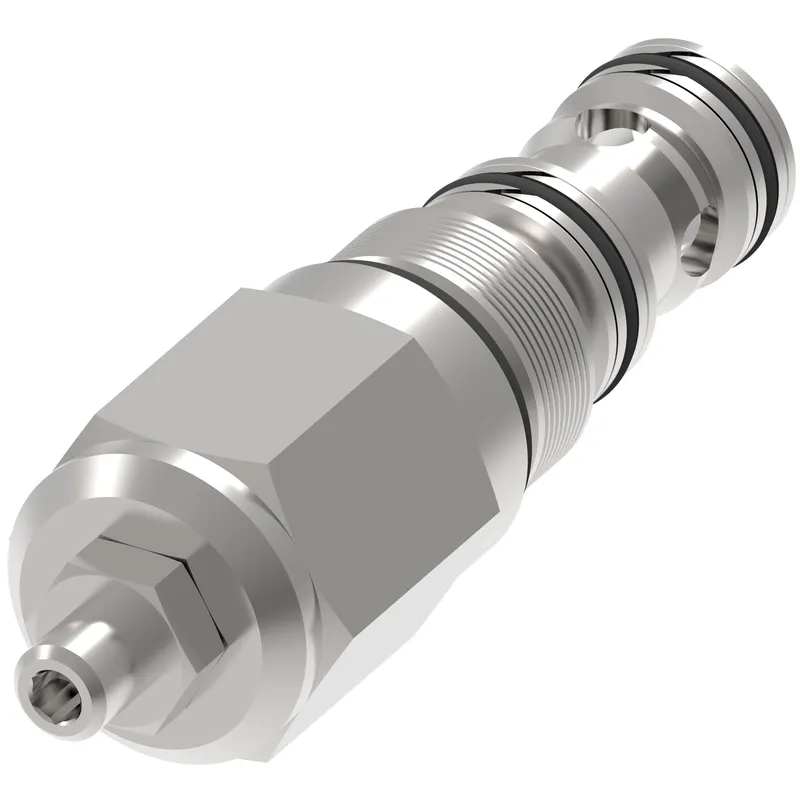

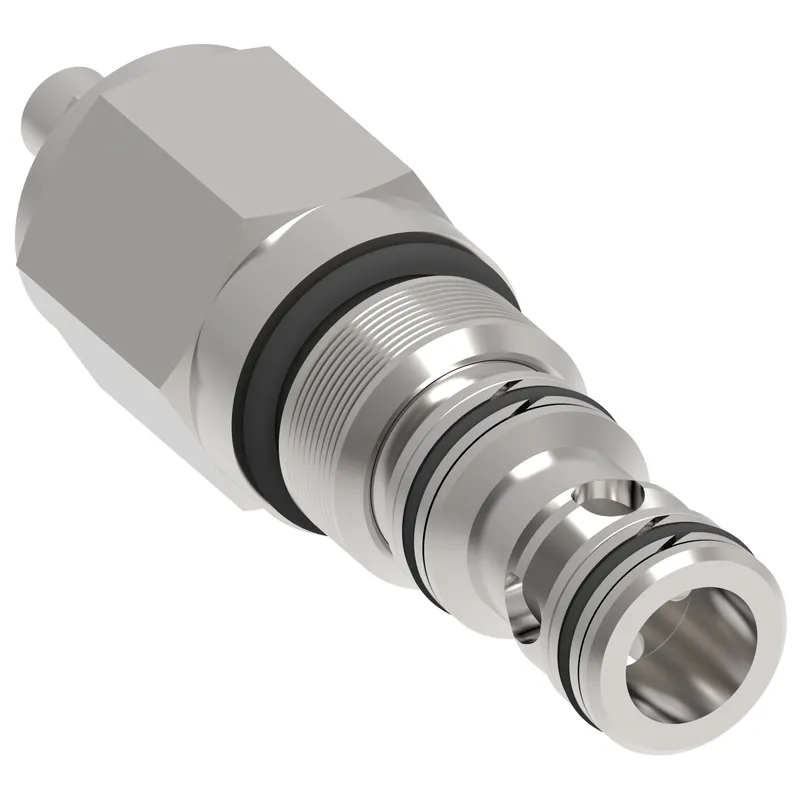

Danfoss 02-171044

DPS2-10-V-S-0-160 DIFF PRESS SENSINGCART, DPS2-10-V-S-0-160

MPN: 02-171044
Category: Cartridge valves

Price and lead time confirmed within 1 business day

Request a Quote

1We check stock, condition and lead time
2You get a written quote by email
3Approve it and we ship — in-stock parts within 1 business day

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
100% positive eBay feedback
Ships via

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 02-171044?

Danfoss DPS2-10-V-S-0-160 DIFF PRESS SENSINGCART, DPS2-10-V-S-0-160, manufacturer part number 02-171044. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Brand	Vickers by Danfoss
Cavity	C-10-3S
Flow rate GPM	16.000
Flow rate LPM	60.00
Fluid compatibility	MIL-H-5606, SAE10, SAE20, etc
Function	Differential Pressure Sensing
Housing	No
Installation type	Screw-in Cartridge
Leakage	246 cc/min
Model Code 1	DPS2-10-V-S-0-160
Normal function	Spool, Normally closed
Number housing ports	3
Number of valve port	3
Operating temp	-40 C to 120 C (-40 to 248 F)
Pilot ratio	1:1
Port type	Cartridge Only
Pressure differential BAR	11.00
Pressure differential PSI	160.00
Pressure rating BAR	290.00
Pressure rating PSI	4200.00
Product height in	1.000
Product height mm	25.400
Product length in	3.750
Product length mm	95.250
Product width in	1.000
Product width mm	25.400 mm
Rec filtration level	18/16/13
Seal type	Buna-N
Special features	None
Spring	160 psi
Stroke adjustment	Screw
Style	Spool
