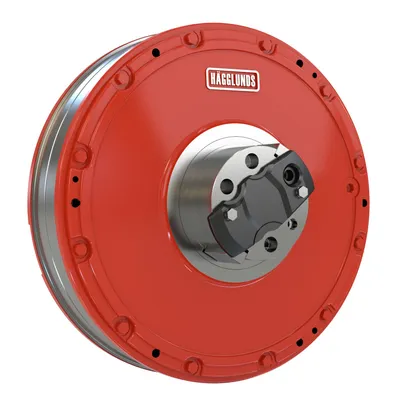

Hägglunds Viking Parts
























Compare Hägglunds Viking
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Displacement [cm³/rev] | Specific Torque [Nm/bar] | Max speed [rpm] | Distributor | Internal displacement shift valve |
|---|---|---|---|---|---|
| R939000036 | 21375 | 340 | 80 | Severe temp-shocks | No valve |
| R939000033 | 21375 | 340 | 80 | Severe temp-shocks | No valve |
| R939000066 | 21375 | 340 | 80 | Normal | 3 position valve (ratio 2:3) |
| R939000064 | 21375 | 340 | 80 | Normal | 3 position valve (ratio 2:3) |
| R939000062 | 21375 | 340 | 80 | Normal | 2-position valve (ratio 2:3) |
| R939000060 | 21375 | 340 | 80 | Normal | 2-position valve (ratio 2:3) |
| R939000050 | 21375 | 340 | 80 | Normal | 3-position valve |
| R939000048 | 21375 | 340 | 80 | Normal | 3-position valve |
| R939000046 | 21375 | 340 | 80 | Normal | 2-position valve |
| R939000044 | 21375 | 340 | 80 | Normal | 2-position valve |
| R939000035 | 21375 | 340 | 80 | Normal | No valve |
| R939000032 | 21375 | 340 | 80 | Normal | No valve |
| R939000081 | 17961 | 286 | 85 | Extremly low speed | No valve |
| R939000078 | 17961 | 286 | 85 | Extremly low speed | No valve |
| R939000111 | 17961 | 286 | 85 | Severe temp-shocks | 3 position valve (ratio 2:3) |
| R939000109 | 17961 | 286 | 85 | Severe temp-shocks | 3 position valve (ratio 2:3) |
| R939000107 | 17961 | 286 | 85 | Severe temp-shocks | 2-position valve (ratio 2:3) |
| R939000105 | 17961 | 286 | 85 | Severe temp-shocks | 2-position valve (ratio 2:3) |
| R939000095 | 17961 | 286 | 85 | Severe temp-shocks | 3-position valve |
| R939000093 | 17961 | 286 | 85 | Severe temp-shocks | 3-position valve |
| R939000091 | 17961 | 286 | 85 | Severe temp-shocks | 2-position valve |
| R939000089 | 17961 | 286 | 85 | Severe temp-shocks | 2-position valve |
| R939000080 | 17961 | 286 | 85 | Severe temp-shocks | No valve |
| R939000077 | 17961 | 286 | 85 | Severe temp-shocks | No valve |
Common to all listed parts
| Product family | Hägglunds Viking |
| Max pressure [bar] | 320 |
| Mounting alternative (rotating part) | Metric |
| Mounitng alternative (stationary part) | Bolt 84-series |
| Direction of rotation | Clockwise/Counter-clockwise |
| Frame size | 84 |
