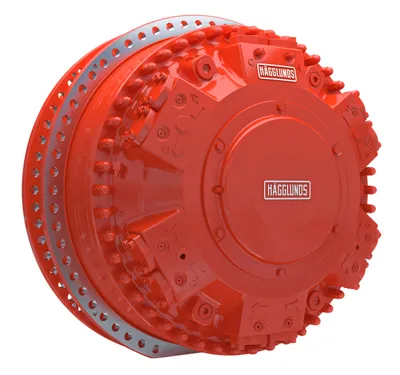

Hägglunds CBm Parts
























Compare Hägglunds CBm
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Displacement [cm³/rev] | Specific Torque [Nm/bar] | Max speed [rpm] | Mounting alternatives, shaft | Weight [kg] |
|---|---|---|---|---|---|
| R939068030 | 138686 | 2200 | 29 | Shrink disc coupling Ø 360 mm | 5500 |
| R939068436 | 138686 | 2200 | 29 | Shrink disc coupling Ø 360 mm | 5400 |
| R939068022 | 138686 | 2200 | 29 | Shrink disc coupling Ø 360 mm | 5500 |
| R939068430 | 138686 | 2200 | 29 | Shrink disc coupling Ø 360 mm | 5400 |
| R939068016 | 138686 | 2200 | 29 | Shrink disc coupling Ø 360 mm | 5500 |
| R939068426 | 138686 | 2200 | 29 | Shrink disc coupling Ø 360 mm | 5400 |
| R939068012 | 138686 | 2200 | 29 | Shrink disc coupling Ø 360 mm | 5500 |
| R939068442 | 138686 | 2200 | 29 | Shrink disc coupling Ø 360 mm | 5400 |
| R939068028 | 138686 | 2200 | 29 | Shrink disc coupling Ø 360 mm | 5500 |
| R939068434 | 138686 | 2200 | 29 | Shrink disc coupling Ø 360 mm | 5400 |
| R939068020 | 138686 | 2200 | 29 | Shrink disc coupling Ø 360 mm | 5500 |
| R939068428 | 138686 | 2200 | 29 | Shrink disc coupling Ø 360 mm | 5400 |
| R939068014 | 138686 | 2200 | 29 | Shrink disc coupling Ø 360 mm | 5500 |
| R939068424 | 138686 | 2200 | 29 | Shrink disc coupling Ø 360 mm | 5400 |
| R939068010 | 138686 | 2200 | 29 | Shrink disc coupling Ø 360 mm | 5500 |
| R939068440 | 138686 | 2200 | 29 | Shrink disc coupling Ø 360 mm | 5400 |
| R939068026 | 138686 | 2200 | 29 | Shrink disc coupling Ø 360 mm | 5500 |
| R939068432 | 138686 | 2200 | 29 | Shrink disc coupling Ø 360 mm | 5400 |
| R939068018 | 138686 | 2200 | 29 | Shrink disc coupling Ø 360 mm | 5500 |
| R939068203 | 126726 | 2000 | 32 | Spline DIN 5480 N | 4075 |
| R939068059 | 126726 | 2000 | 32 | Spline DIN 5480 N | 4075 |
| R939068195 | 126726 | 2000 | 32 | Spline DIN 5480 N | 4075 |
| R939068051 | 126726 | 2000 | 32 | Spline DIN 5480 N | 4075 |
| R939068201 | 126726 | 2000 | 32 | Spline DIN 5480 N | 4075 |
Common to all listed parts
| Product family | Hägglunds CBm |
| Max pressure [bar] | 350 |
| Displacement shift | Motor not prepared for displacement shift |
