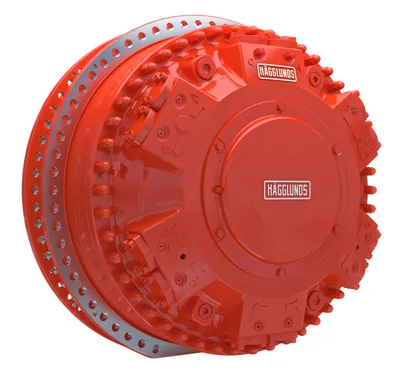

Hägglunds CBm Parts
























Compare Hägglunds CBm
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Displacement [cm³/rev] | Specific Torque [Nm/bar] | Max speed [rpm] | Mounting alternatives, shaft | Weight [kg] |
|---|---|---|---|---|---|
| R939070263 | 151155 | 2400 | 26 | Shrink disc coupling Ø 340 mm | 5350 |
| R939068422 | 151155 | 2400 | 26 | Shrink disc coupling Ø 360 mm | 5400 |
| R939068008 | 151155 | 2400 | 26 | Shrink disc coupling Ø 360 mm | 5500 |
| R939068414 | 151155 | 2400 | 26 | Shrink disc coupling Ø 360 mm | 5400 |
| R939068000 | 151155 | 2400 | 26 | Shrink disc coupling Ø 360 mm | 5500 |
| R939068420 | 151155 | 2400 | 26 | Shrink disc coupling Ø 360 mm | 5400 |
| R939068006 | 151155 | 2400 | 26 | Shrink disc coupling Ø 360 mm | 5500 |
| R939068402 | 151155 | 2400 | 26 | Shrink disc coupling Ø 360 mm | 5400 |
| R939067988 | 151155 | 2400 | 26 | Shrink disc coupling Ø 360 mm | 5500 |
| R939068418 | 151155 | 2400 | 26 | Shrink disc coupling Ø 360 mm | 5400 |
| R939068410 | 151155 | 2400 | 26 | Shrink disc coupling Ø 360 mm | 5400 |
| R939067996 | 151155 | 2400 | 26 | Shrink disc coupling Ø 360 mm | 5500 |
| R939068404 | 151155 | 2400 | 26 | Shrink disc coupling Ø 360 mm | 5400 |
| R939067990 | 151155 | 2400 | 26 | Shrink disc coupling Ø 360 mm | 5500 |
| R939068400 | 151155 | 2400 | 26 | Shrink disc coupling Ø 360 mm | 5400 |
| R939067986 | 151155 | 2400 | 26 | Shrink disc coupling Ø 360 mm | 5500 |
| R939068416 | 151155 | 2400 | 26 | Shrink disc coupling Ø 360 mm | 5400 |
| R939068002 | 151155 | 2400 | 26 | Shrink disc coupling Ø 360 mm | 5500 |
| R939068408 | 151155 | 2400 | 26 | Shrink disc coupling Ø 360 mm | 5400 |
| R939067994 | 151155 | 2400 | 26 | Shrink disc coupling Ø 360 mm | 5500 |
| R939068445 | 138686 | 2200 | 29 | Spline DIN 5480 N | 4971 |
| R939068437 | 138686 | 2200 | 29 | Spline DIN 5480 N | 4971 |
| R939068023 | 138686 | 2200 | 29 | Spline DIN 5480 N | 4971 |
| R939068443 | 138686 | 2200 | 29 | Spline DIN 5480 N | 4971 |
Common to all listed parts
| Product family | Hägglunds CBm |
| Max pressure [bar] | 350 |
| Displacement shift | Motor not prepared for displacement shift |
| Frame size | 3000 |
