Industrial hose and fittings Parts
























Compare Industrial hose and fittings
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | EAN/UPC | Bend radius min (mm) | Length (in) | Outside diameter (inch) | Outside diameter (mm) |
|---|---|---|---|---|---|
| H960316 | 639789267863 | 304.800 | 600.00000 | 1.56 | 39.62 |
| H956816RD | 639789271198 | 304.800 | 600.00000 | 1.55 | 39.37 |
| H956816BK-300 | 639789278708 | 304.800 | 3600.00000 | 1.55 | 39.37 |
| H956816BK-100 | 639789284334 | 304.800 | 1200.00000 | 1.55 | 39.37 |
| H956816BK | 639789265913 | 304.800 | 600.00000 | 1.55 | 39.37 |
| H956812RD-100 | 639789276292 | 241.300 | 1200.00000 | 1.34 | 34.04 |
| H956812RD | 639789263278 | 241.300 | 600.00000 | 1.34 | 34.04 |
| H956812BK-50TW | 639789278487 | 241.300 | 600.00000 | 1.34 | 34.04 |
| H956812BK-100 | 639789278616 | 241.300 | 1200.00000 | 1.34 | 34.04 |
| H956808RD | 639789271181 | 177.800 | 600.00000 | 1.03 | 26.16 |
| H956808BK-100 | 639789278746 | 177.800 | 1200.00000 | 1.03 | 26.16 |
| H956808BK | 639789265890 | 177.800 | 600.00000 | 1.03 | 26.16 |
| H90124-150 | 639789269843 | 254.000 | 1800.00000 | 2.00 | 50.80 |
| H90124-100 | 810903034022 | 254.000 | 1200.00000 | 2.00 | 50.80 |
| H90122-200 | 639789341686 | 243.000 | 2400.00000 | 1.87 | 47.50 |
| H90122-175 | 639789341679 | 243.000 | 2100.00000 | 1.87 | 47.50 |

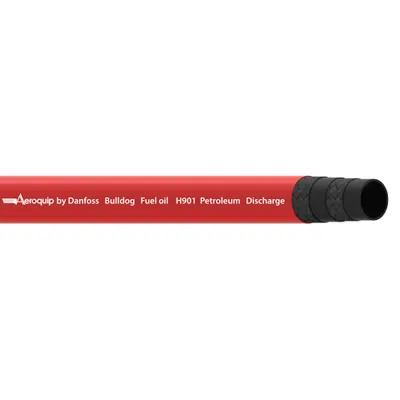

| H90122-150 | 639789269836 | 243.000 | 1800.00000 | 1.87 | 47.50 |
| H90120RD-125 | 639789279200 | 222.300 | 1500.00000 | 1.75 | 44.45 |
| H90120-200 | 815628021203 | 222.300 | 2400.00000 | 1.75 | 44.45 |
| H90120-175 | — | 222.300 | 2100.00000 | 1.75 | 44.45 |
| H90120-150 | 639789269829 | 222.300 | 1800.00000 | 1.75 | 44.45 |
| H90120-100 | 810903034015 | 222.300 | 1200.00000 | 1.75 | 44.45 |
| H90116-300R | 810903031694 | 184.200 | 3600.00000 | 1.44 | 36.58 |
Common to all listed parts
| Abrasion resistance | Standard |
| Compliances | ASTM D380 |
| Working pressure max (bar) | 17 |
| Working pressure max (psi) | 250 |
| Working temperature min (C) | -40 |
| Working temperature min (F) | -40.0 |
